Today’s market rewards convenience—but rugged notebooks have long struggled to balance portability with industrial-grade capability. Size constraints have often compromised performance, usability, or both. Emdoor Information’s new EM-X33 redefines that trade-off: a lightweight, thin-profile rugged notebook engineered for real-world industrial demands. Let’s explore how it delivers.
Industrial grade metal body

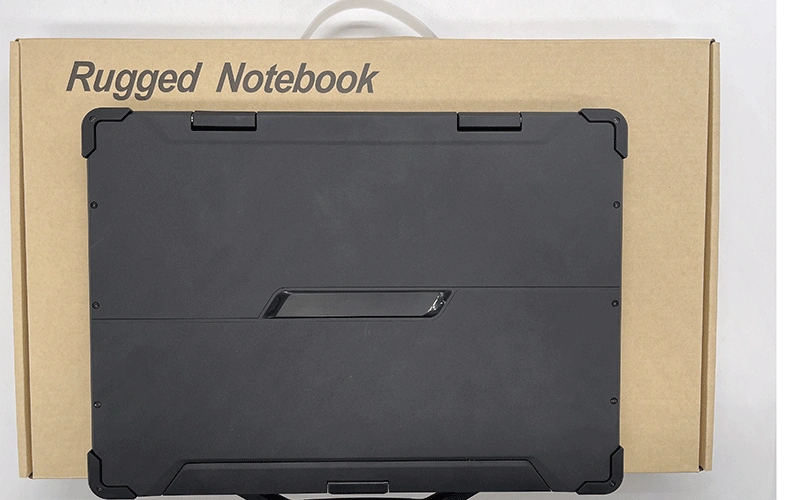

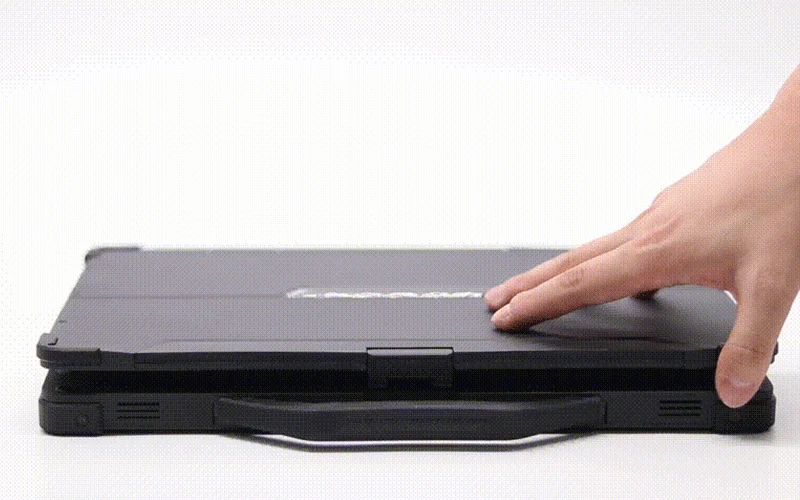

Its chassis features magnesium alloy on all four sides—lightweight yet exceptionally strong—finished with a high-grade matte texture achieved through multi-stage processing. The centered, parallel-staggered brand logo enhances visual cohesion, while integrated protective pads, a robust front lock, precision-aligned rear shaft, and ergonomic front handle eliminate visual clutter. At just 2.1kg and 26mm thick, the EM-X33 sheds bulk without sacrificing structural integrity or industrial presence.

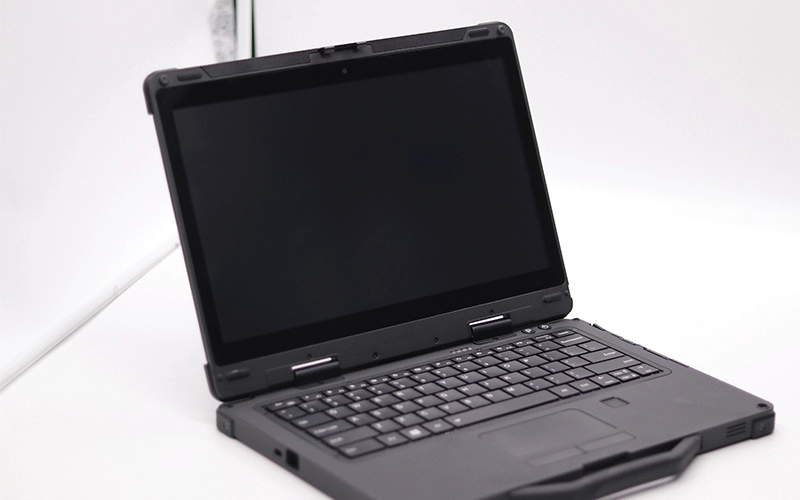

The 13.3-inch 16:9 full HD display delivers 400 nits brightness and 10-point capacitive touch, complemented by a physical privacy shutter for the webcam. A full-size backlit keyboard—color-matched to the chassis—and a large, responsive touchpad enhance daily interaction. Security is streamlined via a push-type fingerprint module that supports one-touch system wake and login.

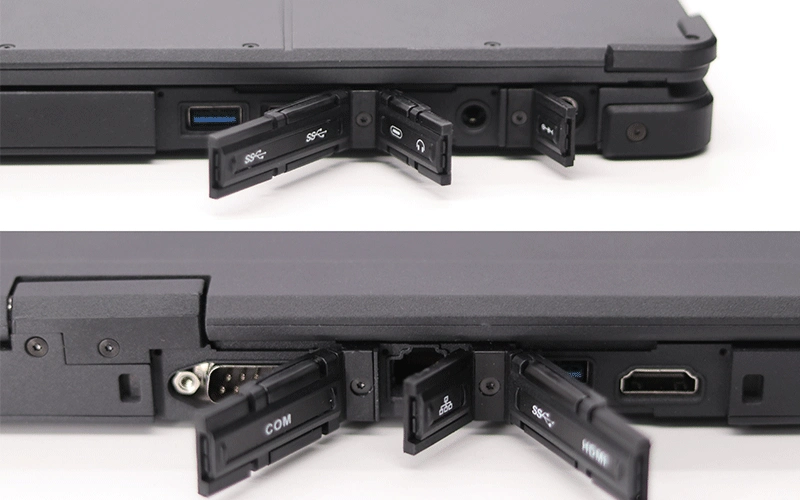

EM-X33 integrates an uncommon breadth of I/O in its slim form: right-side ports include USB 3.0, Thunderbolt 4, a 3.5mm audio jack, and circular power input; the rear adds RS232, Gigabit Ethernet (RJ45), USB 3.0, and HDMI. Both Thunderbolt 4 and HDMI support up to 8K video output—rare for a device of this class and size.
Intimate user experience

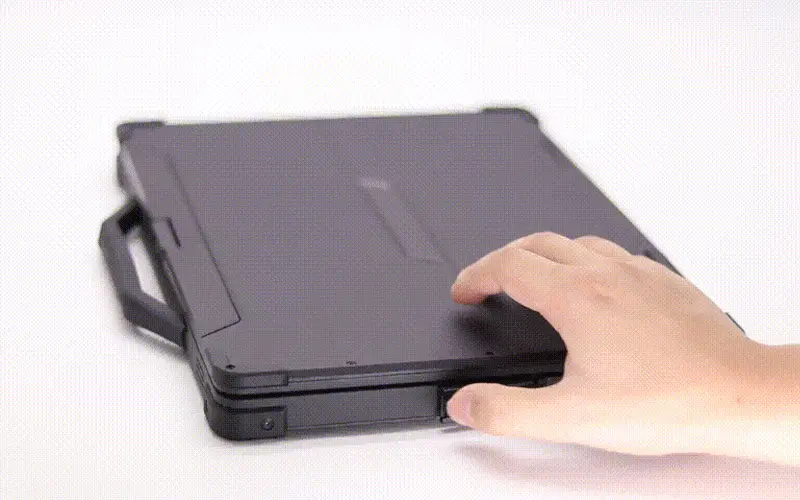

Thoughtful ergonomics define the user experience: precisely tuned hinge damping enables smooth, one-handed screen opening and a full 180-degree flip. The backlit keyboard activates instantly with a single keypress—adapting seamlessly to low-light environments. Touch the fingerprint sensor, and the system wakes directly to the login interface, then logs in automatically.
Gone is the traditional recessed interface design. Instead, EM-X33 uses a push-pull fixed buckle coupling: a light press releases the port cover cleanly and reliably.

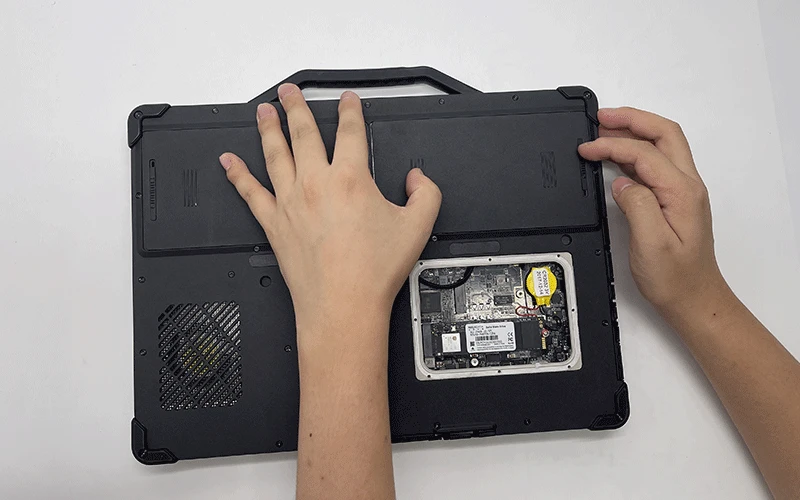

Power endurance is addressed with dual 31Wh batteries—totaling 62Wh—for up to 8–10 hours of continuous operation. The battery cover now features a spring-loaded rebound mechanism for faster, more intuitive access. A serviceable rear panel reveals an M.2 2280 SSD slot (256GB preinstalled) and a second exposed M.2 interface—ready for optional 4G/LTE module expansion.
Perfect hardware configuration

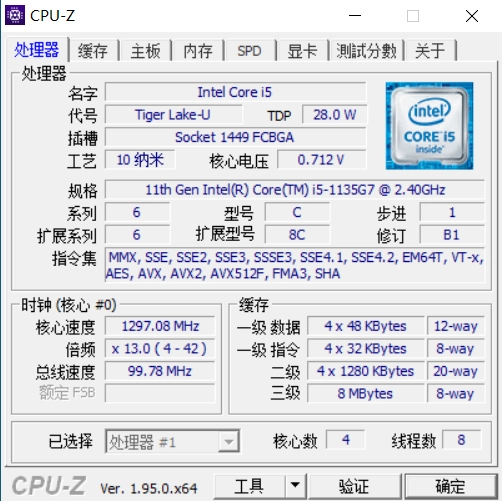

CPU-Z confirms the EM-X33 is powered by Intel’s 11th-gen Tiger Lake i5-1135G7: 4 cores / 8 threads, base frequency 2.4GHz, turbo up to 4.2GHz, 28W TDP, 10nm process, and 8MB L3 cache—setting a new performance benchmark for rugged notebooks. Crucially, CPU performance remains stable whether running on battery or AC power, with battery-mode degradation capped at under 10%.

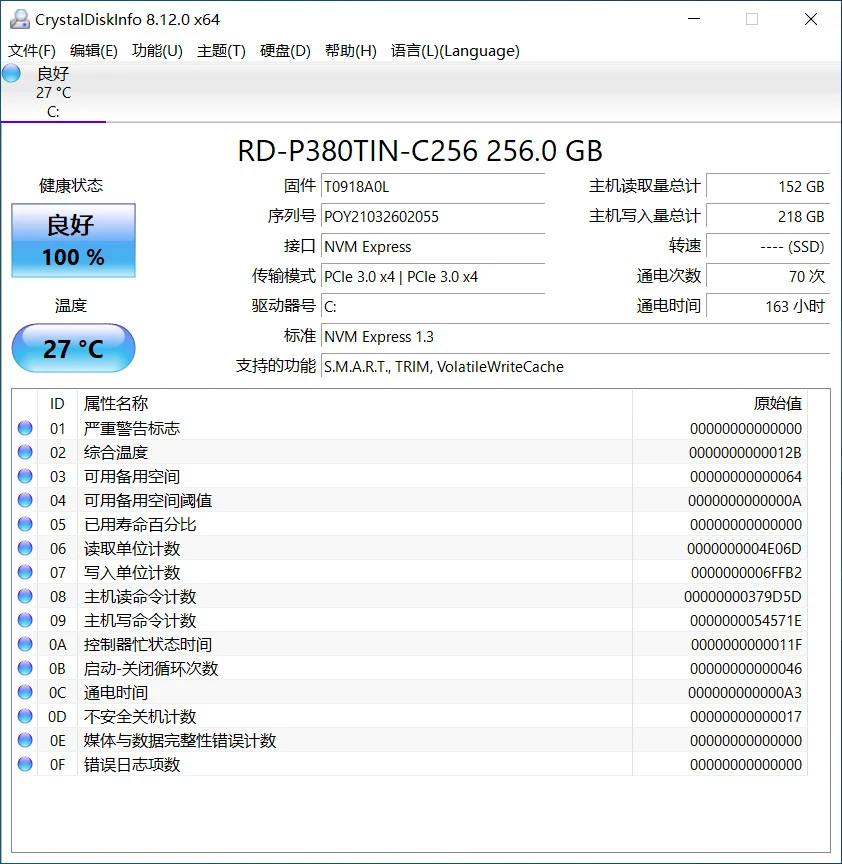

CrystalDiskInfo and AIDA64 verify a PCIe 3.0×4 NVMe 256GB M.2 SSD and onboard 8GB quad-channel LPDDR4-4266 memory—delivering high-bandwidth, low-latency storage and memory subsystems.

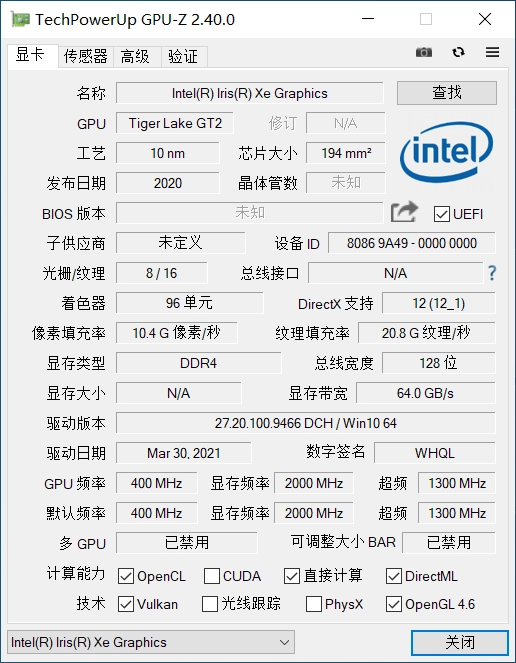

Graphics are handled by Intel Iris Xe with 96 EUs, base clock 400MHz, and dynamic boost up to 1300MHz—surpassing many entry-level discrete GPUs in real-world productivity and media workloads.
Prove efficient productivity with strength
CineBench R15 benchmarks confirm the CPU’s capabilities: 198 cb (single-core) and 928 cb (multi-core). In GPU testing via 3DMark Fire Strike, EM-X33 scored over 4000 points—validating its ability to handle ultra-HD video playback, light 3D modeling, and graphics-intensive applications reliably.

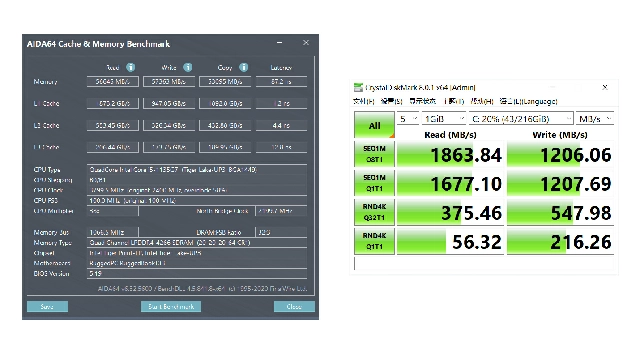

Storage performance is equally compelling: sustained SSD read speeds hit 1863.84 MB/s and writes reach 1206.06 MB/s. Memory latency measures just 87.2 ns—indicating tight timing control and responsiveness.
PCMark10 simulates real-world workflows—including video conferencing, web browsing, document editing, spreadsheet use, and photo/video tasks—yielding a score of 2520. This reflects consistent, lag-free performance across everyday professional scenarios.
In summary, the EM-X33 is Emdoor’s new flagship rugged notebook: internally robust, externally refined, lighter and thinner than most competitors—and uncompromising in performance. For field engineers, logistics teams, public safety personnel, and other industrial users, it represents a compelling convergence of durability, mobility, and modern computing power.
