EM-V80J (Linux) 8 Inch Rugged Vehicle PC Linux

4.5 / 150 Reviews

Categories ,

Overview

Emdoor’s Vehicle PC V80J Equipped with Intel JASPER LAKE N5100, Ubuntu OS, 8-inch 700-Nits screen, dual-band Wi-Fi, 4G LTE.
  • CPU: Intel JASPER LAKE N5100
  • GPU: Intel® HD Graphics Gen 11 LP
  • Operating system: Ubuntu22.04.4
  • Resolution: 800*1280
  • Screen size: 8 inches

Certifications & protection

CECEFCCFCCCCCCCCIP65
Get a quoteContact Us
Facebook-f Youtube Linkedin-in X-twitter

Additional information

Dimensions

218.1*154.5*23.0 mm

Machine weight

631g

Machine color

Black

Display

10.1 inch LCD 16:10 , resolution: 800*1280, 700nits

Touch screen

5-point tempered glass capacitive screen G+G

Camera

/

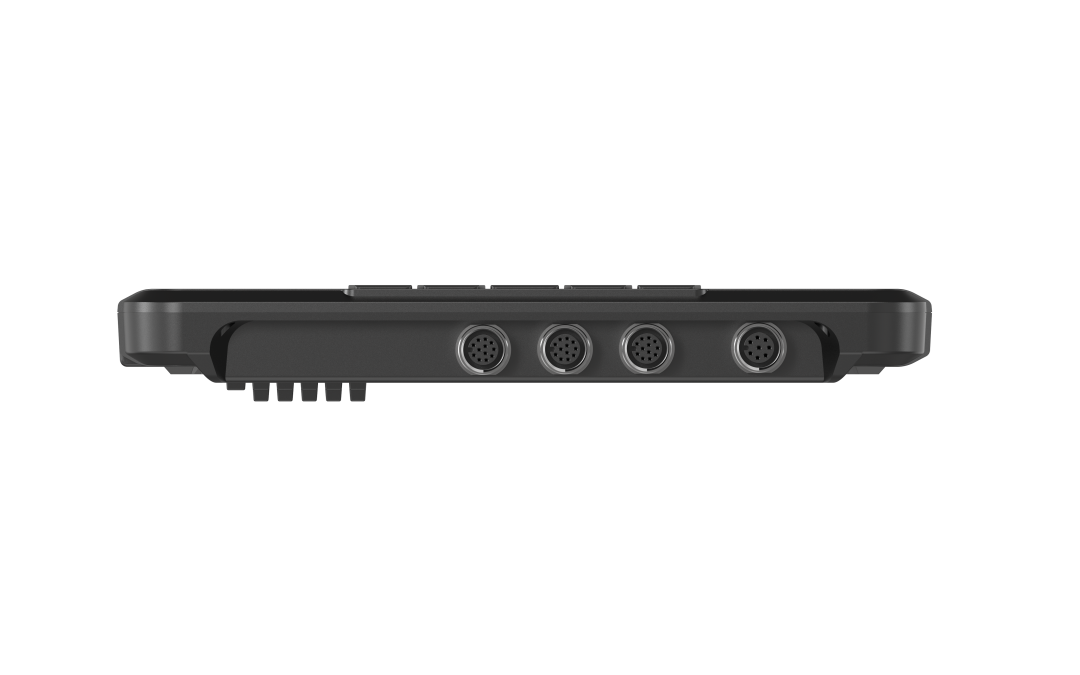

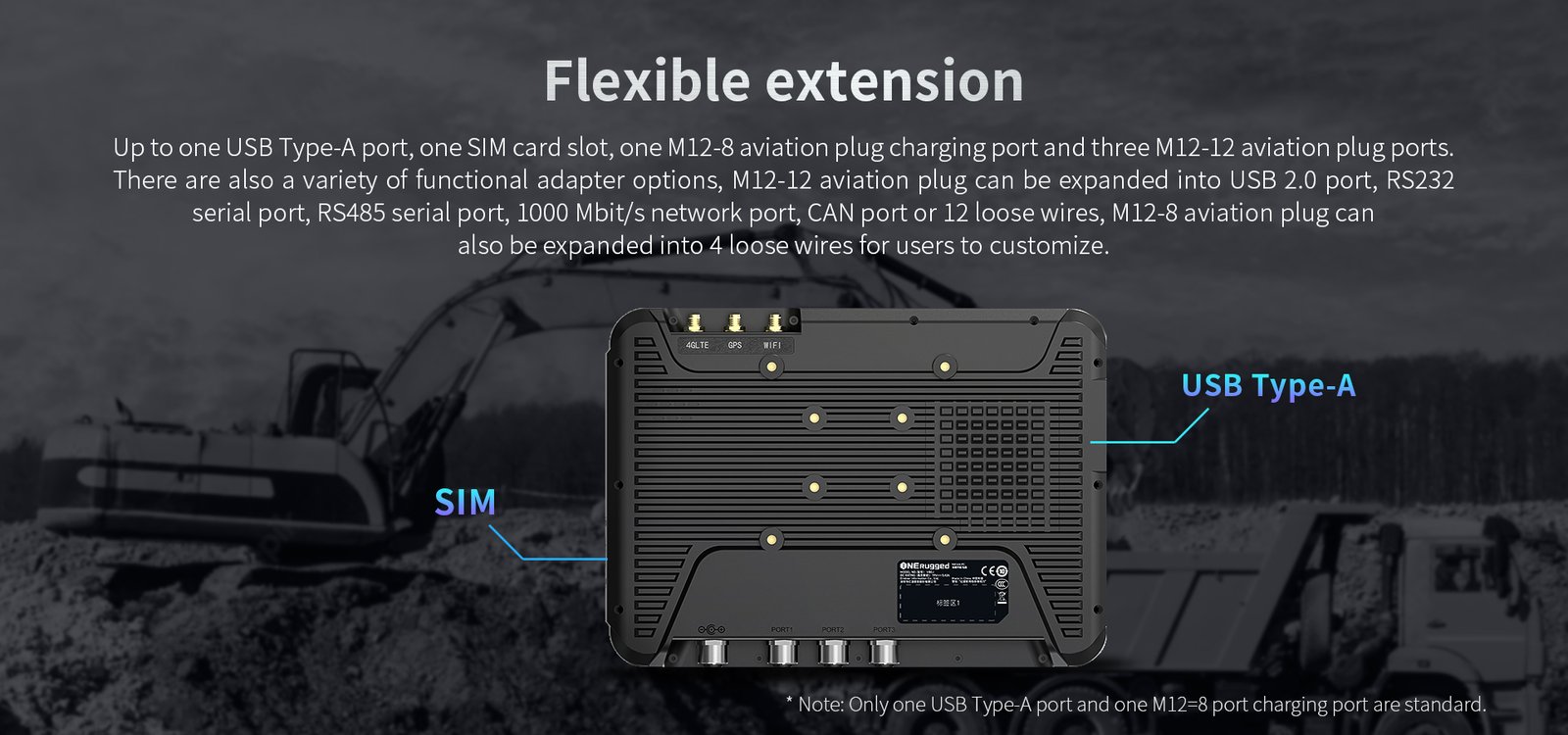

I/O Interface

SIM card slot (optional) Nano-SIM *1
USB 3.0 *1, USB A port
DC input (Input: 11~24V)
1000M network interface
RS232 *1+RS232/RS485 *1，9PIN
DB9 full function serial port RS232
USB 2.0 *1+USB 2.0 (Default) / CAN*1+CVBS*1
USB2.0 standard interface *2;
Optional CAN for customer debugging

Power adapter

19V 3.42A Cigarette Lighter Adapter
19V 3.42A DC φ5.5 power adapter

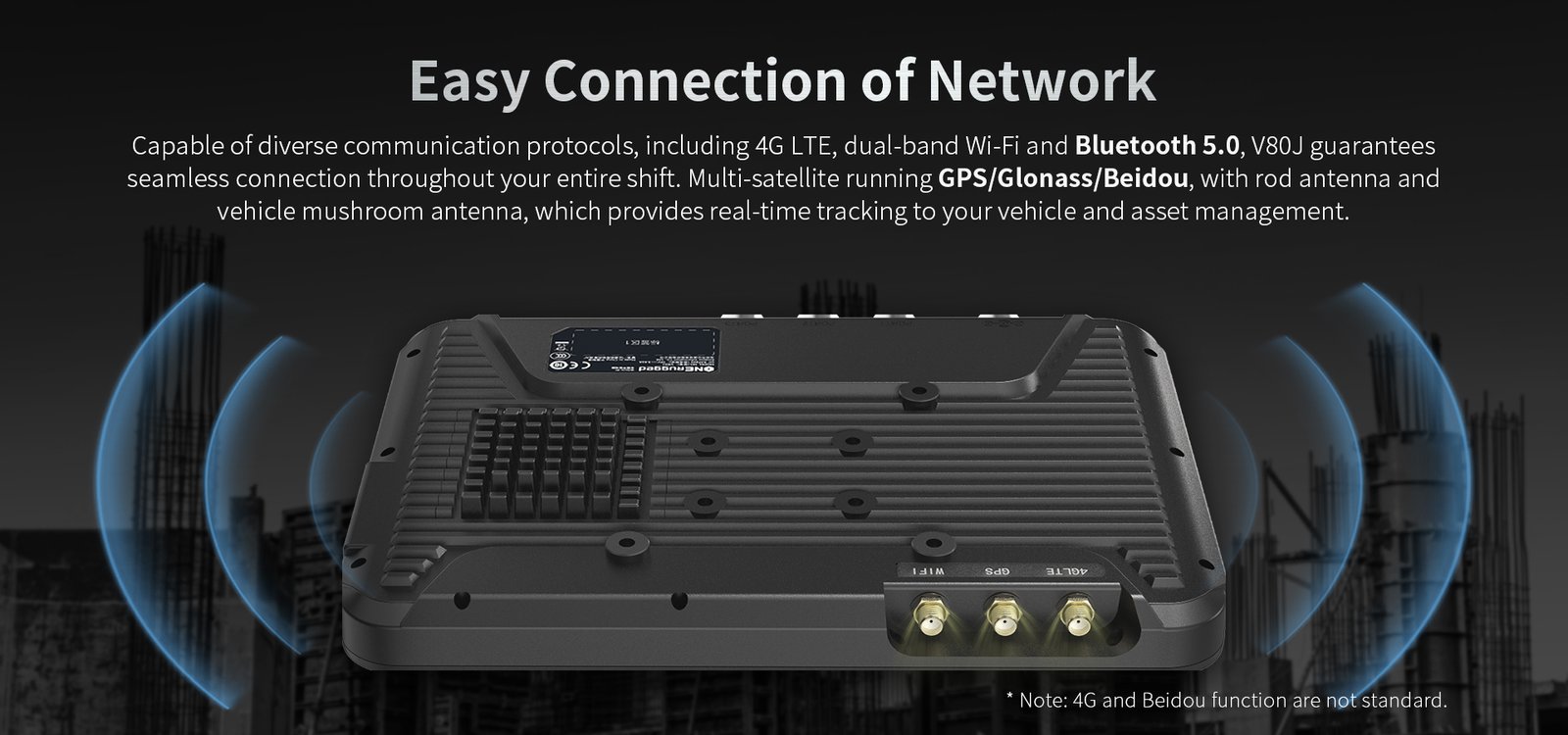

WIFI

WIFI 802.11(a/b/g/n/ac),Dual frequency 2.4G+5.8G

Bluetooth

BT5.0 (BLE) class1

2G/3G/4G/5G

4G

GNSS

GPS/GLONASS
Optional, Huada Beidou/Ublox M8Q

CPU

Intel JASPER LAKE N5100 Max 2.8GHz

GPU

Intel® HD Graphics Gen 11 LP

Operating system

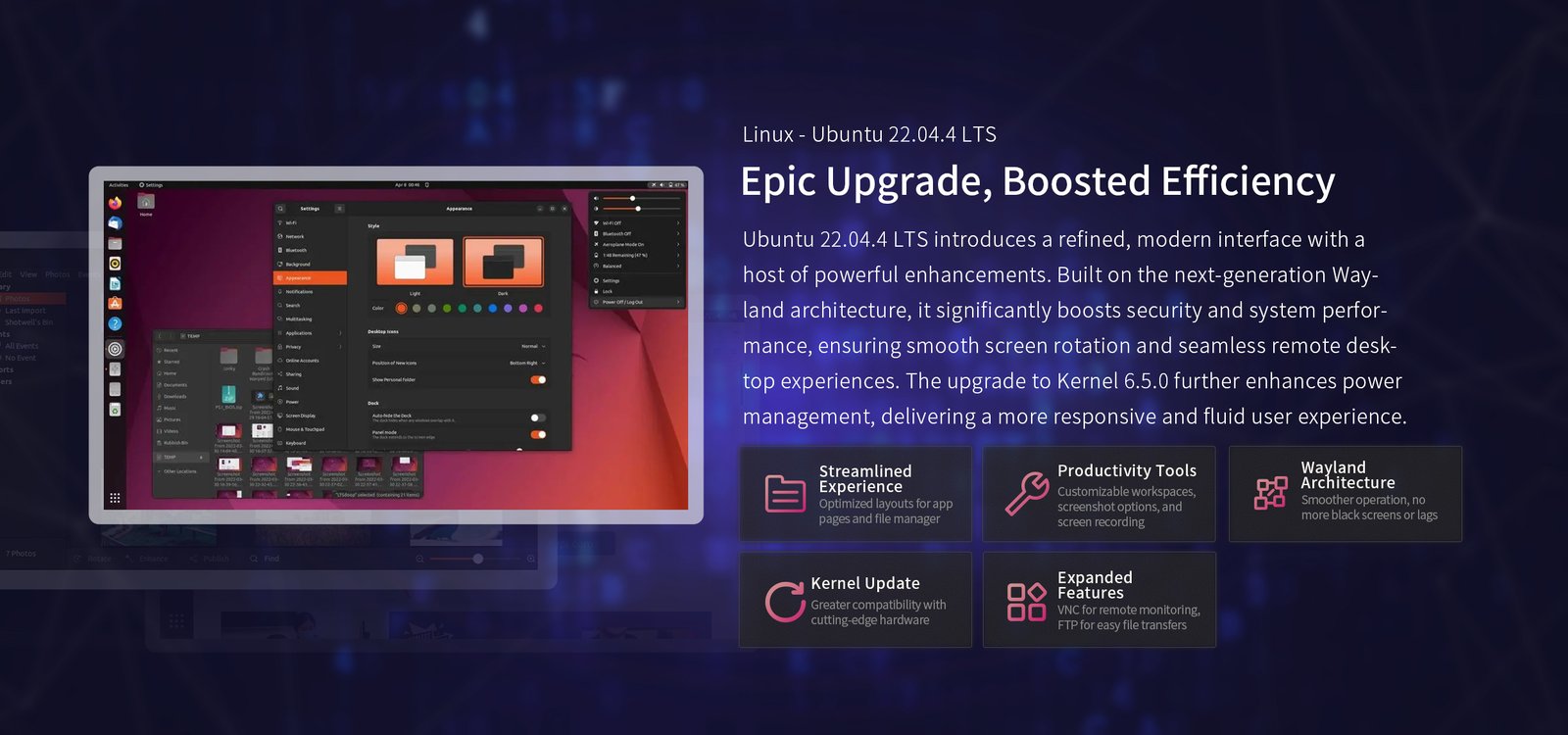

Ubuntu22.04.4

Memory

8GB

Storage capacity

128GB

Battery

Optional-1000mAh/7.4V/Built in polymer lithium ion battery

NFC

No

1D/2D

No

Fingerprint

No

Operating temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity

95% Non-Condensing

Protection level

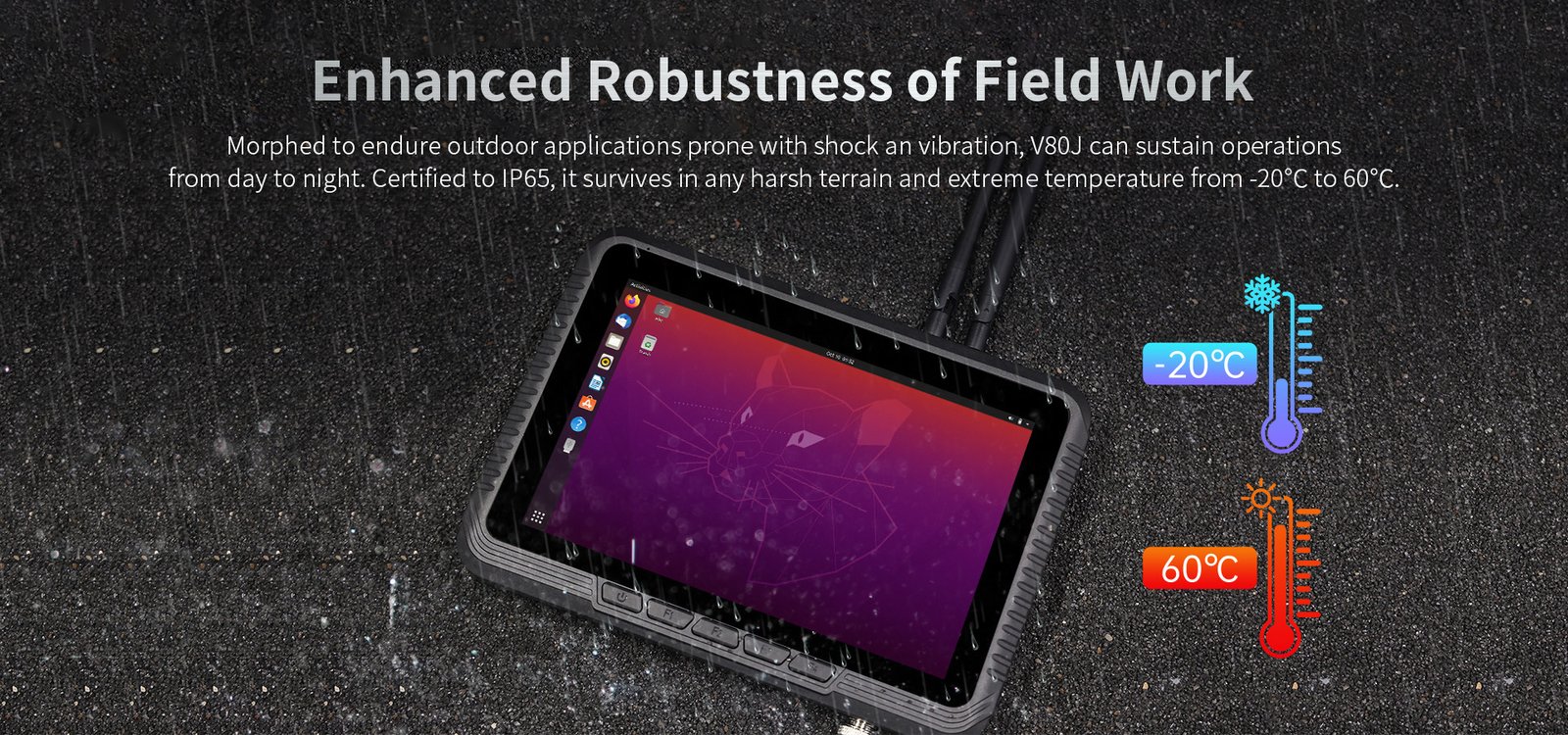

IP65 certified

Drop height

1.22m drop resistance

Description

View EM-V80J (Linux) accessories ↓

Industrial interface panel with multiple USB, HDMI, and Ethernet ports for high flexibility and expansion in industrial settings. Emdoor IPC Panel PC P10R with high-resolution display and industrial design for rugged applications. Emdoor IPC Panel PC P10R with high-resolution display and industrial design for rugged applications. Emdoor IPC Panel PC P10R with high-resolution display and industrial design for rugged applications. Emdoor IPC Panel PC P10R with high-resolution display and industrial design for rugged applications. Emdoor IPC Panel PC P10R with high-resolution display and industrial design for rugged applications. Emdoor IPC Panel PC P10R with high-resolution display and industrial design for rugged applications. Emdoor IPC Panel PC P10R with high-resolution display and industrial design for rugged applications. Emdoor IPC Panel PC P21J with a sleek design and vibrant display, ideal for industrial and commercial applications.

EM-V80J (Linux) / ACCESSORIES

Equip your vehicle installation.

Choose the power, connectivity and mounting accessories listed for this model. Standard and optional items are shown separately to help you plan your installation.

Standard accessories

EM-V80J (Linux) Wi-Fi external antenna

Standard

Wi-Fi external antenna

EM-V80J (Linux) GNSS vehicle antenna

Standard

GNSS vehicle antenna

EM-V80J (Linux) Power adapter cable

Standard

Power adapter cable

Optional accessories

EM-V80J (Linux) 4G external antenna

Optional

4G external antenna

EM-V80J (Linux) Cigarette lighter adapter

Optional

Cigarette lighter adapter

EM-V80J (Linux) Power adapter

Optional

Power adapter

EM-V80J (Linux) 12PIN to USB 2.0 *2+USB 2.0*1（Default）/CAN*1

Optional

12PIN to USB 2.0 *2+USB 2.0*1（Default）/CAN*1

EM-V80J (Linux) 12PIN to 1000M RJ45

Optional

12PIN to 1000M RJ45

EM-V80J (Linux) Wide voltage module

Optional

Wide voltage module

EM-V80J (Linux) GPS external antenna

Optional

GPS external antenna

Build your accessory kit with our team.

Confirm connector type, power rating, mounting requirements and accessory availability for your selected configuration.

Discuss your EM-V80J (Linux) configuration →
