EM-V10J Intel Celeron N5100 10.1 Inch Windows 11 Vehicle

Additional information

Dimensions	264.5184.123.0 mm
Machine weight	834g
Machine color	Black
Display	10.1-inch HD 16:10, resolution 800×1280, 1000nits
Touch screen	5 points Capacitive
Camera	/

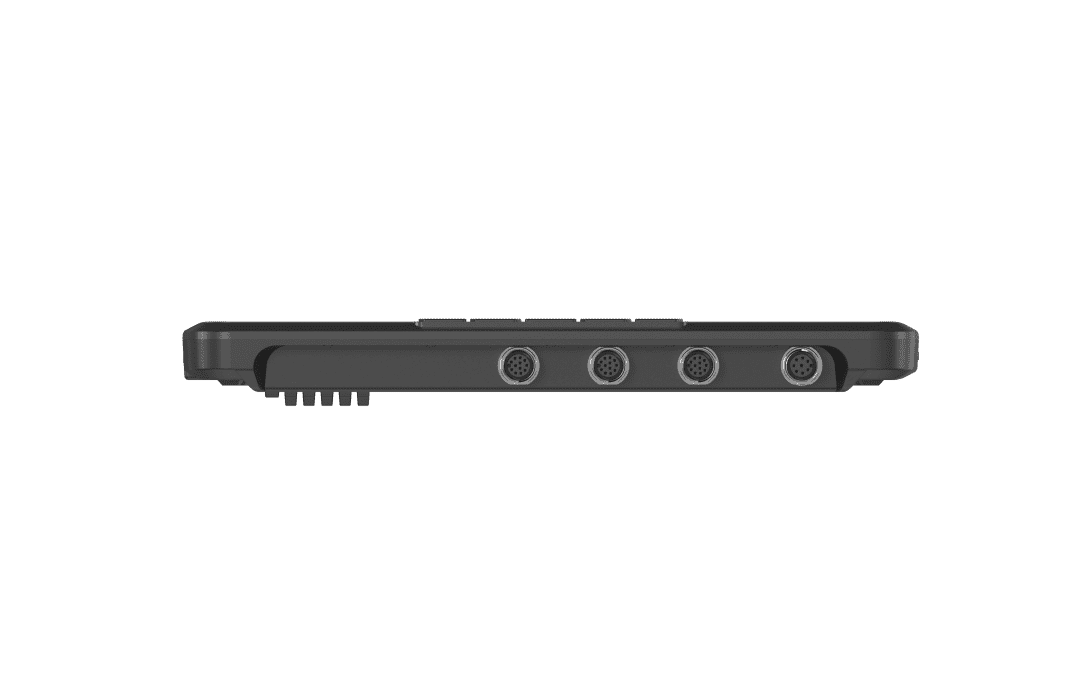

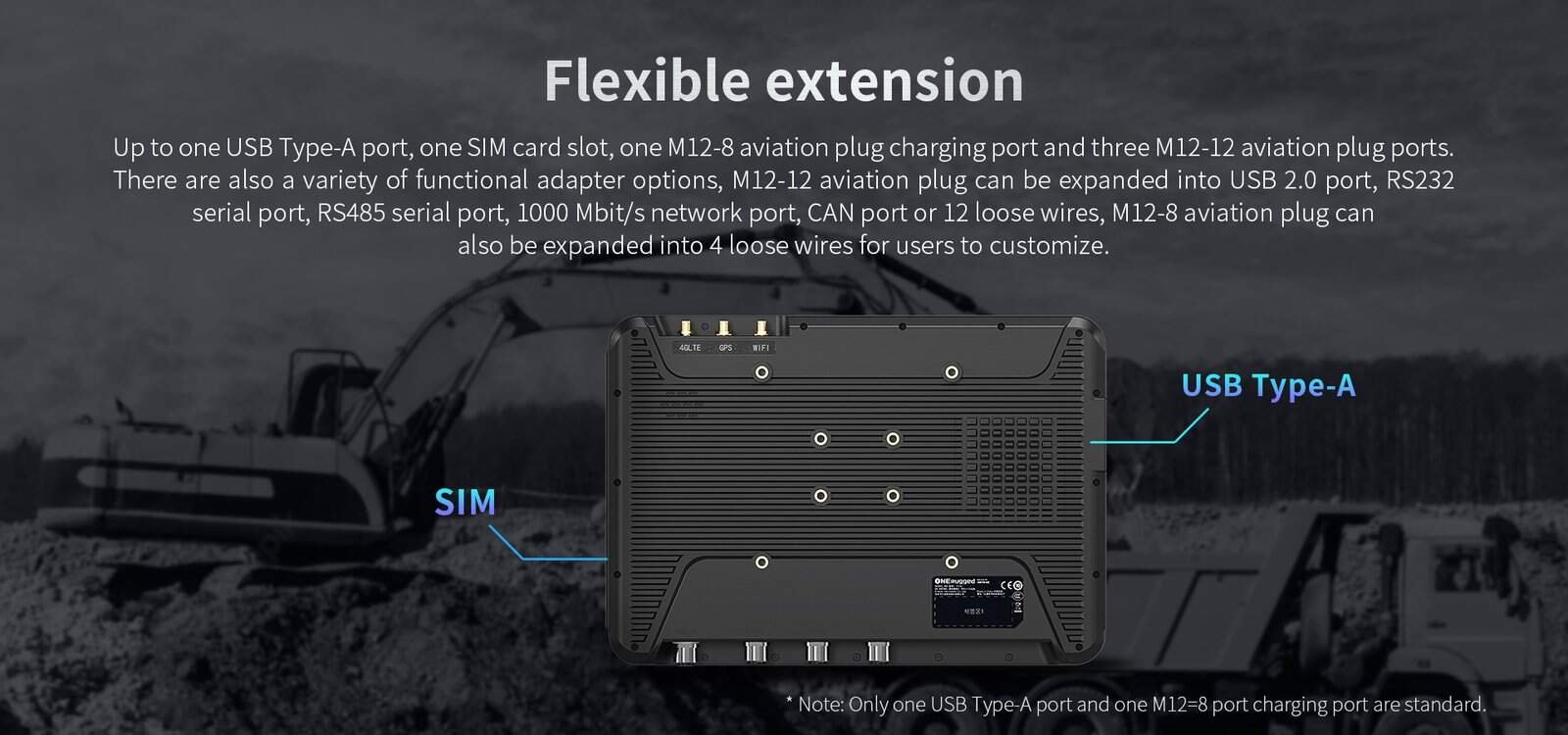

I/O Interface	SIM card slot (optional) Standard USB-A port DC input (Input: 11~24V), PORT1 (M12-12) (optional) 1000M network interface PORT2 (M12-12) (optional) RS232 1+RS232/RS485 1， PORT3 (M12-12) (optional) USB 2.0 2+USB 2.0 (Default) / CAN1 USB2.0 standard interface *2; Optional CAN for customer
Power adapter	12V4A DC φ5.5 power adapter 19V 3.42A Cigarette Lighter Adapter
WIFI	WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G
Bluetooth	BT5.0 (BLE) class1 Transmited distance: 10m
2G/3G/4G/5G	4G(Optional)
GNSS	Built in, Ublox 7 supports GPS, GLONASS
CPU	Intel JASPER LAKE N5100
GPU	Intel® HD Graphics Gen 11 LP
Operating system	Windows 11 Home
Memory	8GB
Storage capacity	128GB
Battery	1000mAh/7.4V / Built in polymer lithium ion battery
NFC	Optional
1D	No
2D	No
Fingerprint	No
Operating temperature	-20℃~60℃
Storage temperature	-30℃~70℃
Humidity	95%, no condensation
Protection level	IP65 certified
Drop height	1.22m drop resistance

Description

Overview

The EM-V10J is a 10.1-inch rugged Windows 10 vehicle PC designed for in-vehicle applications. Powered by the Intel® Celeron® N5100, it delivers reliable performance, vibrant visuals, and robust connectivity for fleet management, logistics, and field operations.

Key Features

Powerful Processing: Intel® Celeron® N5100 (quad-core) with Intel® HD Graphics Gen 11 LP, 8GB RAM + 128GB storage for efficient in-vehicle computing.
Sunlight-Readable Display: 10.1″ IPS (800×1280, 1000 nits) with multi-point touch and custom shortcut buttons for enhanced productivity.

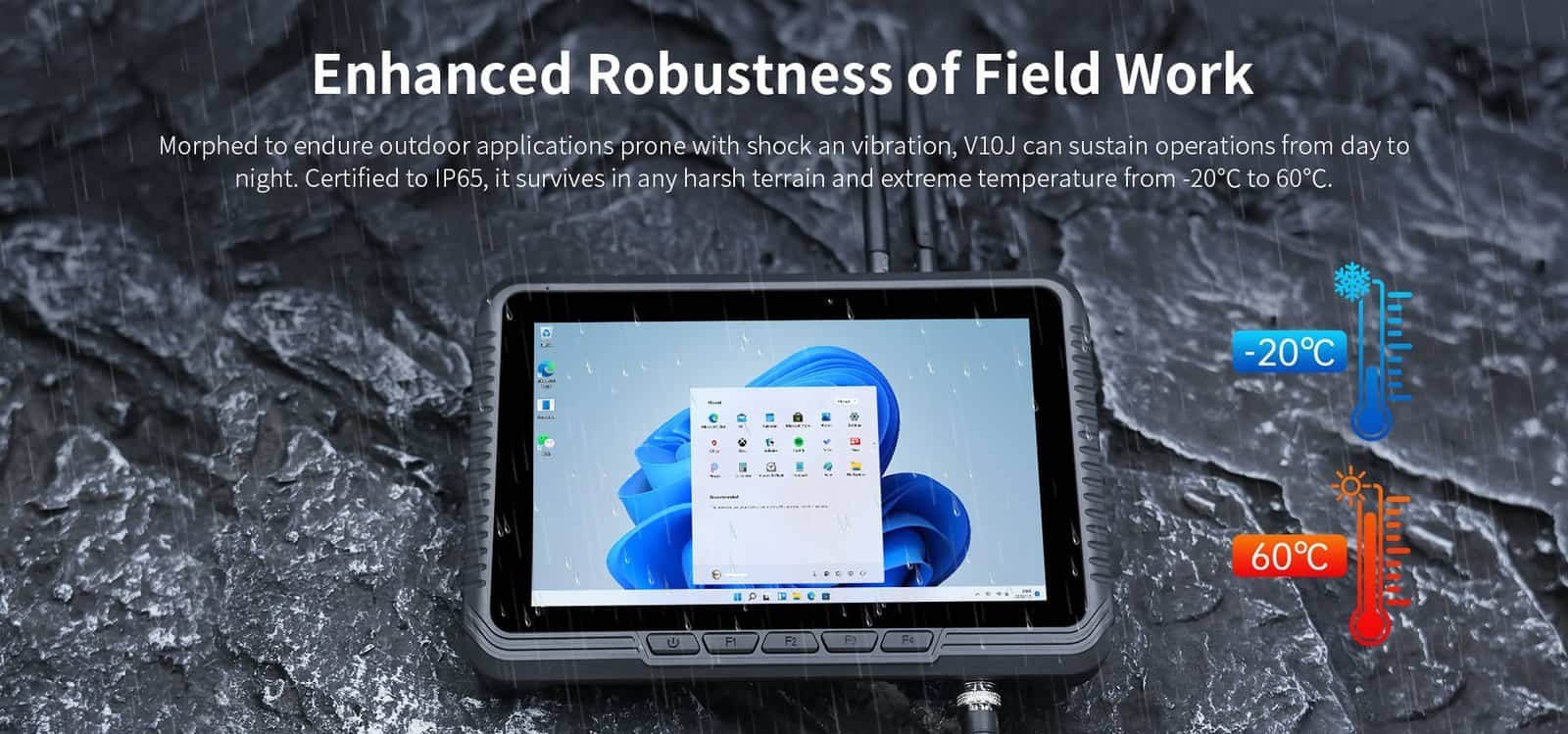

Rugged Design: IP65-rated, shock/vibration-resistant, operates from -20°C to 60°C for 24/7 reliability.

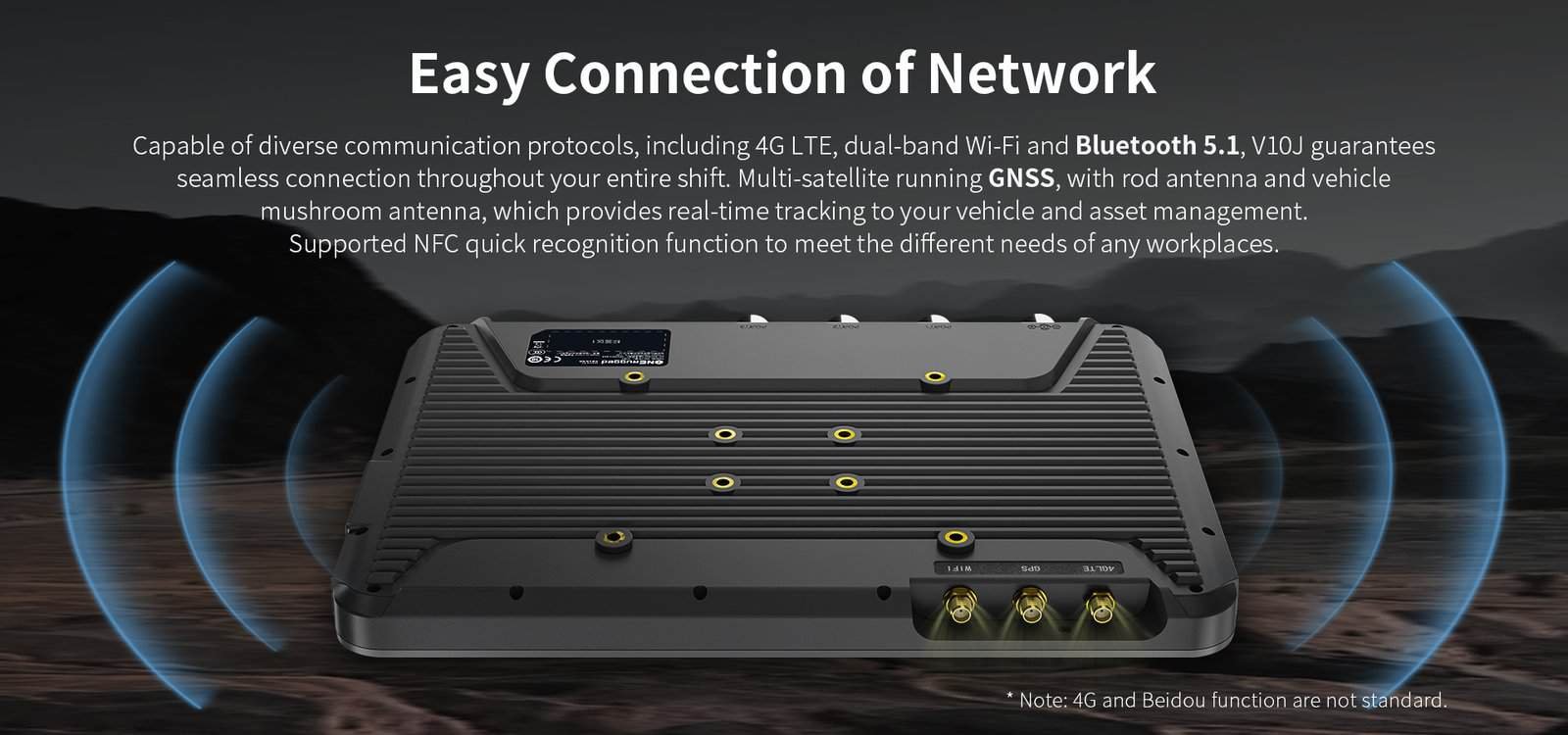

Robust Connectivity: 4G LTE, dual-band Wi-Fi, Bluetooth 5.1, GNSS (GPS/GLONASS/Beidou), NFC, with expandable I/O (USB, RS232, RS485, CAN, Ethernet).

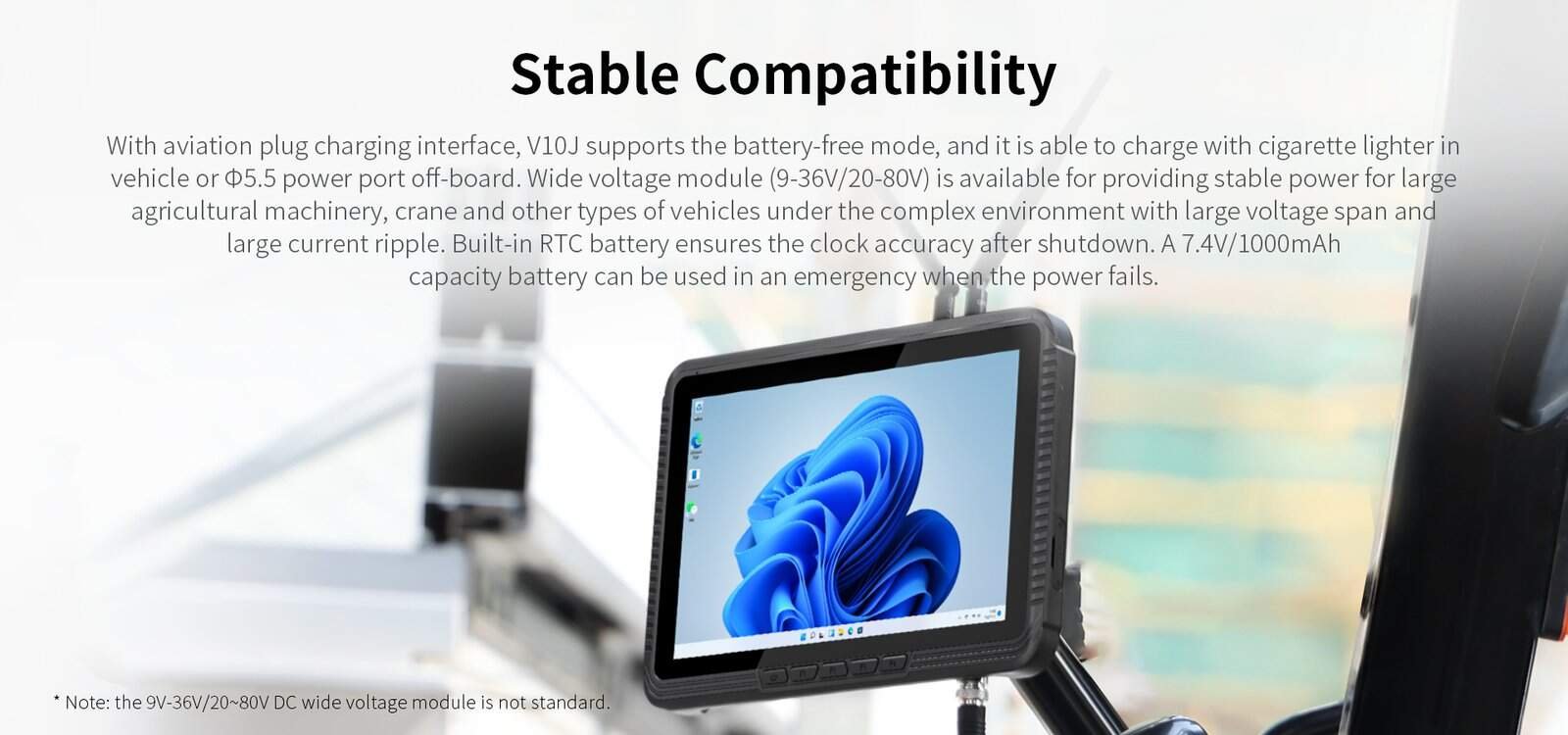

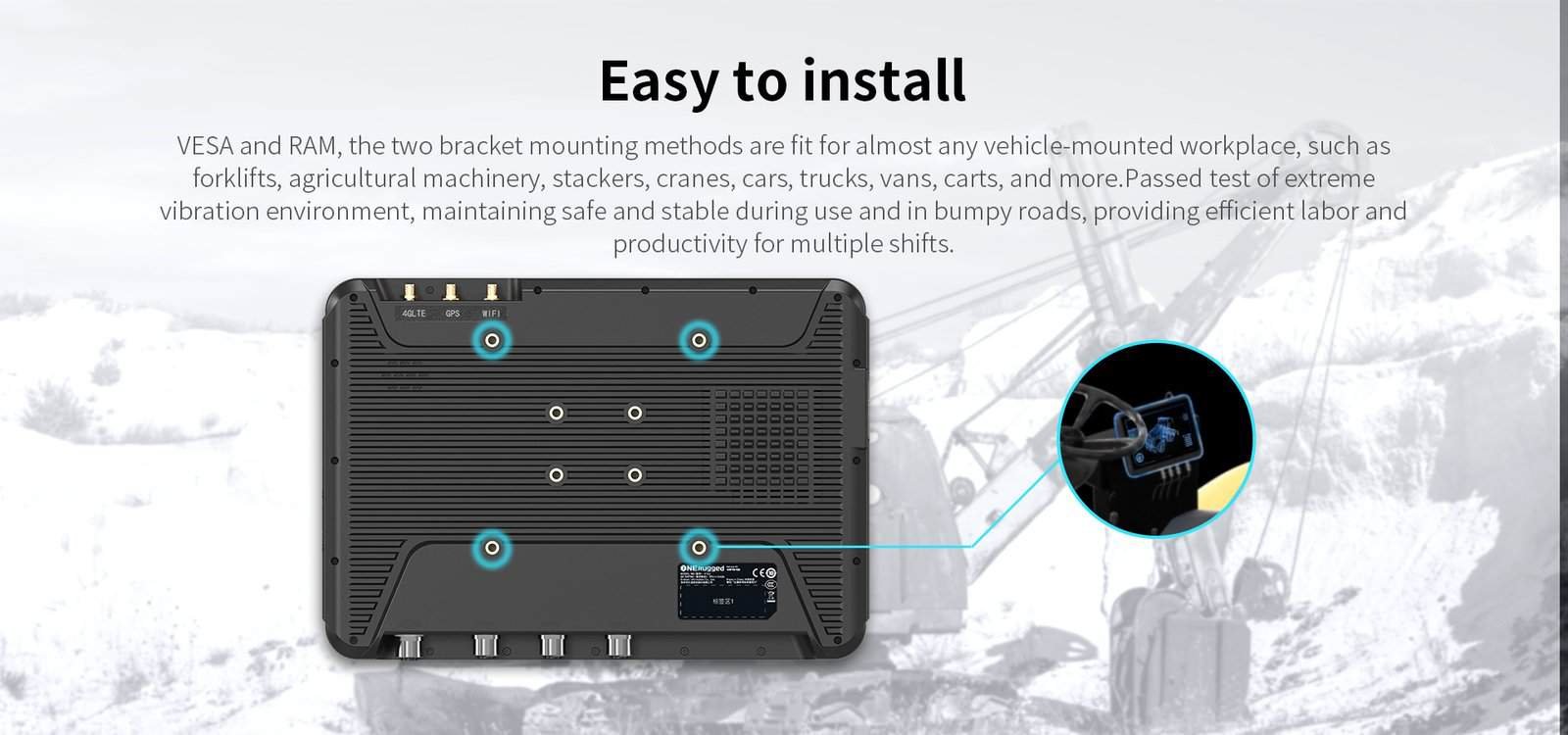

Flexible Power & Mounting: 9-36V/20-80V wide voltage, aviation plug charging, optional 7.4V/1000mAh battery, VESA/RAM mounts for forklifts, trucks, and cranes.
Clear Audio: 2W rear speaker for noisy environments.
