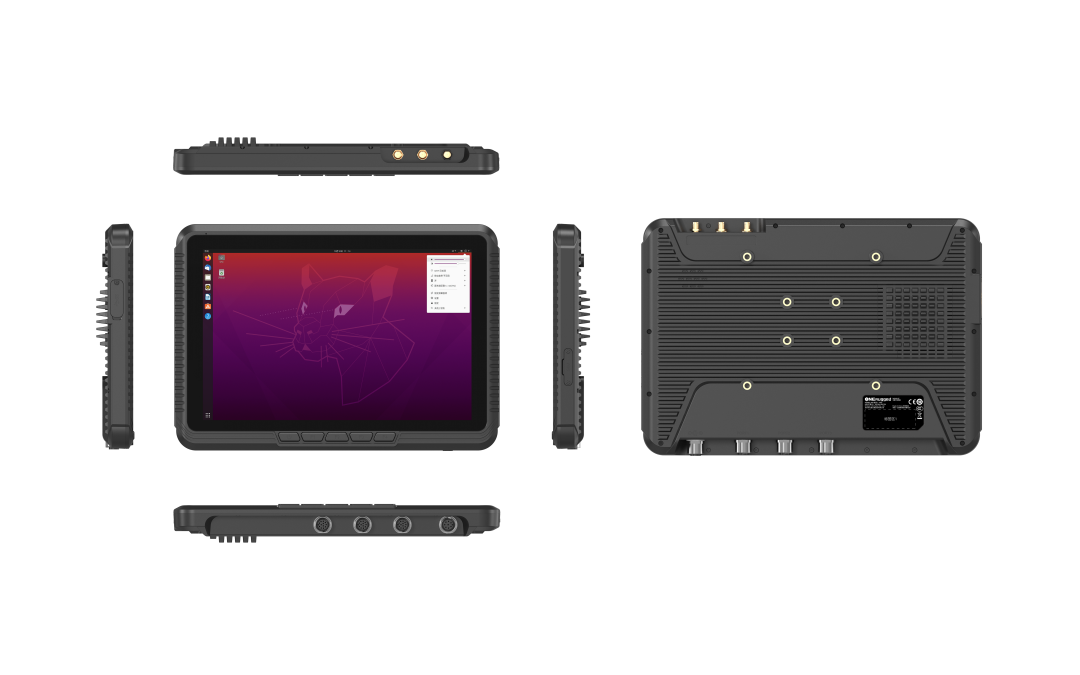

Rugged industrial tablet with a black protective casing displaying a Linux desktop interface with a lion logo background.
Industrial touchscreen panel computer with multiple ports and rugged design for industrial automation and control systems.
Emdoor IPC industrial computer with multiple ports and rugged design for embedded applications.
Emdoor IPC industrial computer with multiple ports and rugged design for embedded applications.
Emdoor IPC rugged industrial tablet with multiple ports and durable design for industrial applications.
Industrial panel PC with rugged design, suitable for automation and industrial applications, featuring a durable black casing and multiple I/O ports.
Industrial-grade electronic device with multiple ports and connectors, designed for robust industrial applications.

EM-V10J (Linux) 10.1 Inch Linux Vehicle PC Rugged Tablet

4.5 / 150 Reviews

Categories ,

Overview

Emdoor Vehicle PC V10J Equipped with Intel JASPER LAKE N5100, Ubuntu OS, 10.1-inch 700-nit screen, dual-band Wi-Fi, 4G LTE.
  • CPU: Intel JASPER LAKE N5100
  • GPU: Intel® HD Graphics Gen 11 LP
  • Operating system: Ubuntu22.04.4
  • Resolution: 800*1280
  • Screen size: 10.1 inches

Certifications & protection

CECEFCCFCCCCCCCCIP65
Get a quoteContact Us
Facebook-f Youtube Linkedin-in X-twitter

Additional information

Dimensions

264.5*184.1*23.0 mm

Machine weight

834g

Machine color

Black

Display

10.1 inch LCD 16:10 , resolution: 800*1280, 700nits

Touch screen

5 points Capacitive

Camera

/

I/O Interface

SIM card slot (optional)：NanoSIM *1
USB 3.0 *1, USB A port, HOST data transmission
DC input (Input: 11~24V)
1000M network interface
RS232 *1+RS232/RS485 *1
USB 2.0 *1+USB 2.0 (Default)/CAN*1+CVBS*1
USB2.0 standard interface *2;
Optional CAN for customer debugging

Power adapter

19V 3.42A Cigarette Lighter Adapter
19V 3.42A DC φ5.5 power adapte

WIFI

WIFI 802.11(a/b/g/n/ac), Dual frequency 2.4G+5.8G

Bluetooth

BT5.0 (BLE) class1

2G/3G/4G/5G

4G

GNSS

GPS, GLONASS
Optional, Huada Beidou

CPU

Intel JASPER LAKE N5100 Max 2.8GHz

GPU

Intel® HD Graphics Gen 11 LP

Operating system

Ubuntu22.04.4

Memory

8GB

Storage capacity

128GB

Battery

Optional-1000mAh/7.4V/Built in polymer lithium ion battery

NFC

No

1D/2D

No

Fingerprint

No

Operating temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity

95% Non-Condensing

Protection level

IP65 certified

Drop height

1.22m drop resistance

Description

View EM-V10J (Linux) accessories ↓

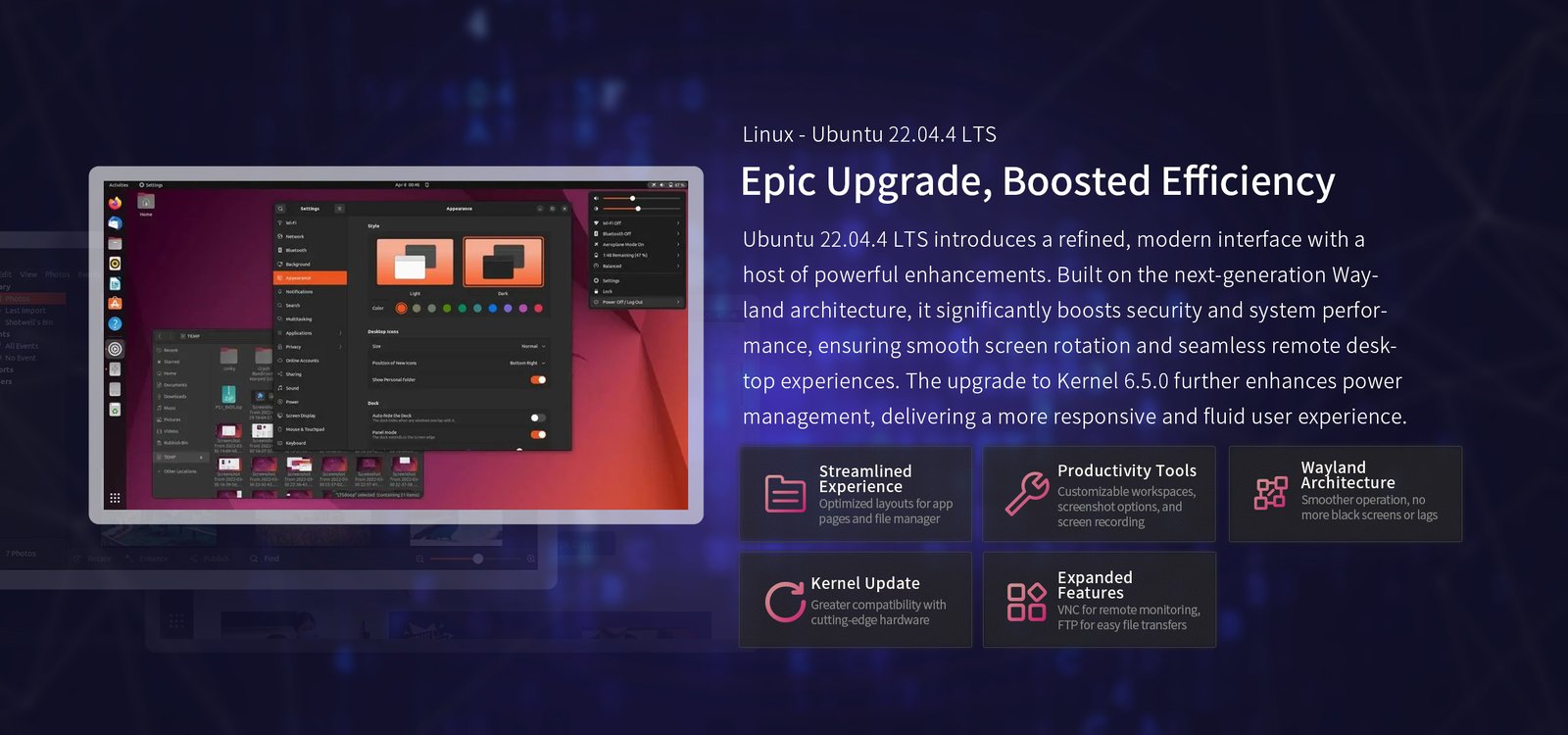

Industrial-grade heat dissipation system for all-day operation in electronic equipment, featuring a fanless design for reliability and efficiency. Screenshot of Linux Ubuntu 22.04.4 LTS desktop with Epic Upgrade, Boosted Efficiency features highlighted. High-performance embedded computer with Intel Jasper Lake N5100 processor, 8GB RAM, 128GB storage, running Ubuntu 22.04.4 for demanding vehicle-mount applications. Outdoor worker using a rugged tablet with high brightness and durability for productivity in harsh environments. Emdoor IPC industrial computer with rugged design and multiple connectivity options for network integration. Emdoor IPC rugged tablet with aviation plug charging interface and high-capacity battery for industrial and agricultural applications. Emdoor IPC industrial computer with USB Type-A port and SIM card slot, designed for rugged environments and versatile connectivity options.

EM-V10J (Linux) / ACCESSORIES

Equip your vehicle installation.

Choose the power, connectivity and mounting accessories listed for this model. Standard and optional items are shown separately to help you plan your installation.

Standard accessories

EM-V10J (Linux) Wi-Fi external antenna

Standard

Wi-Fi external antenna

EM-V10J (Linux) GNSS vehicle antenna

Standard

GNSS vehicle antenna

EM-V10J (Linux) Power adapter cable

Standard

Power adapter cable

Optional accessories

EM-V10J (Linux) 4G external antenna

Optional

4G external antenna

EM-V10J (Linux) Cigarette lighter adapter

Optional

Cigarette lighter adapter

EM-V10J (Linux) Power adapter

Optional

Power adapter

EM-V10J (Linux) 12PIN to USB 2.0 *2+USB 2.0*1（Default）/CAN*1

Optional

12PIN to USB 2.0 *2+USB 2.0*1（Default）/CAN*1

EM-V10J (Linux) 12PIN to 1000M RJ45

Optional

12PIN to 1000M RJ45

EM-V10J (Linux) Wide voltage module

Optional

Wide voltage module

EM-V10J (Linux) GPS external antenna

Optional

GPS external antenna

Build your accessory kit with our team.

Confirm connector type, power rating, mounting requirements and accessory availability for your selected configuration.

Discuss your EM-V10J (Linux) configuration →
