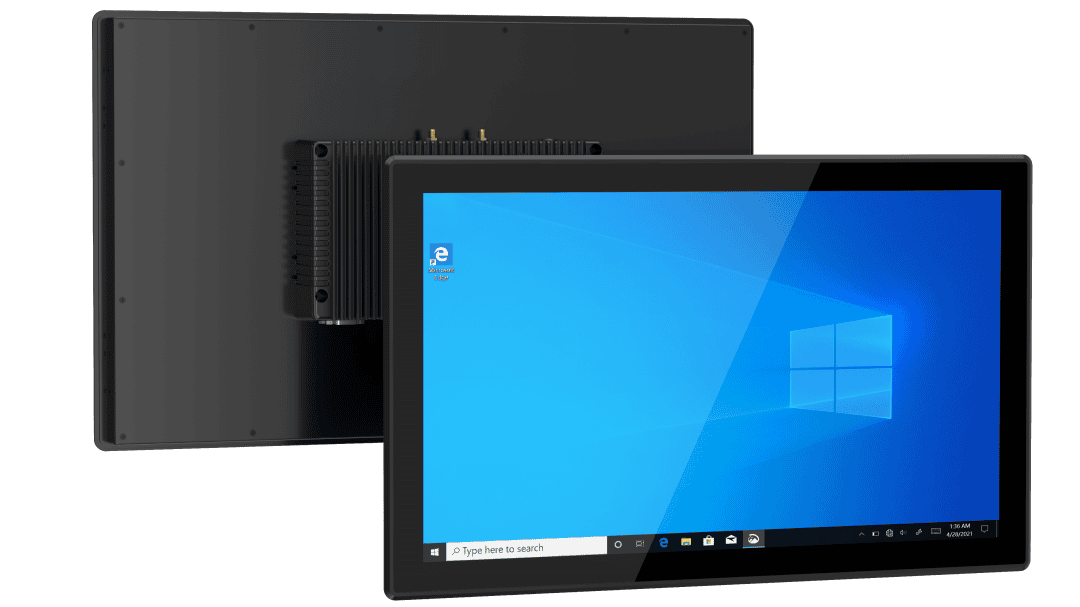

EM-P21J Intel Celeron N5100 21.5 inch Windows Industrial PC

Additional information

Dimensions	537.02 x 324.02 x 57.60 mm
Machine weight	5.05 kg
Machine color	Black
Display	21.5 inch LCD 16:9, resolution 1920*1080 , 250nits
Touch screen	Touch screen
Camera	/
I/O Interface	Standard USB-A USB3.02 USB2.02 Power interface DC 12V Power connector 1 ∮ 3.5mm Standard Earphone Jack 1 RJ452 (10M/100M/1000M adaptive) DB9 PORT RS232 2 (Configurable via onboard jumper cap to: RS4851, RS2321) HDMI 2.0a*1
Power adapter	AC100V ~ 240V、50Hz/60Hz output DC 12V/4A
WIFI	WiFi 802.11(ac), 2.4G+5.0G, dual frequency WiFi
Bluetooth	BT5.0
NFC	No
2G/3G/4G/5G	2G/3G/4G
GNSS	/
CPU	Intel® Celeron® Processor N5100
GPU	Intel UHD
Operating system	Windows 10/11
Memory	8GB
Storage capacity	128GB
Battery	/
1D	No
2D	No
Fingerprint	No
Operating temperature	-20℃~60℃
Storage temperature	-30℃~70℃
Humidity	95%, no condensation
Protection level	IP65 Front Panel
Drop height	1.22m drop resistance

Description

Overview

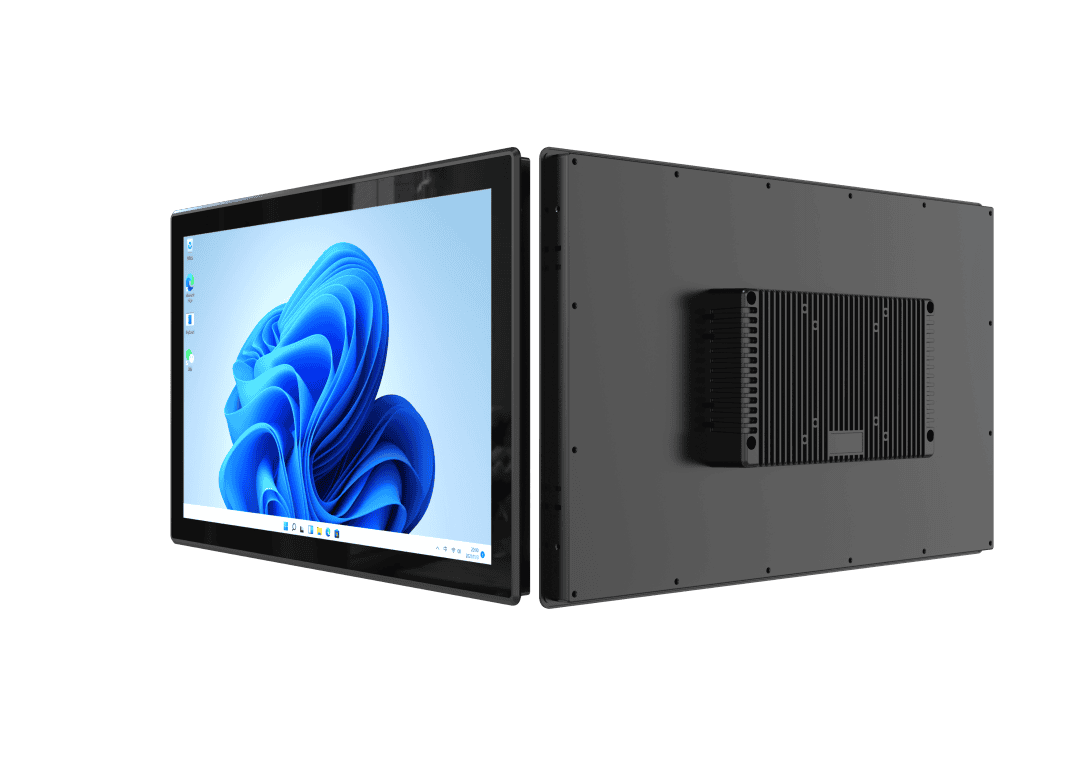

The EM-P21J is a 21.5-inch industrial panel PC designed for reliability in demanding environments. Powered by an Intel® Celeron® N5100 processor and running Windows 10/11, it delivers robust performance for industrial control, automation, and communication applications.

Key Features

High-Performance Processing: Intel® Celeron® N5100 (quad-core, up to 2.8GHz) with Intel UHD GPU ensures efficient computing for SCADA, data processing, and control tasks.

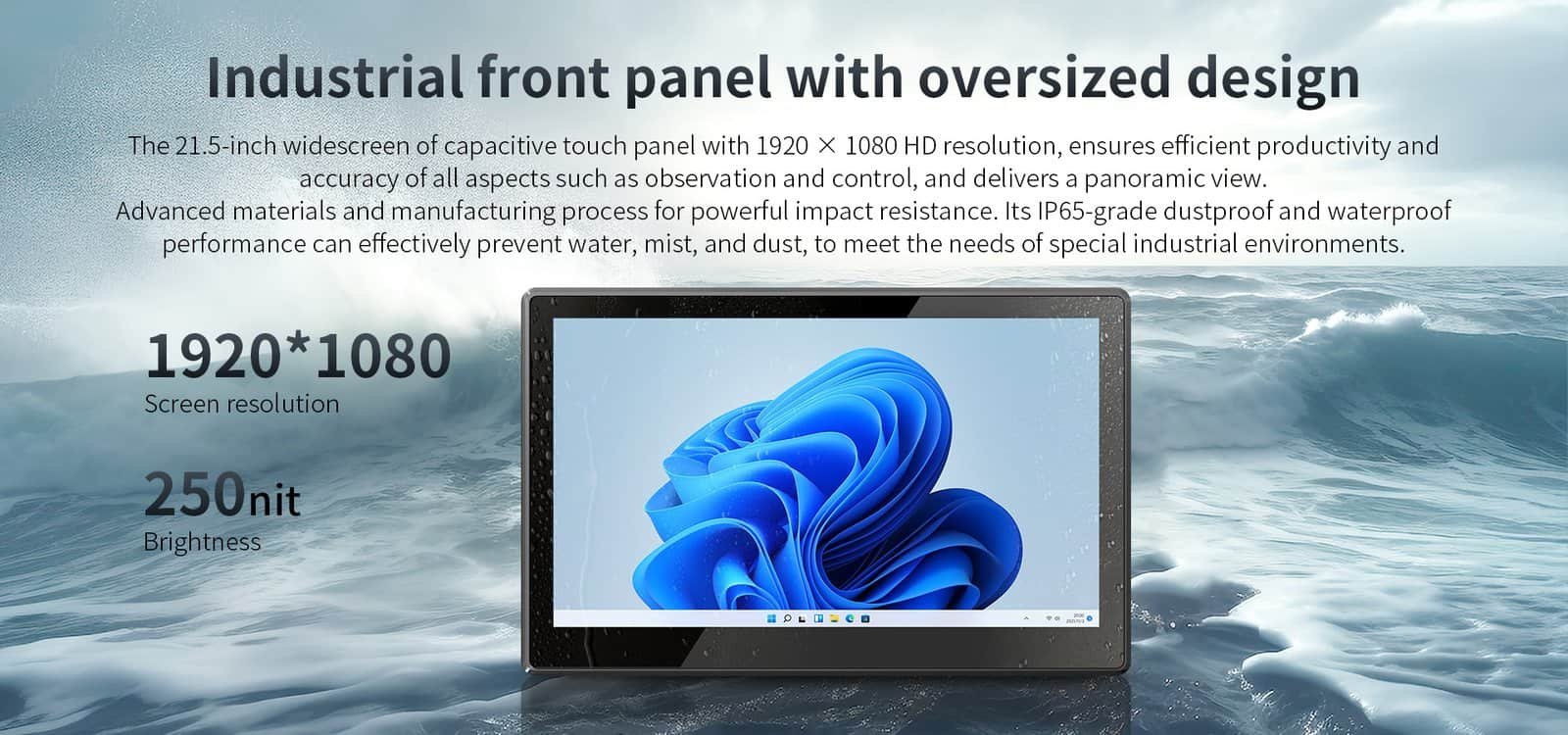

Vivid Display: 21.5″ Full HD (1920×1080) capacitive touchscreen with 250-nit brightness for clear visuals and precise control.
Rugged Durability: IP65-rated for dust and water resistance, with anti-electromagnetic interference and anti-static protection. Operates reliably from -20°C to 60°C.

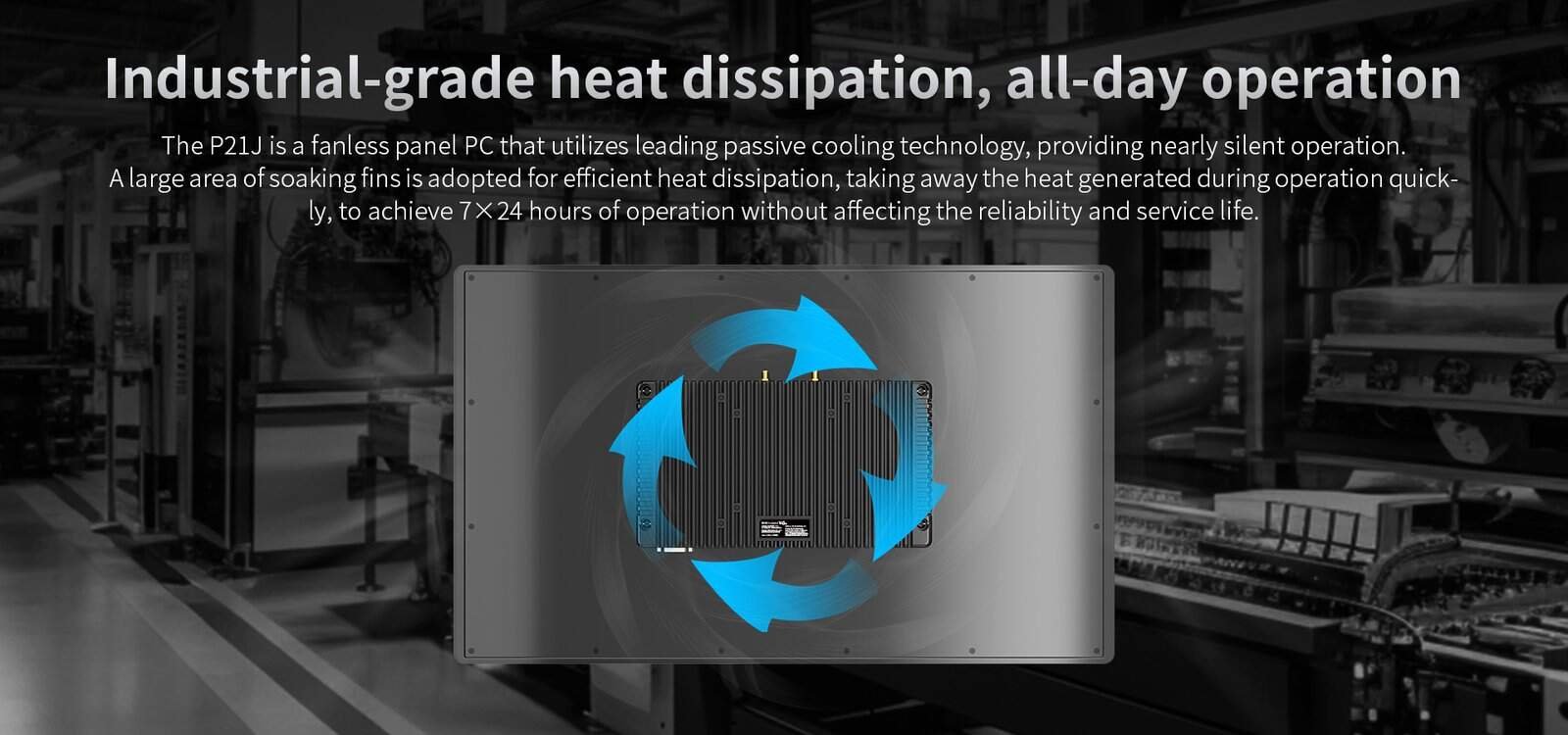

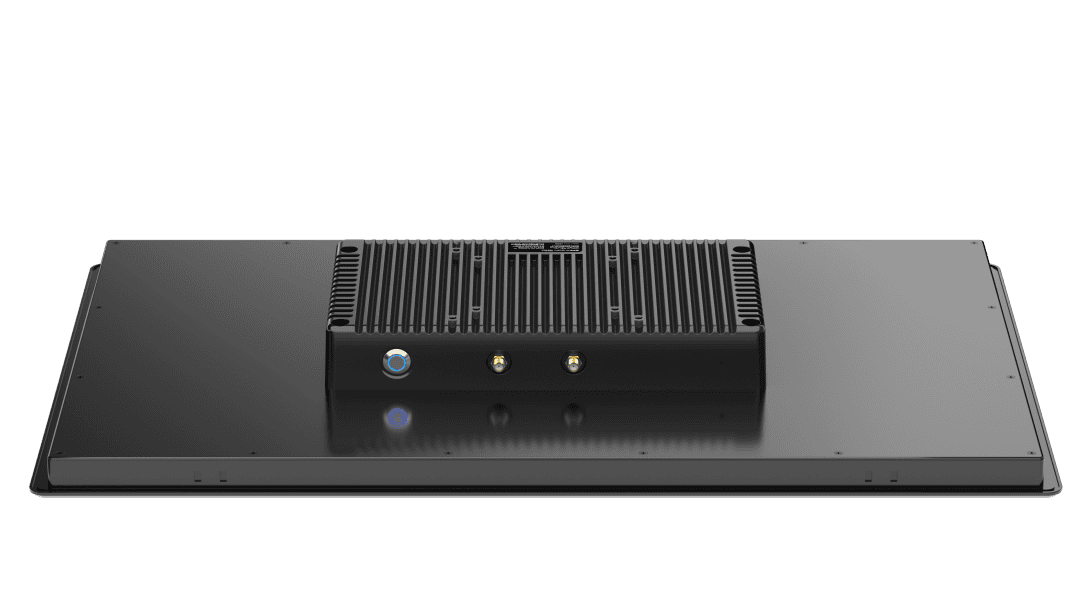

Fanless Design: Advanced passive cooling with large-area heat fins ensures silent, 24/7 operation without compromising reliability.

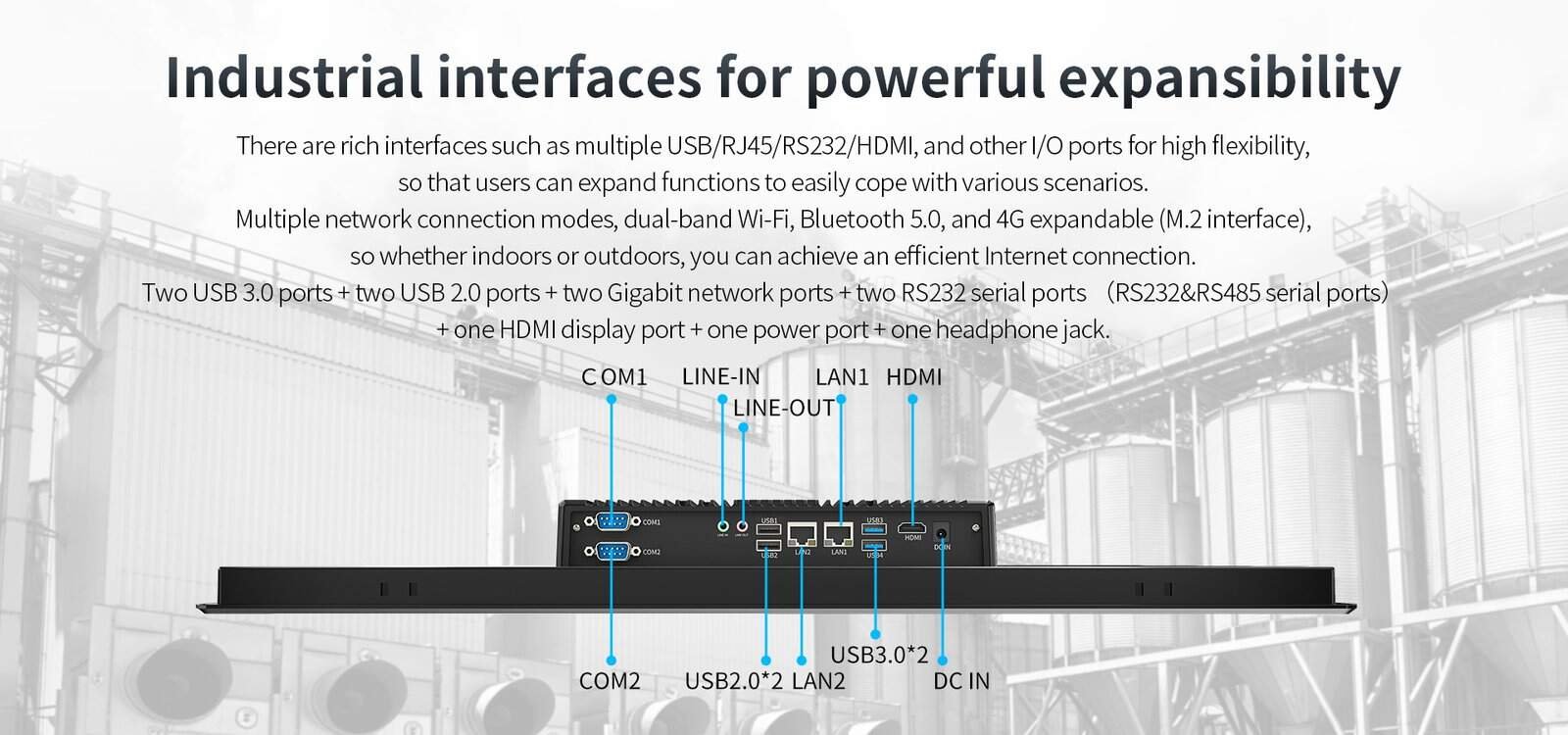

Flexible Connectivity: Includes 2x USB 3.0, 2x USB 2.0, 2x Gigabit Ethernet, 2x RS232/RS485, HDMI, and headphone jack. Supports dual-band Wi-Fi, Bluetooth 5.0, and 4G (M.2 slot).
Versatile Power Options: Wide voltage support (DC 12-24V or AC 100-240V to DC 12V/4A) for stable performance in fluctuating conditions.

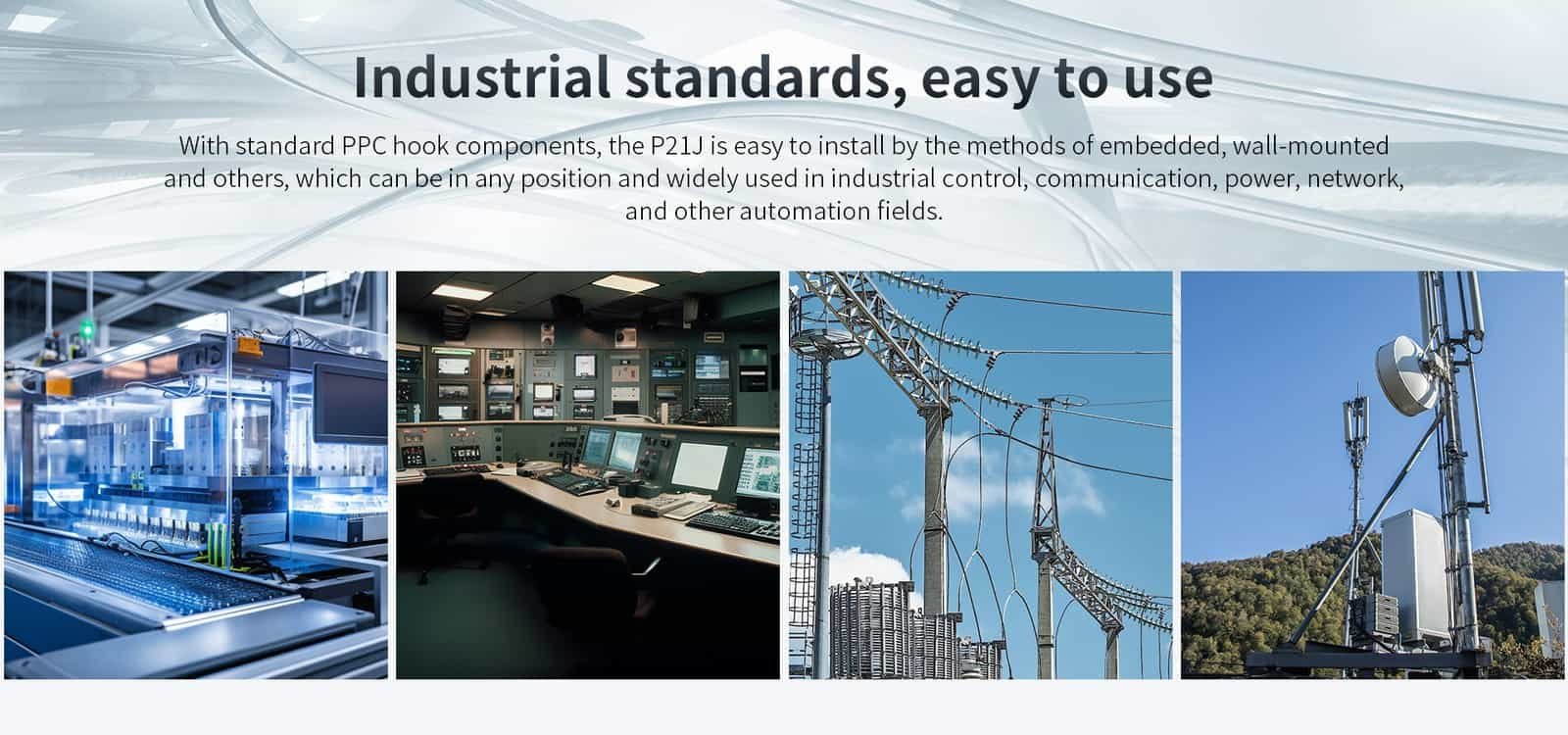

Easy Installation: Supports embedded, wall-mounted, or custom setups for seamless integration into industrial environments.
