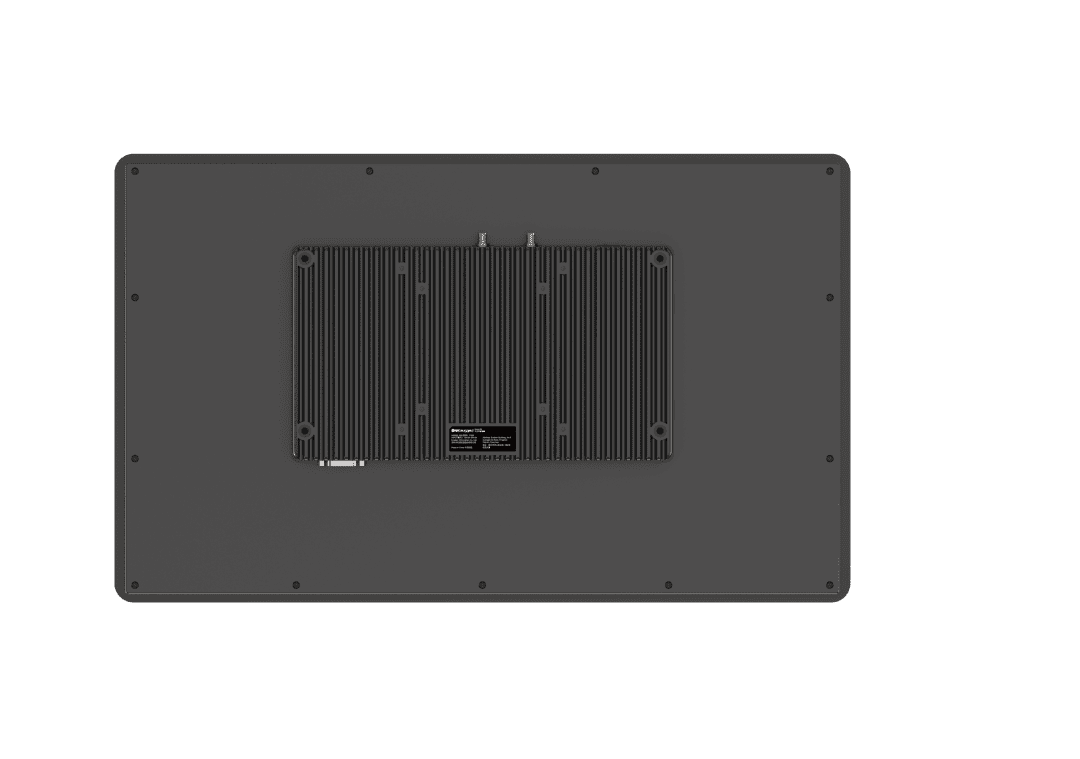

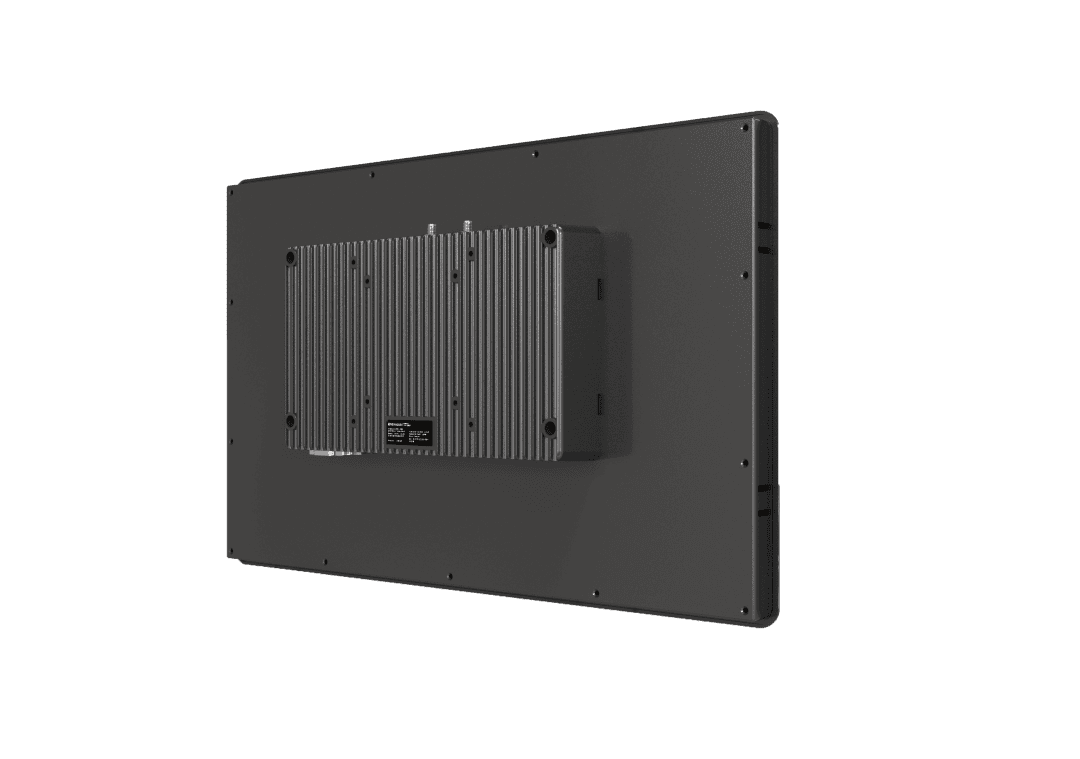

Back view of an industrial panel PC with a heat sink, designed for rugged computing applications.
Emdoor IPC industrial computer with multiple ports and rugged design for embedded applications.

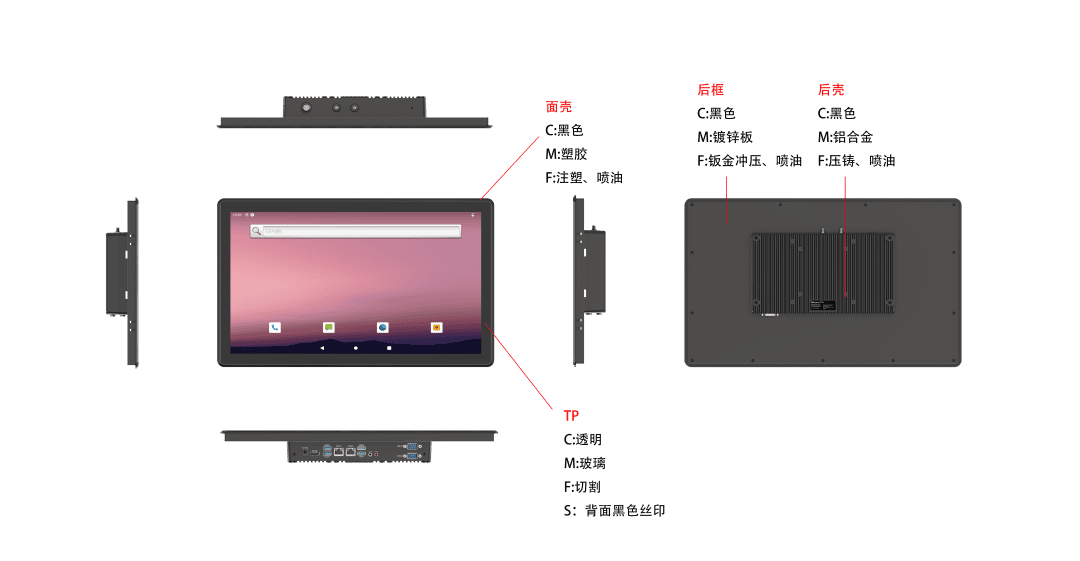

Diagram of an industrial panel PC with touchscreen, mounting options, and I/O ports, highlighting features for industrial automation and embedded computing.

EM-P18R RK3568 Quad-core 18.5 Inch IPC Windows

4.5 / 150 Reviews

Categories ,

Overview

Emdoor 18.5 inch industrial panel pc P18R integrates the industrial-grade RK3568 ARM chip, delivering powerful performance and energy efficiency for harsh industrial scenarios. Running Android 12, it enables flexible customization and intuitive operation, optimizing productivity across applications.
  • CPU: RK3568
  • GPU: Mali-G52-2EE
  • Operating system: Android 12
  • Resolution: 1920*1080
  • Screen size: 18.5 inches
Get a quoteContact Us
Facebook-f Youtube Linkedin-in X-twitter

Additional information

Dimensions

457*279*54 mm

Machine weight

3..22kg

Machine color

Black

Display

18.5 inch LCD 16:9, resolution 1920*1080 , 250nits

Touch screen

10 PCAP

Camera

/

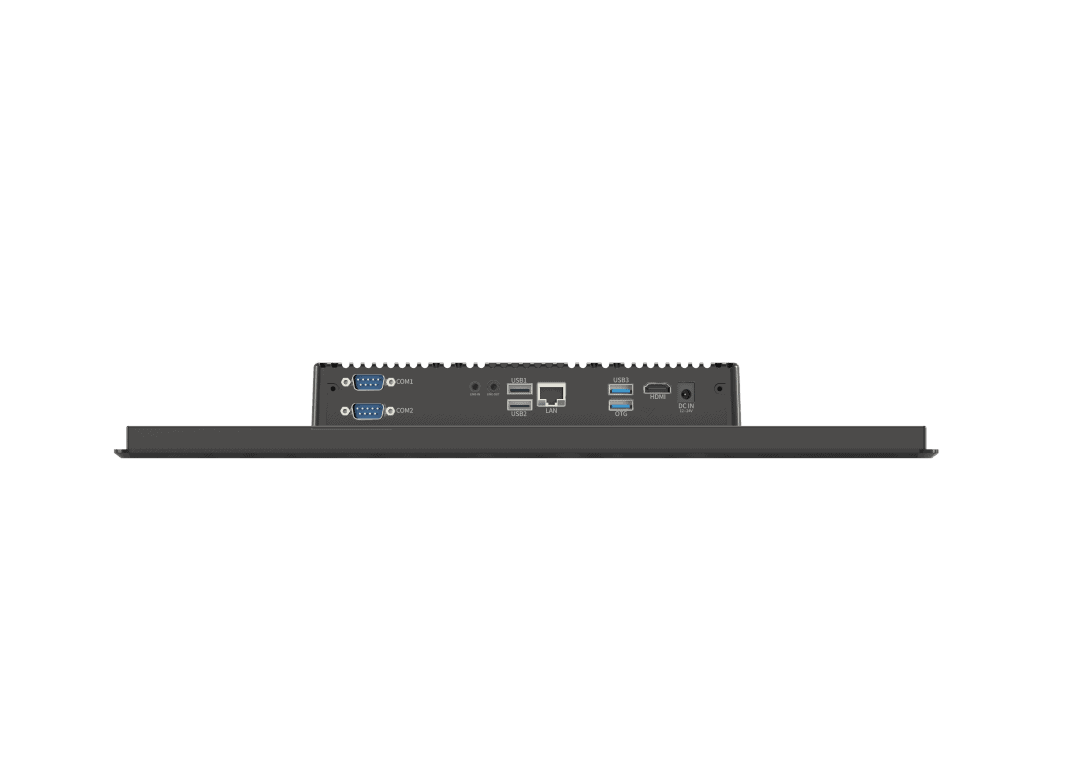

I/O Interface

Type A USB:
USB3.0*1,USB3.0*1OTG
USB2.0 *2
DC IN 12V-24V Power connector *1
3.5mm Standard Earphone Jack *1
RJ45 *1 (10M/100M/i000M adaptive)
DB9 PORT RS232*2
(Mainboard switchable to RS485:RS485*1,RS232*1)
HDMI*1

Power adapter

AC100V ~ 240V、50Hz/60Hz output DC 12V/4A

WIFI

WiFi 802.11a/b/g/n/ac Frequency 2.4G+5.8G dual band WIFI

Bluetooth

BT5.0

2G/3G/4G/5G

2G/3G/4G

GNSS

/

CPU

RK3568

GPU

Mali-G52-2EE

Operating system

Android 12

Memory

4GB

Storage capacity

64GB

Battery

/

NFC

No

1D/2D

No

Fingerprint

No

Operating temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity

95%, no condensation

Protection level

IP65 Front Panel

Drop height

1.22m drop resistance

Description

Overview

The EM-P18R is an 18.5-inch rugged Android 12 industrial IPC, powered by the Rockchip RK3568 quad-core processor. Designed for production MES, automation, monitoring, and medical informatics, it offers robust performance, flexible connectivity, and easy installation in harsh industrial environments.

Key Features

  • High-Efficiency Processing: Rockchip RK3568 (quad-core Cortex-A55, up to 2.0GHz, 1 TOPS NPU) with Mali-G52-2EE GPU delivers energy-efficient performance for industrial applications.

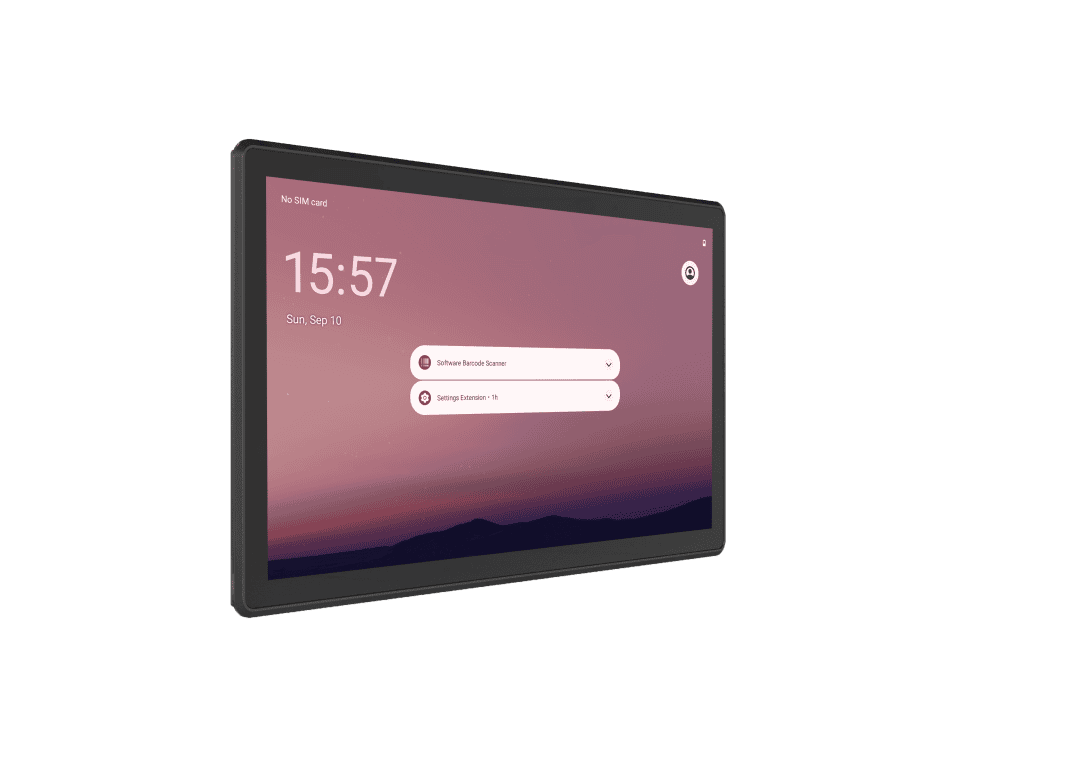

  • Clear Touch Display: 18.5″ Full HD (1920×1080) 10-point capacitive touchscreen (250 nits) supports wet/glove touch for precise, responsive interaction.

  • Rugged Durability: IP65 front panel, vibration/shock-resistant aluminum alloy design, and anti-electromagnetic interference (EMC/EMI compliant). Operates from -20°C to 60°C.

  • Fanless Cooling: Fully enclosed with heat dissipation fins for silent, 24/7 operation and minimal maintenance.

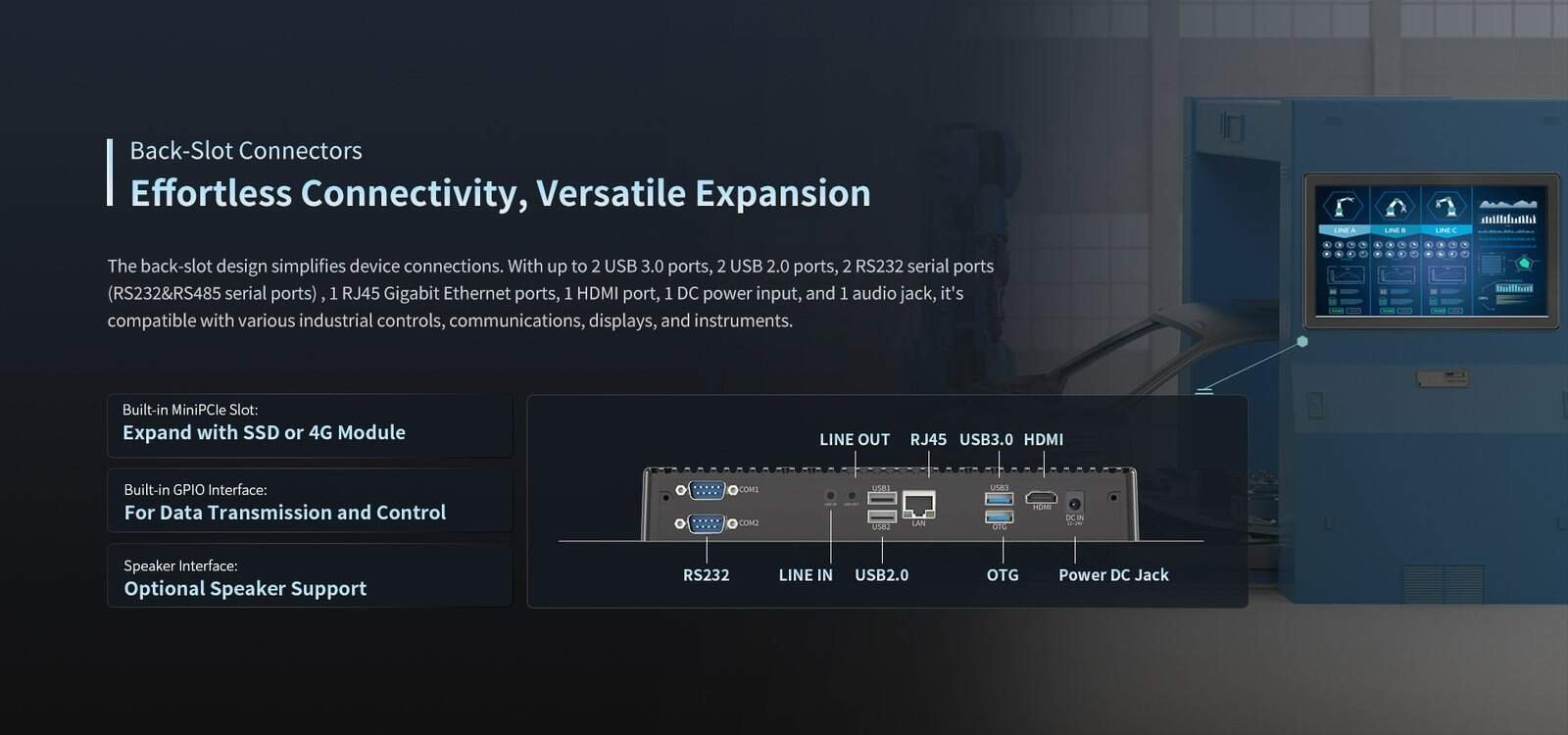

  • Versatile Connectivity: Includes 2x USB 3.0, 2x USB 2.0, 2x RS232/RS485, RJ45 Gigabit Ethernet, HDMI, DC jack, audio jack, Mini PCIe (SSD/4G), GPIO, Wi-Fi 5, and Bluetooth 5.0.

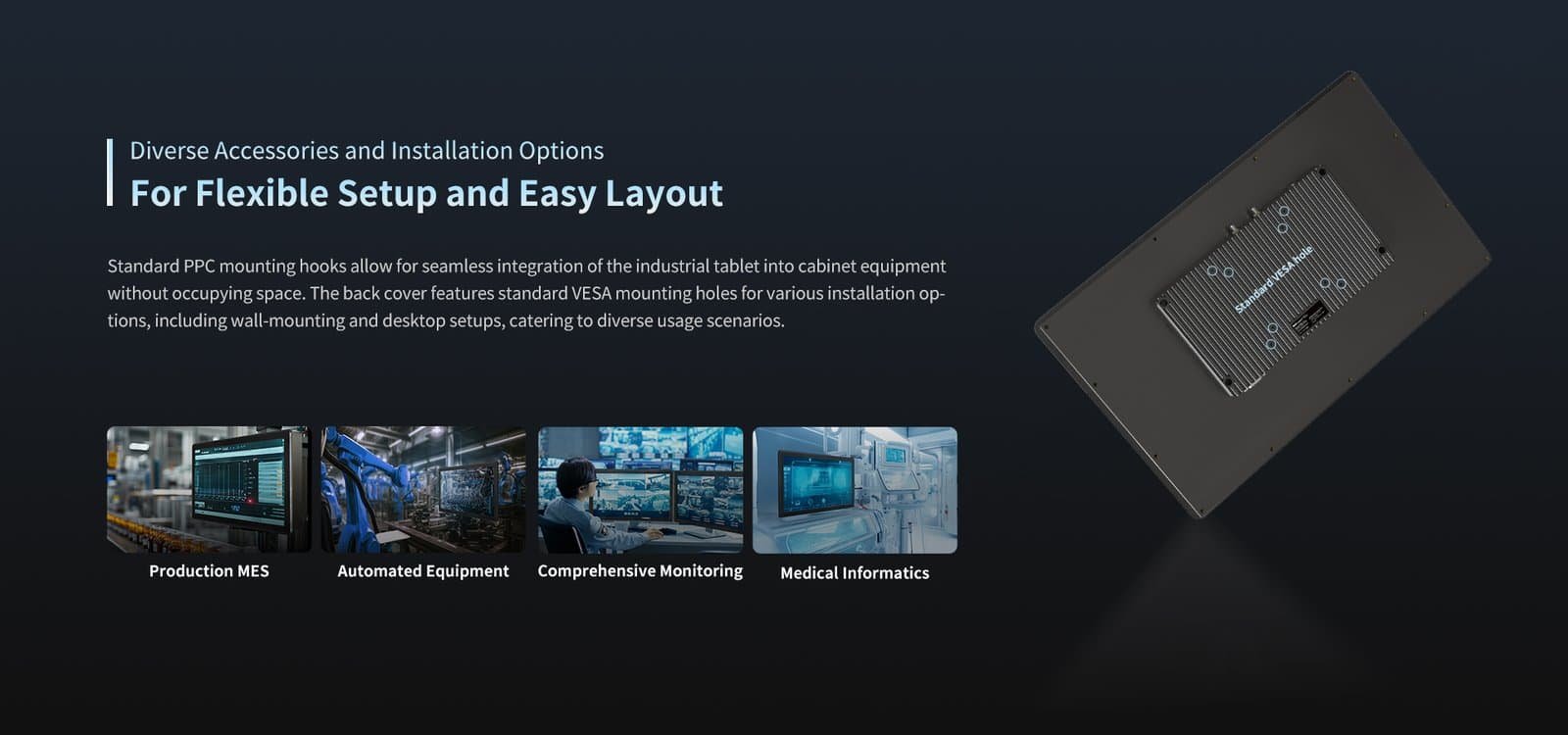

  • Flexible Installation: VESA/PPC mounting hooks support wall-mounted, desktop, or embedded setups.

Optimize your operations—request a demo or quote at emdoor today!

Panel PC P18R from Emdoor IPC featuring a high-resolution touchscreen with advanced data visualization capabilities. Emdoor IPC industrial-grade ARM processor with high performance and low consumption, suitable for demanding industrial applications. 18.5-inch 16:9 industrial display with vibrant clarity and immersive experience, featuring a 1920x1080 HD resolution, capacitive touch, and wet or glove touch support for industrial applications. EmdoorIPC industrial computer with sealed, fanless design, IP65-rated front panel, and durable metal enclosure for industrial applications. Emdoor IPC back-slot connectors for versatile connectivity and expansion in industrial applications.
