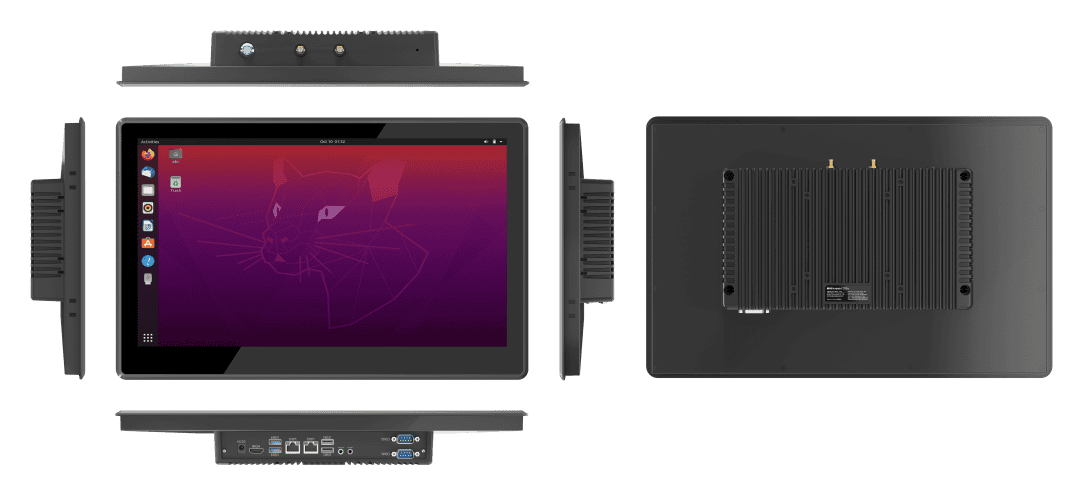

Emdoor IPC industrial tablet with a sleek black design and a vibrant screen displaying a purple and pink abstract background.
Industrial touchscreen panel computer with mounting brackets and control interface, ideal for automation and embedded systems.

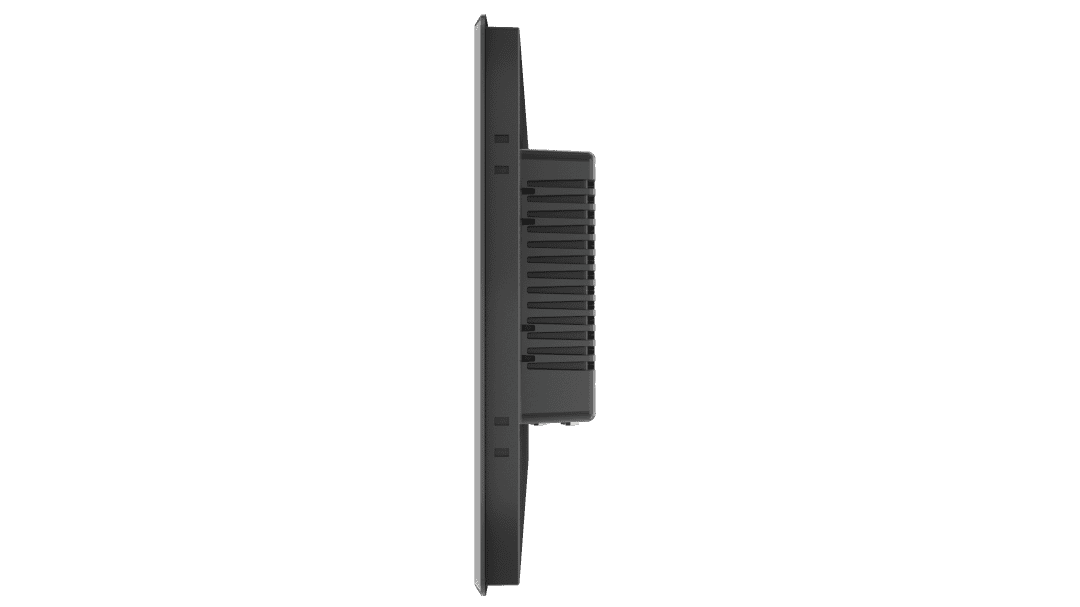

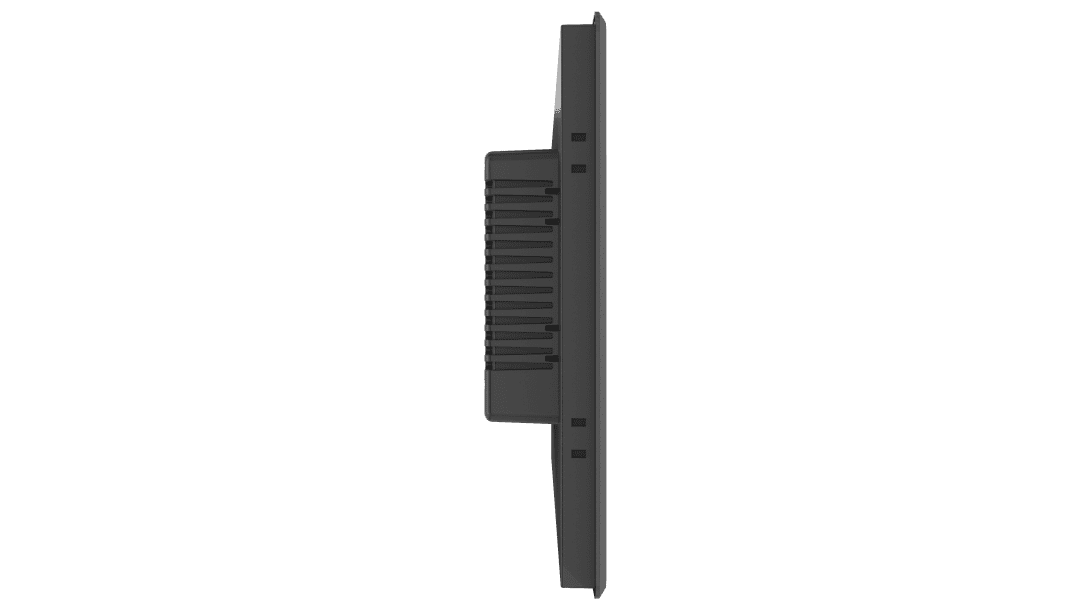

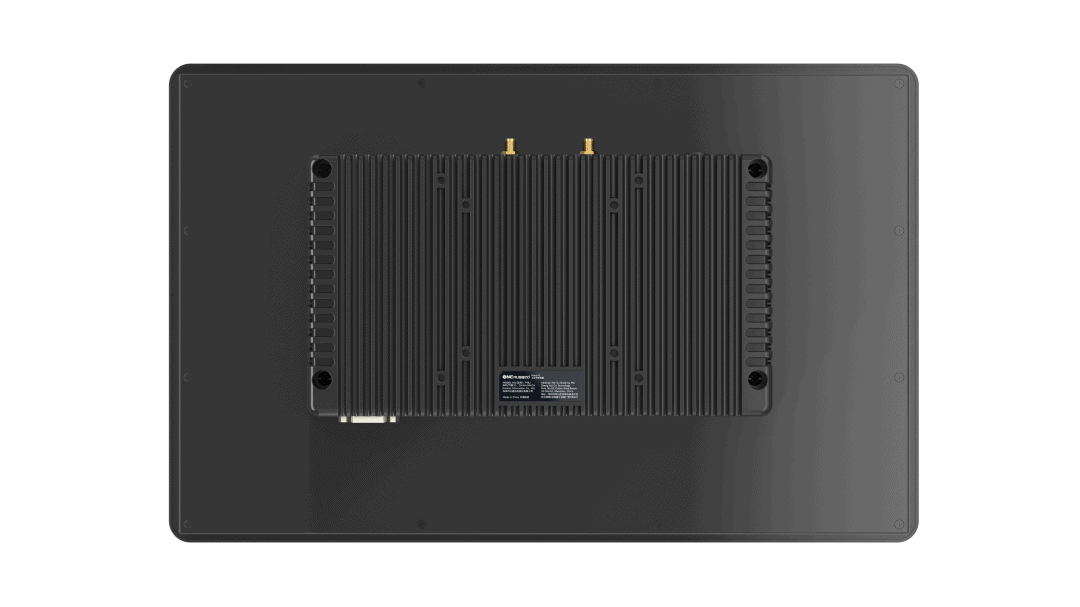

Back view of an industrial panel PC with cooling vents and connection ports, designed for embedded computing applications.
Industrial panel PC with multiple ports including USB, HDMI, and Ethernet, designed for embedded computing and automation applications.
Industrial embedded computer with multiple ports and cooling system, designed for automation and IoT applications.
Emdoor IPC industrial computer with rugged design and multiple connectivity ports for industrial automation and IoT applications.
Emdoor IPC industrial computer with rugged design, multiple ports, and a slim profile for embedded applications.

EM-P15J (Linux) Intel Celeron N5100 15.6 Inch Linux Industrial Panel PC

4.5 / 150 Reviews

Categories ,

Overview

Choose Intel Celeron N5100 15.6 inch ip65 touch screen pc from Emdoor, one of leading panel pc suppliers in China. The rugged touch screen computer is fanless with low consumption. More custom modules are available.
  • CPU: Intel® Celeron® Processor N5100
  • GPU: Intel UHD
  • Operating system: Ubuntu22.04.4
  • Resolution: 1920×1080
  • Screen size: 15.6 inches

Certifications & protection

CECEFront panel IP65
Get a quoteContact Us
Facebook-f Youtube Linkedin-in X-twitter

Additional information

Dimensions

388.63 x 248.43 x 54.95 mm

Machine weight

2.4kg

Machine color

Black

Display

15.6 inch LCD 16:9,resolution: 1920×1080,220 Nits

Touch screen

10 PCAP

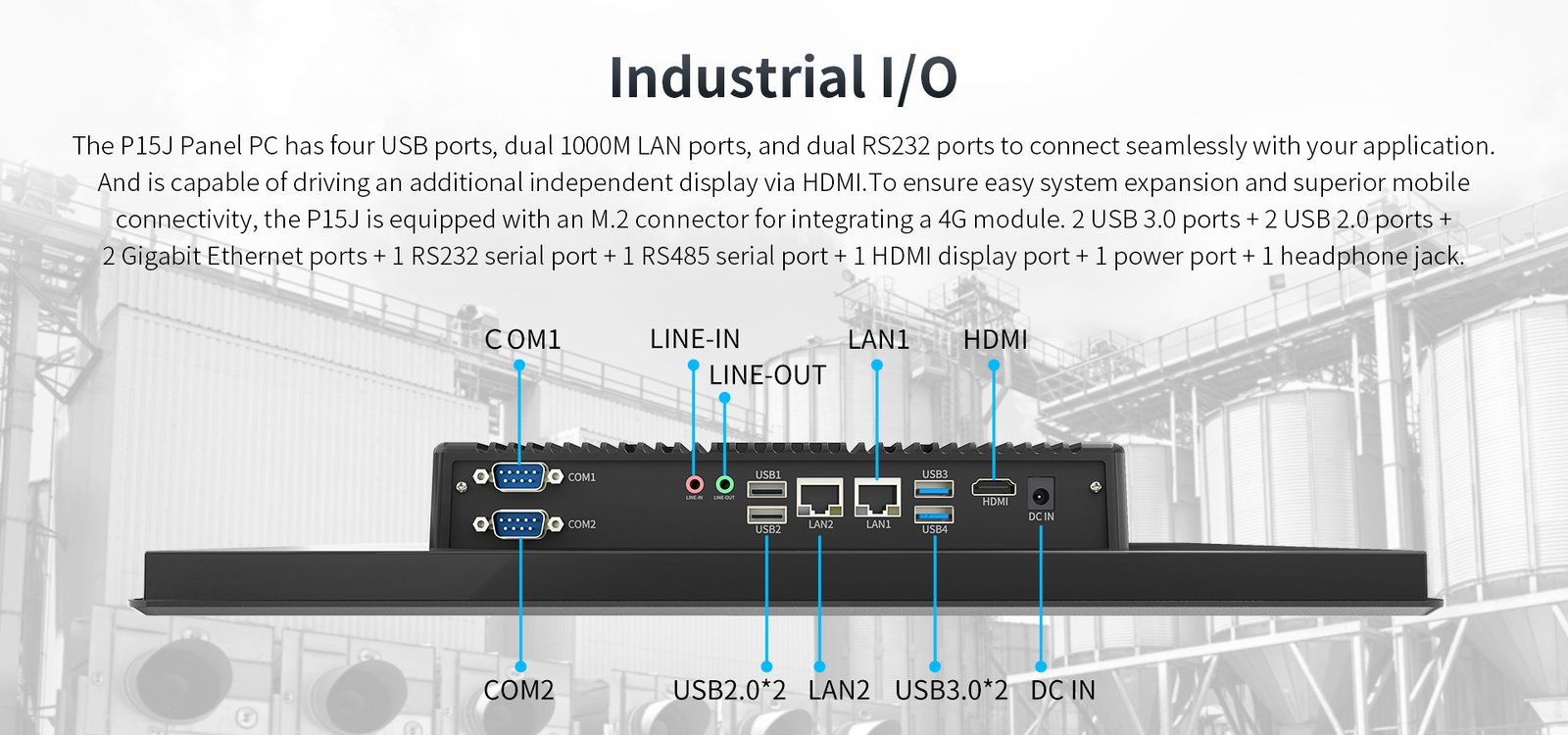

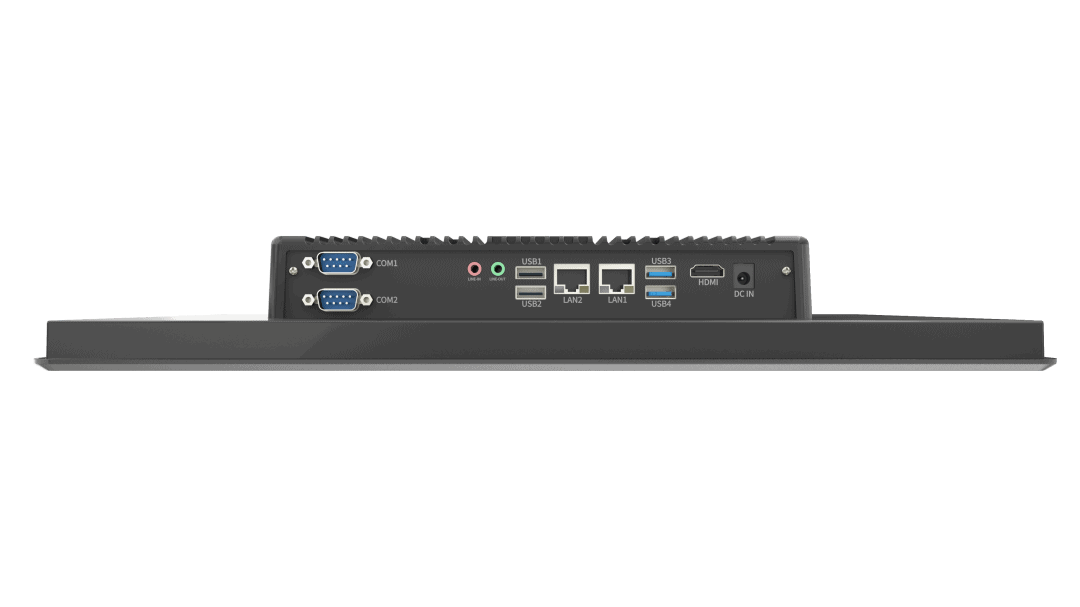

I/O Interface

USB3.0*2 USB2.0*2
DC IN 12V-24V Power connector *1
Standard Earphone Jack *1
RJ45 *2
DB9 PORT RS232 *2
(Can be changed through the jumper cap on the board：RS485*1，RS232*1)
HDMI 2.0a *1

Power adapter

AC100V ~ 240V、50Hz/60Hz output DC 12V/4A

WIFI

WIFI 802.11 (a/b/g/n/ac),frequency: 2.4G+5G dual frequency WIFI

Bluetooth

BT5.0

2G/3G/4G/5G

2G/3G/4G

CPU

Intel® Celeron® Processor N5100

GPU

Intel UHD

Operating system

Ubuntu22.04.4

Memory

8GB

Storage capacity

128GB

NFC

No

1D/2D

No

Fingerprint

No

Operating temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity

95% Non-Condensing

Protection level

IP65 Front Panel

Drop height

1.22m drop resistance

Description

View EM-P15J (Linux) accessories ↓

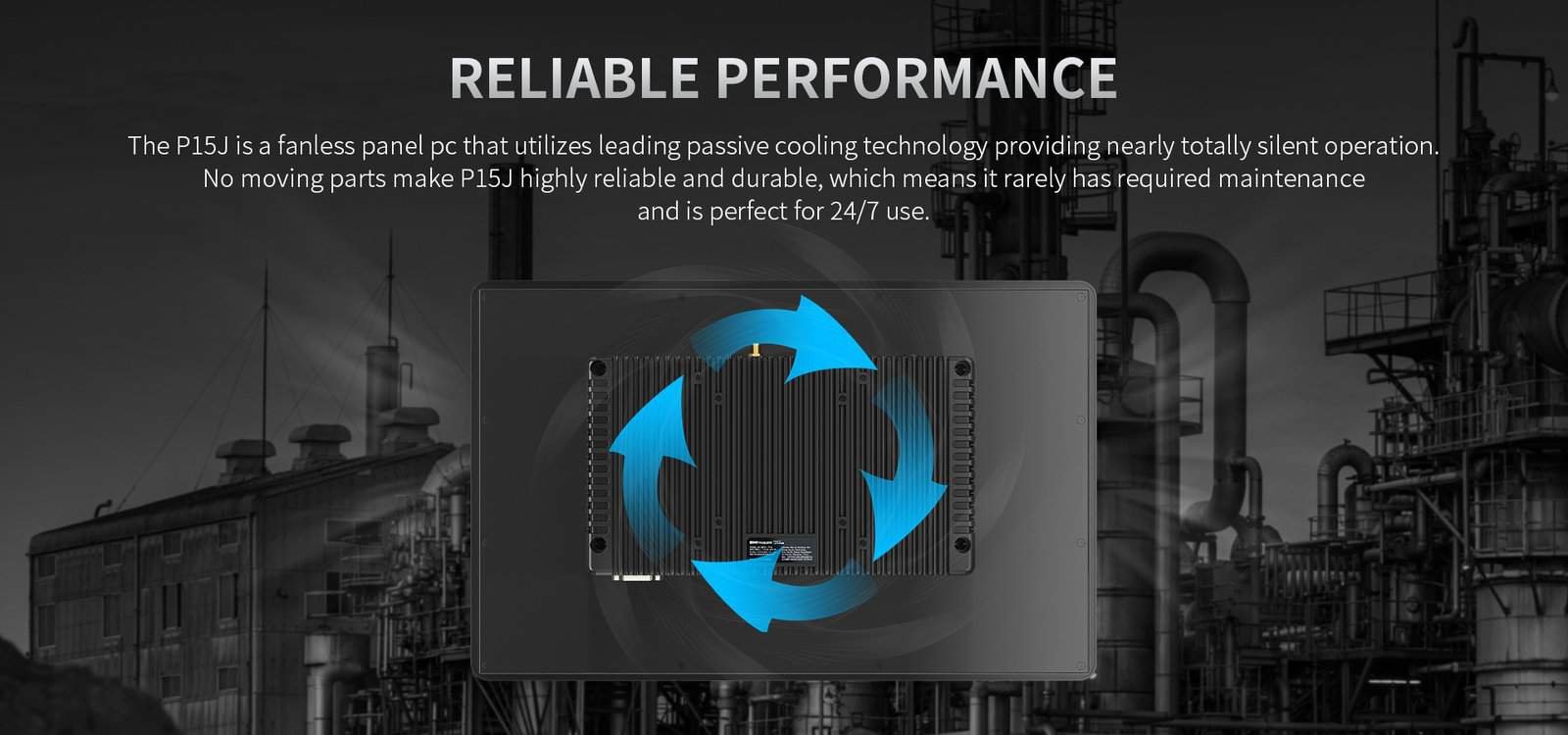

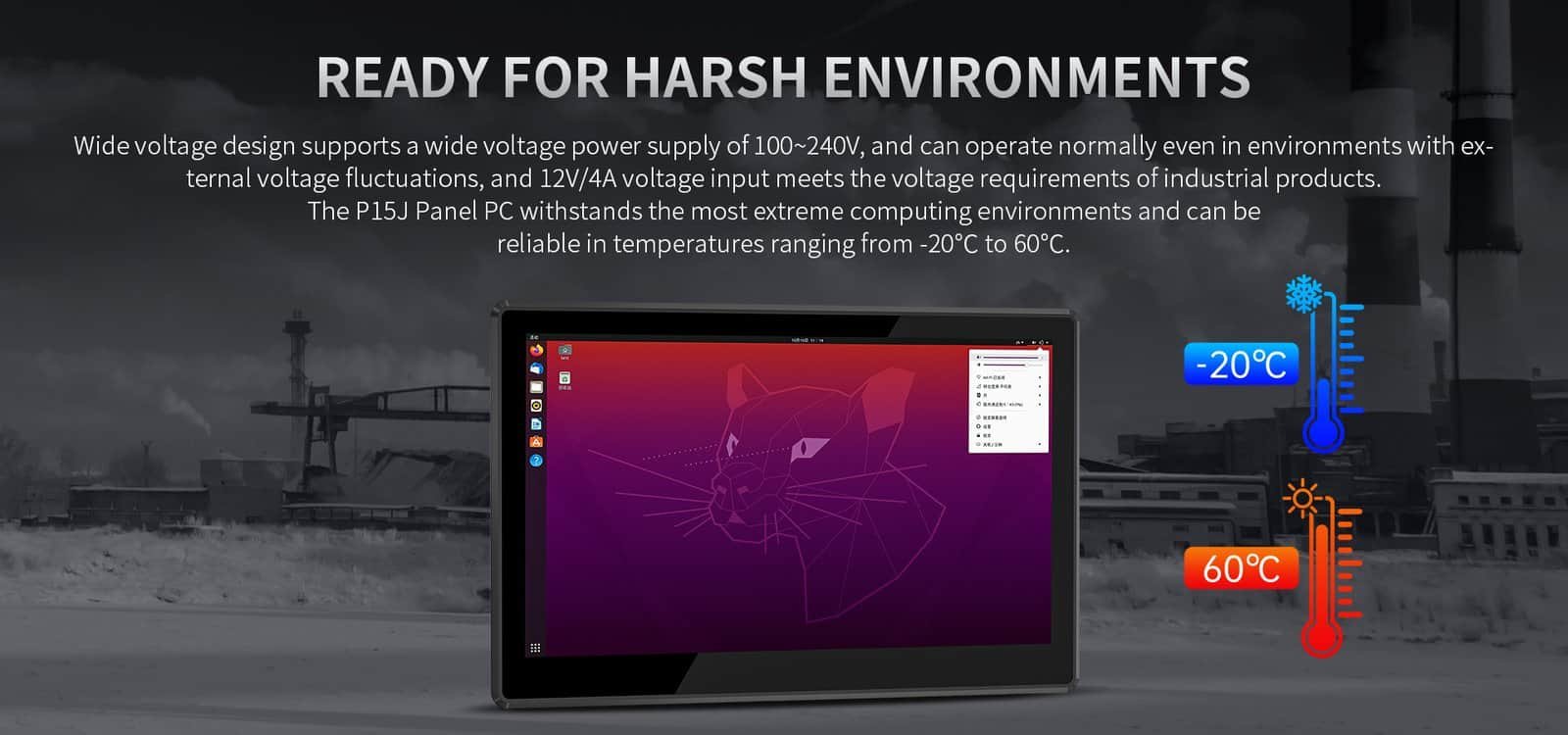

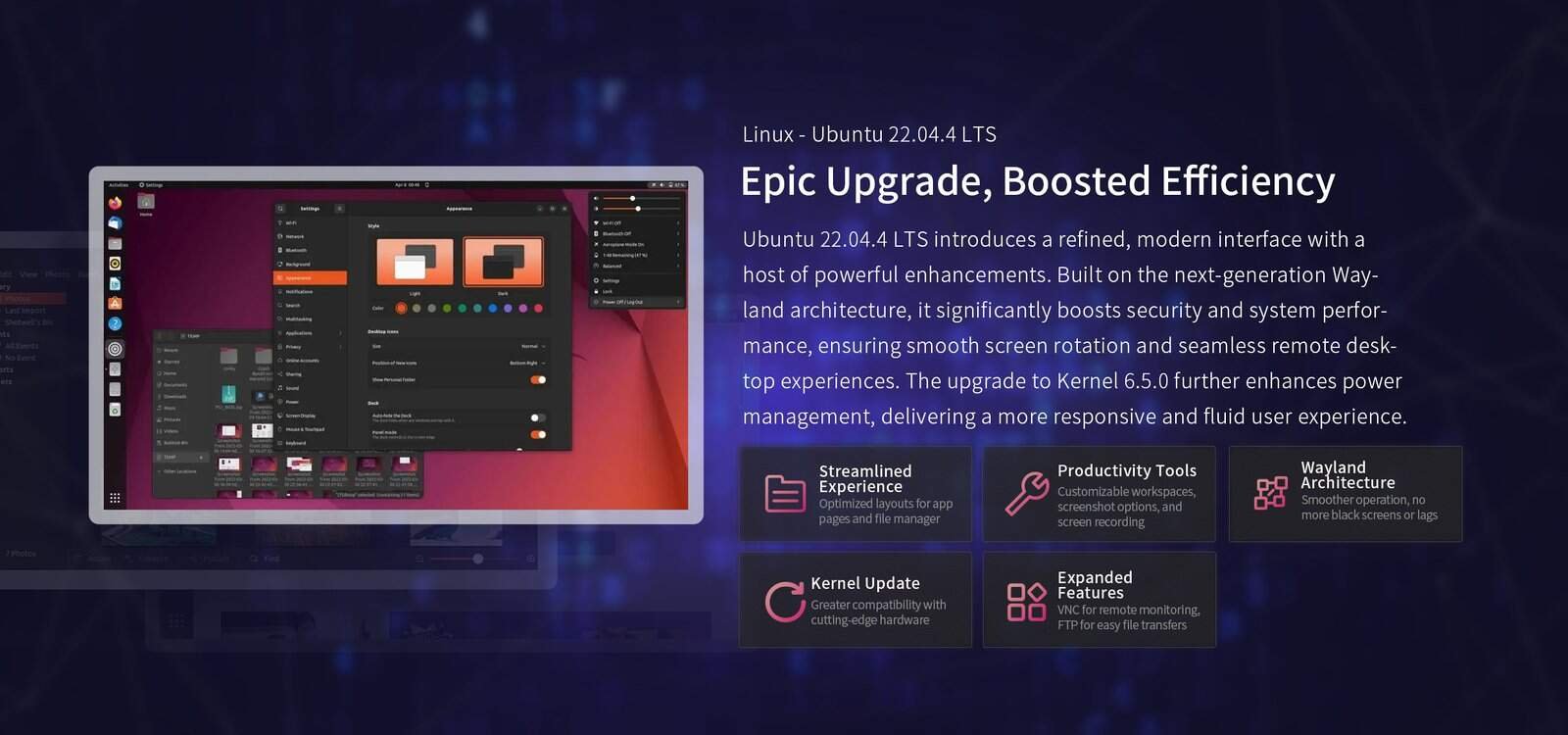

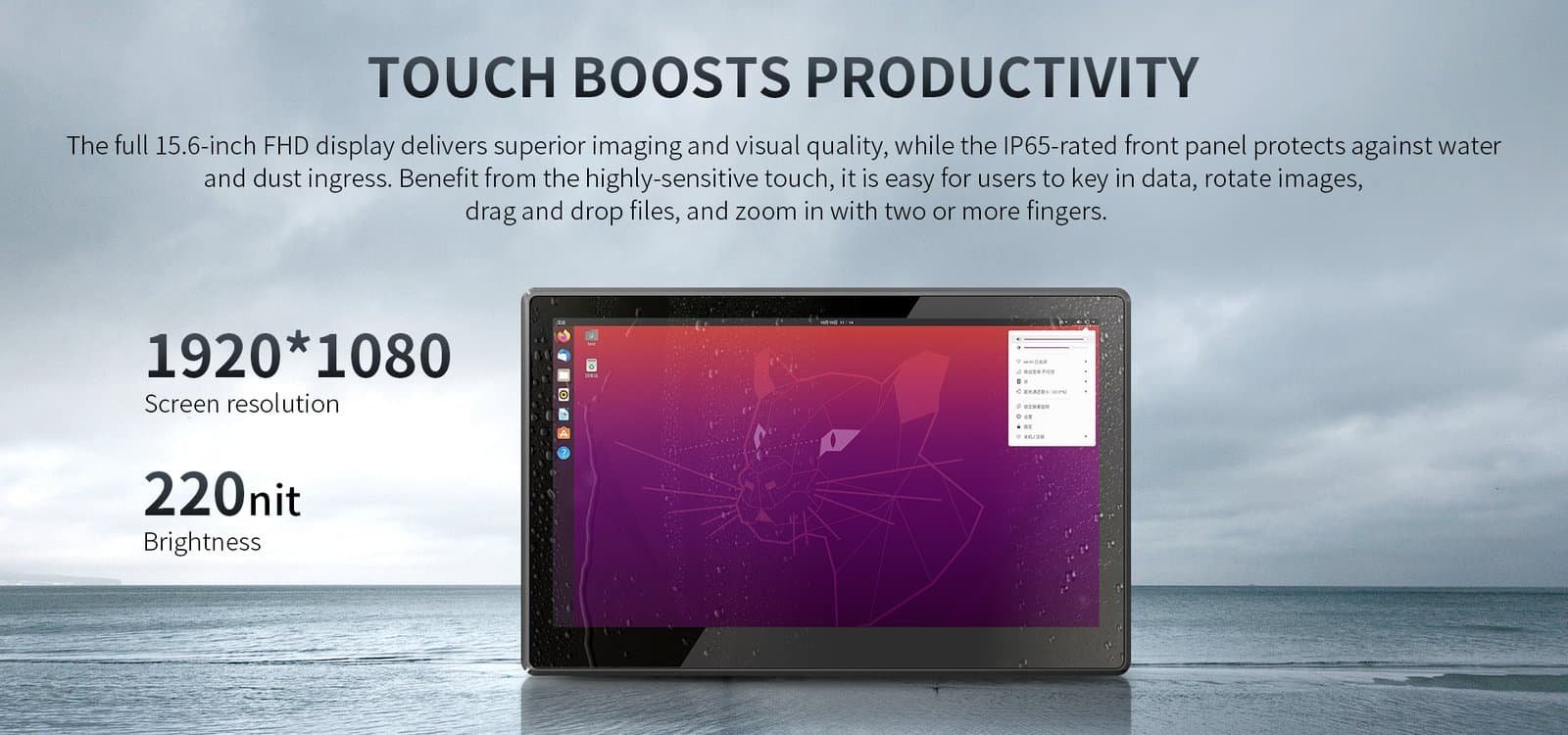

Industrial mainboard with Intel Celeron processor showcasing high performance and energy efficiency for embedded applications. Emdoor IPC embedded computer with Linux Ubuntu 22.04.4 LTS, showcasing a modern interface and enhanced performance features for industrial applications. Emdoor IPC touchscreen monitor with 1920x1080 resolution and 220 nits brightness, designed to boost productivity with high-quality display and easy touch interface. Emdoor IPC showcases a high-performance embedded computer with Intel Celeron processor, 10nm process, 4 cores, and turbo boost up to 2.8GHz, running Ubuntu 22.04.4. Emdoor IPC P15J fanless panel PC with reliable performance for industrial applications. Industrial P15J Panel PC with multiple USB, LAN, HDMI, and Ethernet ports for seamless connectivity and high-performance computing. Emdoor IPC panel designed for harsh environments with wide voltage support and extreme temperature resilience from -20°C to 60°C.

EM-P15J (Linux) / ACCESSORIES

Complete your industrial installation.

Choose the power, connectivity and mounting accessories listed for this model. Standard and optional items are shown separately to help you plan your installation.

Standard accessories

EM-P15J (Linux) 12V/4A adapter

Standard

12V/4A adapter

EM-P15J (Linux) Antenna

Standard

Antenna

EM-P15J (Linux) Panel mounting hook assembly

Standard

Panel mounting hook assembly

Build your accessory kit with our team.

Confirm connector type, power rating, mounting requirements and accessory availability for your selected configuration.

Discuss your EM-P15J (Linux) configuration →
