SIM card slot MICRO-SIM *1
Standard USB-A port/ Data transmission
Power interface DC input (Input: 12V)
PORT1 (M12-12) (optional)
100M network port
PORT2 (M12-12)(optional)
RS232*1+RS232/RS485 (standard) *1
PORT3 (M12-12) (optional)
USB2.0 *1+USB 2.0 (Default) /CAN*1 +CVBS*1
USB2.0 standard interface *2; Optional CAN
for customer debugging
Power adapter
12V 4A DC φ4.0 Adapter
WIFI
WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.0G (5.1G+5.8G)
Rockchip RK3568 + Android 12 for Efficient Fanless Industrial Deployment
Industrial Panel PC Highlights
Efficient ARM Computing for Industrial & Smart Applications
The P10R combines a Rockchip RK3568 processor, 4GB LPDDR4x onboard memory, 64GB eMMC storage and a fanless industrial design for Android HMI and embedded applications.
Wi-Fi 5, Bluetooth 5.0 and optional 4G LTE provide flexible connectivity for industrial and smart commercial deployments.
RK3568 4-Core ARM Processor
4GB + 64GB LPDDR4x + eMMC
Wi-Fi 5 + BT 5.0 Wireless Connectivity
Optional 4G LTE Mobile Data Support
Efficient ARM Computing
High Efficiency for Low-Power Industrial Computing
Powered by the Rockchip RK3568, the P10R provides 4-core ARM computing with speeds up to 2.0GHz for HMI interfaces, equipment terminals and embedded Android applications.
Mali-G52-2EE graphics and Android 12 provide a responsive platform for industrial visualization and control interfaces.
RK3568 Rockchip ARM Processor
4 Cores Quad-Core Computing
Up to 2.0GHz Max Frequency
Android 12 Operating System
Industrial HMI Display
Clear Touch Interaction for Android HMI Control

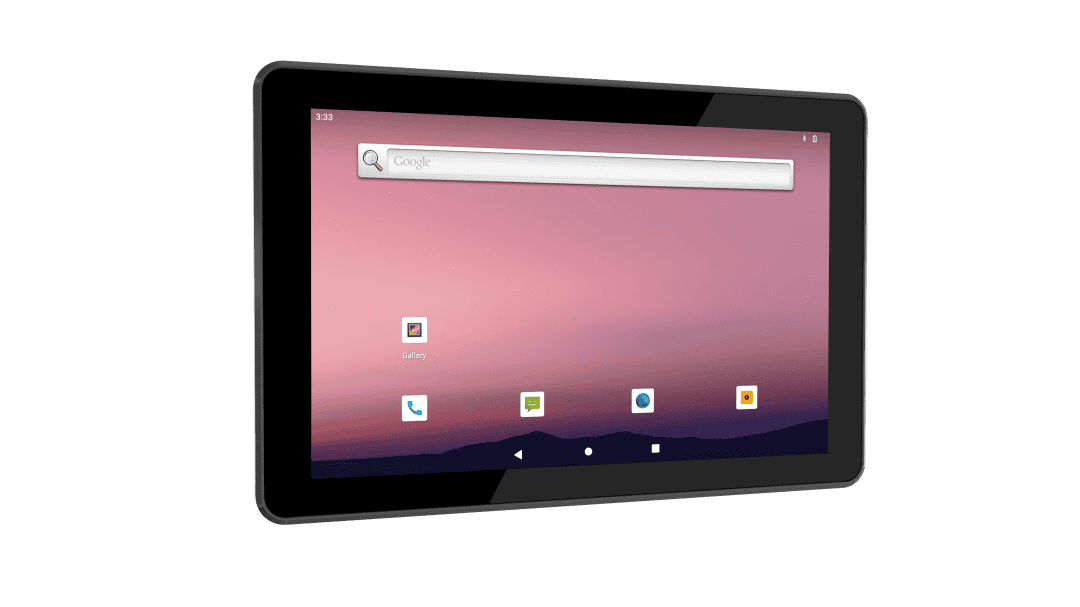

The P10R features a 10.1-inch LCD display with 800 × 1280 resolution and 700 nits brightness for HMI, monitoring and industrial dashboards.
A 10-point capacitive touchscreen supports multi-touch operation, while the IP65-compliant front panel provides front-side protection in industrial installations.
10.1-inch Industrial LCD
800 × 1280 Display Resolution
700 nits High Brightness
10-Point Touch IP65 Front Panel
Industrial Memory & Storage
Balanced Memory and Storage for Android Applications
The P10R comes with 4GB LPDDR4x onboard memory for Android HMI, equipment terminals and embedded edge applications.
Built-in 64GB eMMC stores the operating system and applications, while a dedicated Micro SD card slot provides additional storage flexibility.
4GB LPDDR4x Onboard Memory
64GB eMMC Internal Storage
Micro SD ×1 Storage Expansion
Android 12 Embedded OS Platform

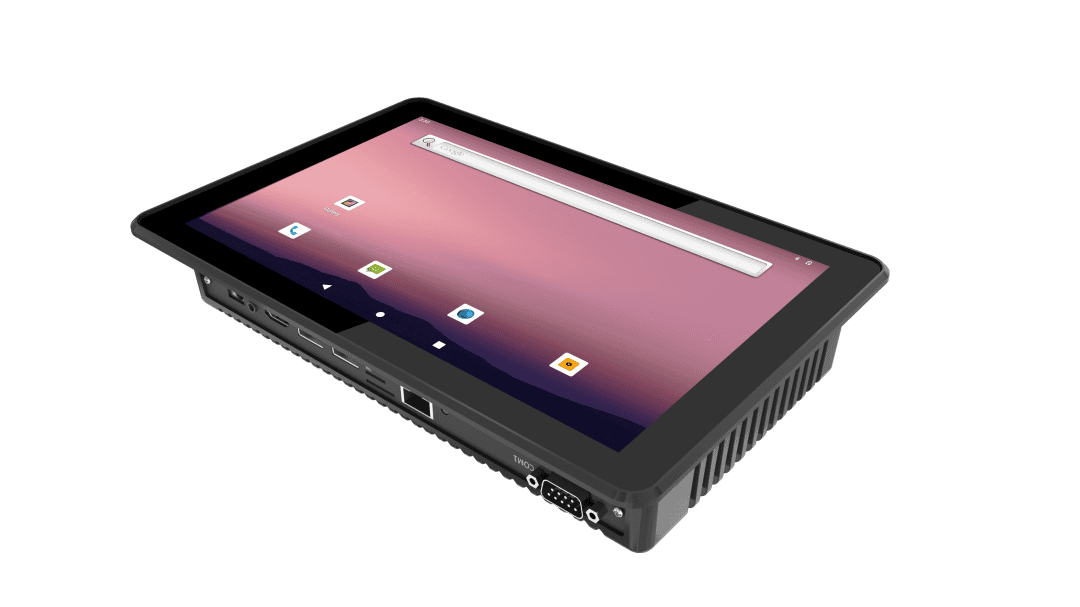

Comprehensive Industrial I/O
Rich Interfaces for Industrial Device Integration
The P10R provides industrial interfaces for controllers, scanners, sensors, displays and network equipment.
It includes 1 × USB 3.0, 1 × USB 3.0 OTG, 2 × USB 2.0, 1 × Gigabit RJ45, 2 × RS232, HDMI 2.0 and 2 × 3.5mm audio jacks. Optional serial configuration: 1 × RS232 + 1 × RS485.
USB 3.0 + OTG Plus 2 × USB 2.0
Gigabit RJ45 10 / 100 / 1000 Ethernet
2 × RS232 Optional RS232 + RS485
HDMI 2.0 + Audio Display & Audio
Industrial Wireless Connectivity
Fast and Reliable Wireless Connectivity
The P10R supports Intel® Wi-Fi 5 (802.11ac) and Bluetooth 5.0 for industrial HMI, equipment monitoring and smart terminal deployments.
Optional 4G LTE supports mobile data communication. The P10R provides SMA ×2, with optional SMA ×3.
Wi-Fi 5 802.11ac Wireless
Bluetooth 5.0 Peripheral Connectivity
Optional 4G LTE Mobile Data
SMA ×2 Optional SMA ×3
Industrial Reliability
Built for Reliable Industrial Operation

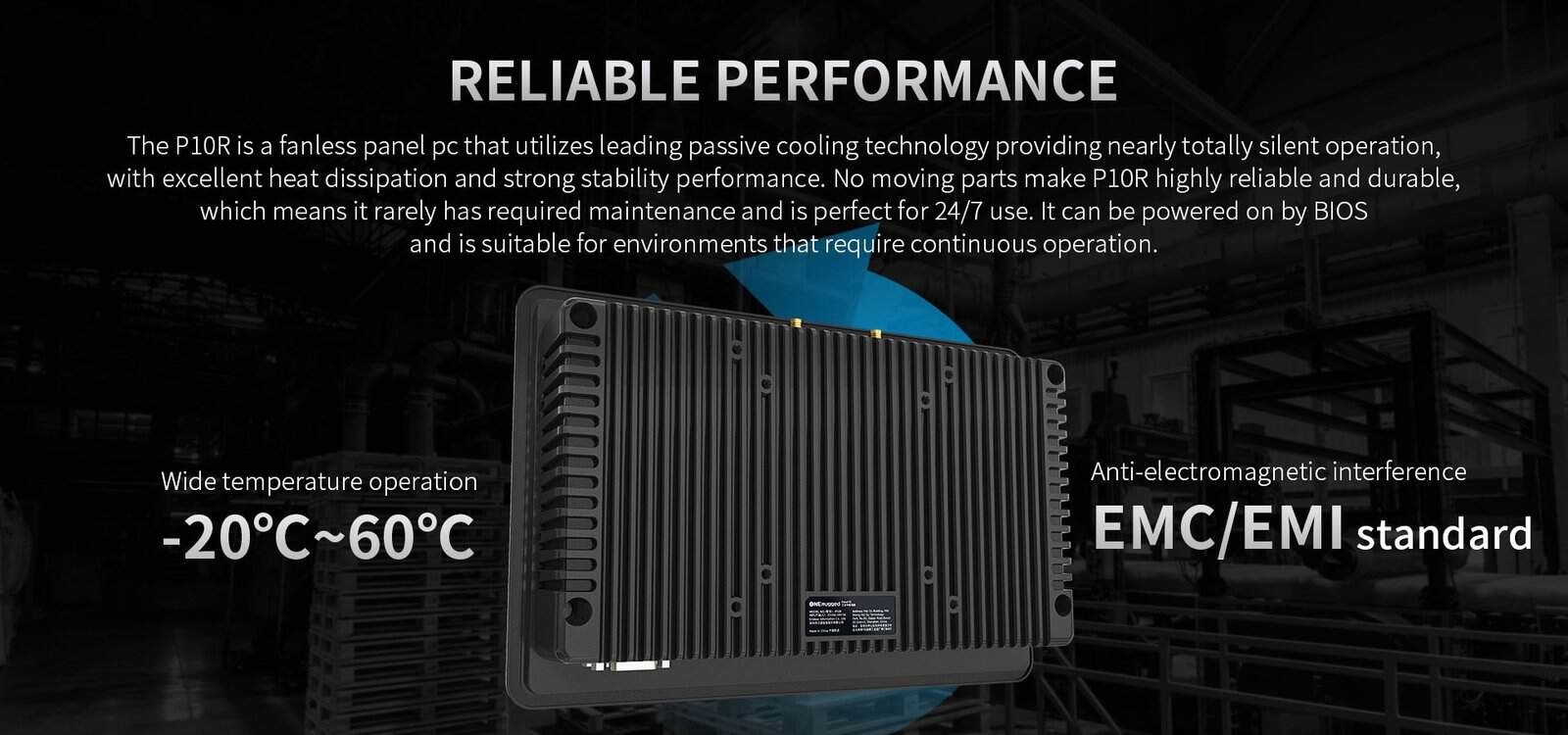

The P10R supports a wide -20°C to 60°C (-4°F to 140°F) operating range for industrial environments.
A 12–24V DC input, together with ±8kV contact discharge and ±15kV air discharge ESD protection, supports reliable fixed industrial deployment.
-20°C to 60°C Operating Temperature
12–24V DC Wide Voltage Input
±8kV Contact ESD Protection
±15kV Air ESD Protection
Flexible Industrial Deployment
Compact Design for Flexible Installation

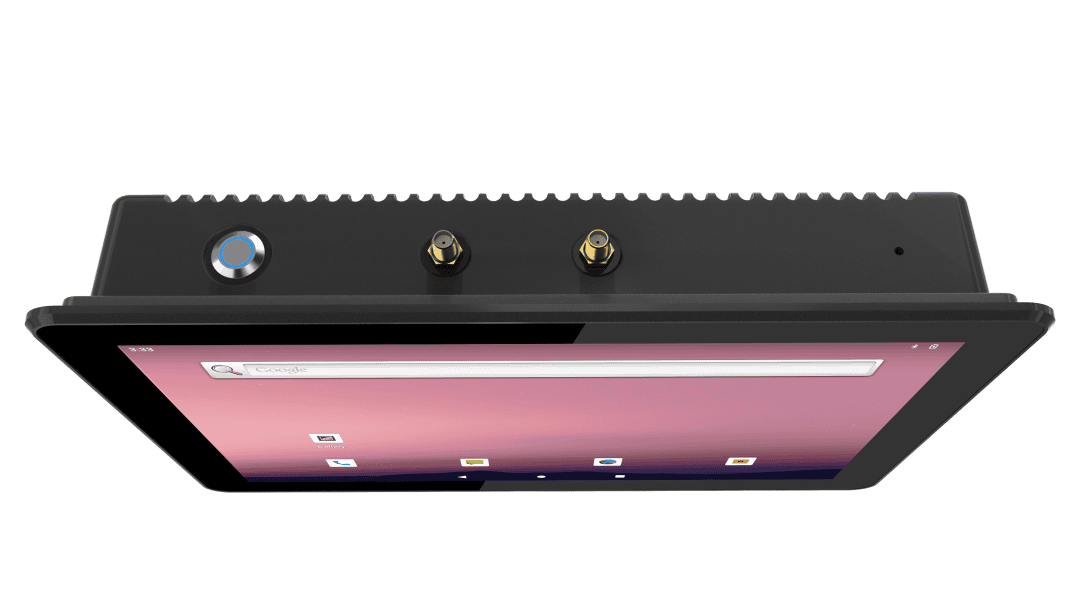

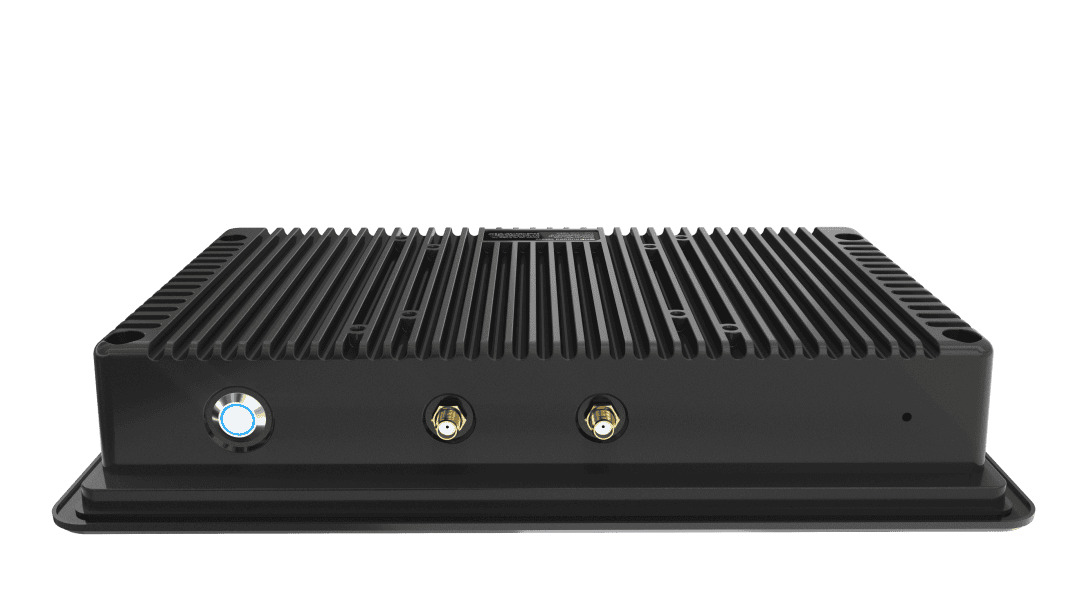

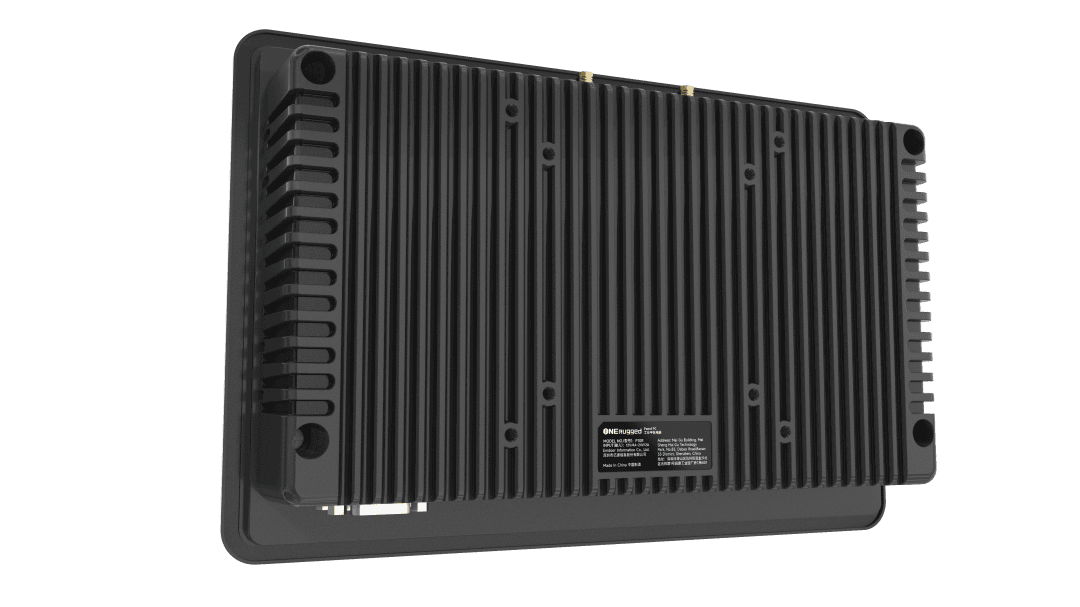

The P10R uses a compact fanless structure designed for integration into industrial equipment, HMI terminals and fixed edge computing systems.

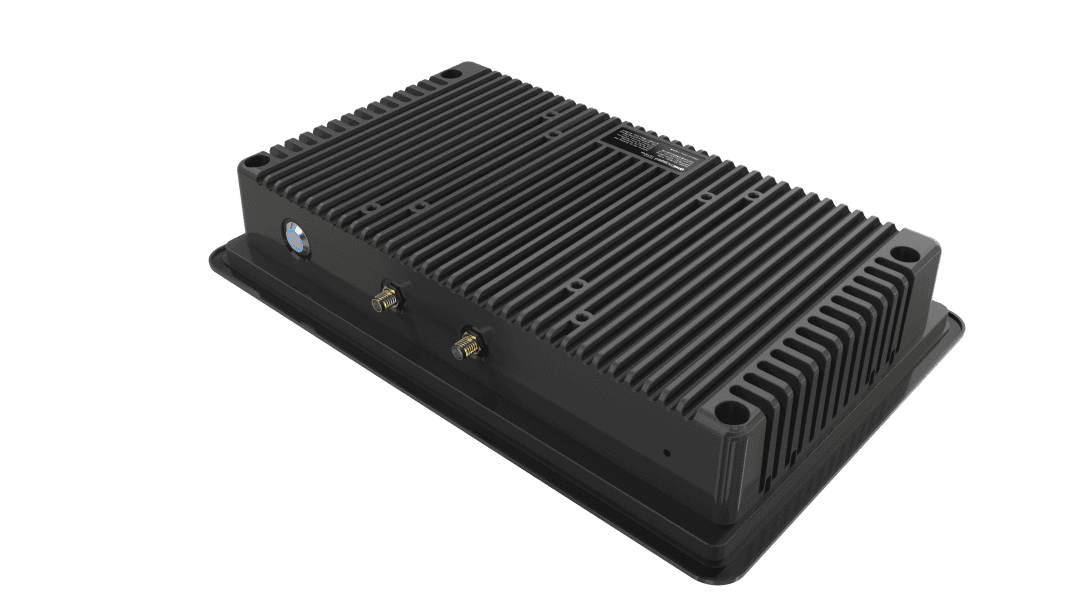

Standard hook assemblies support panel integration, while the product mounting design supports 75 × 75 mm and 100 × 100 mm rear mounting patterns.
Hook Assembly Standard Accessory
Compact Fanless Fixed Integration
75 × 75 mm Rear Mount Pattern
100 × 100 mm Rear Mount Pattern
Industrial Applications
One Platform for Versatile Applications
Combining efficient ARM computing, Android 12, industrial I/O and flexible installation, the P10R provides a practical platform for industrial edge and smart commercial applications.
Industrial Edge Computing Industrial terminal connectivity and edge data processing
Self-Service Terminals Interactive Android-based service interfaces
Smart Commercial Displays Interactive information and digital display applications
EM-P10R / ACCESSORIES
Complete your industrial installation.
Choose the power, connectivity and mounting accessories listed for this model. Standard and optional items are shown separately to help you plan your installation.
Standard accessories
Standard
12V/4A adapter
Standard
Antenna
Standard
Panel mounting hook assembly
Build your accessory kit with our team.
Confirm connector type, power rating, mounting requirements and accessory availability for your selected configuration.
