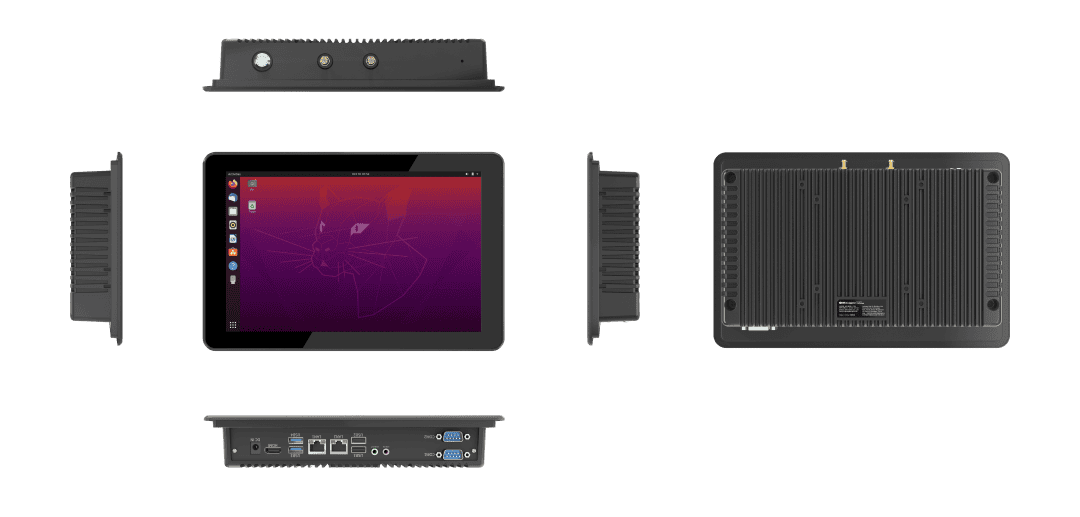

Emdoor IPC tablet displaying a Linux desktop with a purple and orange background featuring a stylized panther logo.
Emdoor IPC industrial panel computer with touchscreen display and multiple connectivity ports for industrial applications.

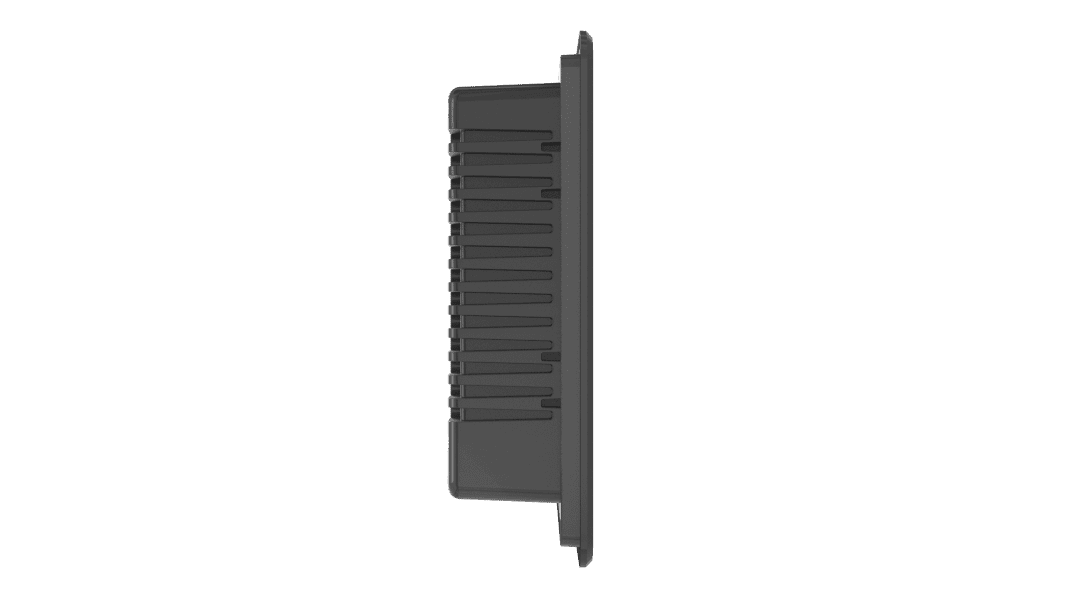

Black industrial panel with vertical ridges and mounting points, designed for embedded computing applications.
Industrial embedded computer with multiple ports including VGA, USB, HDMI, Ethernet, and serial interfaces for automation and control applications.
Industrial embedded computer module with multiple connection ports for industrial automation and IoT applications.
Emdoor IPC industrial computer with rugged design and multiple connectivity options for industrial automation.
Industrial-grade black electronic component with multiple pins, used in embedded systems and industrial automation.

EM-P10J (Linux) Intel Celeron N5100 10.1 Inch Linux Industrial PC

4.5 / 150 Reviews

Categories ,

Overview

Choose Intel Celeron N5100 10.1 inch Industrial panel pc Linux from Emdoor, leading industrial panel pc company in China. The Linux 10” panel pc with touch screen is fanless with low consumption. More custom modules are available.
  • CPU: Intel® Celeron® Processor N5100
  • Operating system: Ubuntu22.04.4
  • Resolution: 800*1280
  • Screen size: 10.1 inches

Certifications & protection

CECEFCCFCCCCCCCCFront panel IP65MIL-STD-810H
Get a quoteContact Us
Facebook-f Youtube Linkedin-in X-twitter

Additional information

Dimensions

257.2*170*45.95mm

Machine weight

1.2kg

Machine color

Black

Display

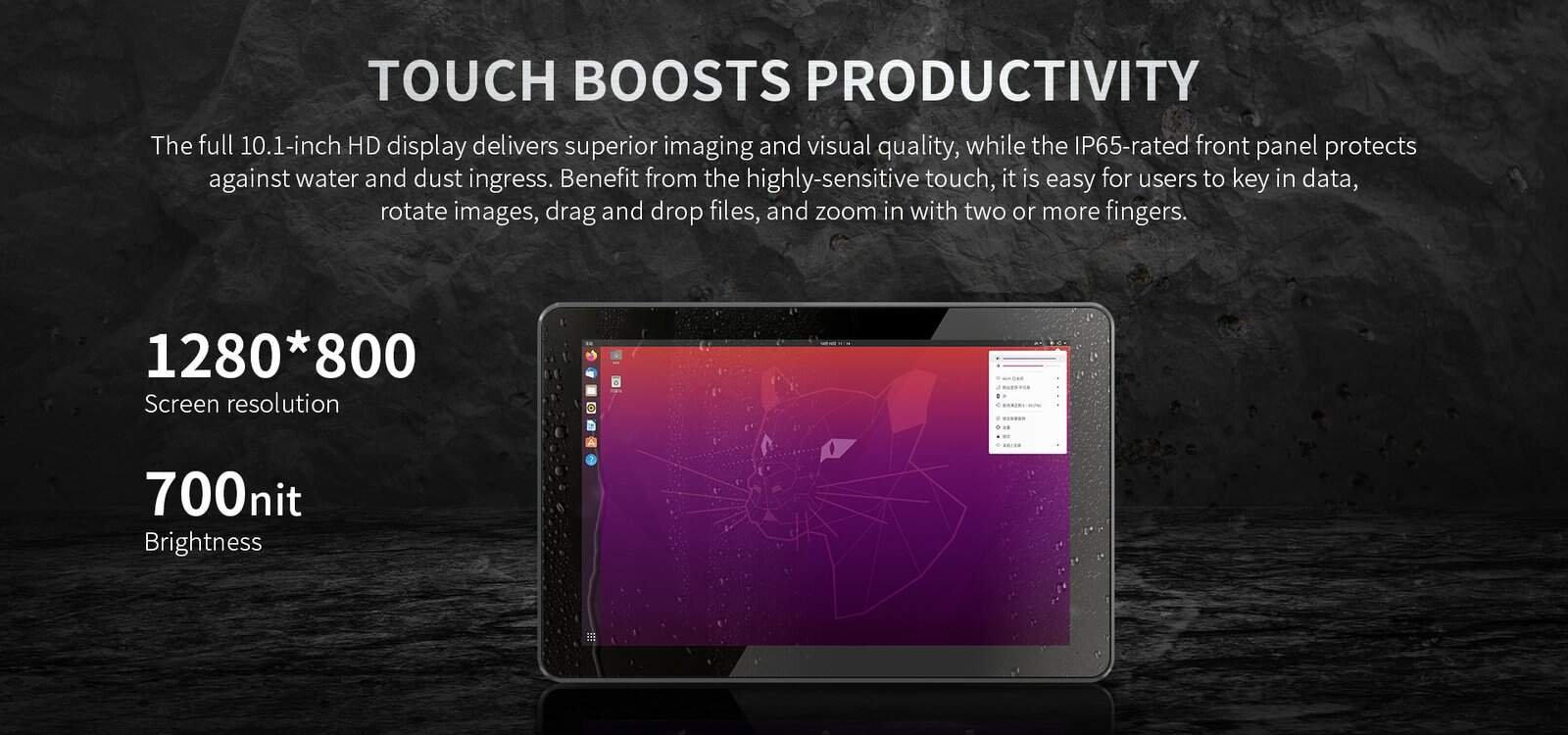

10.1 inch LCD 16:10,resolution: 800×1280,700 Nits

Touch screen

10 PCAP, G+G

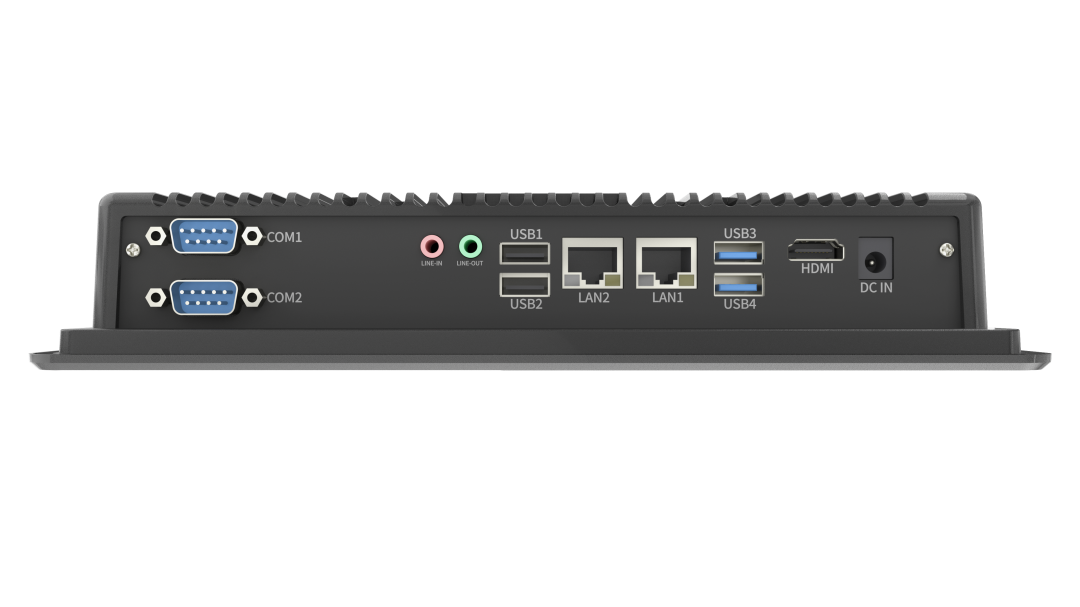

I/O Interface

Standard USB-A
USB3.0*2 +USB2.0*2
Power interface
DC IN 12V-24V Power connector *1
∮3.5mm Standard Earphone Jack *1
RJ45 *2
DB9 PORT RS232 *2
(Can be changed through the jumper cap on the board：RS485*1，RS232*1)
HDMI 2.0a *1

Power adapter

AC100V ~ 240V、50Hz/60Hz output DC 12V/4A

WIFI

WIFI 802.11 (a/b/g/n/ac), frequency: 2.4G+5G dual frequency WIFI

Bluetooth

BT5.0

2G/3G/4G/5G

2G/3G/4G

CPU

Intel® Celeron® Processor N5100

Operating system

Ubuntu22.04.4

Memory

8GB

Storage capacity

128GB

NFC

No

1D/2D

No

Fingerprint

No

Operating temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity

95% Non-Condensing

Protection level

IP65 certified, MIL-STD-810H certified

Drop height

1.22m drop resistance

Description

View EM-P10J (Linux) accessories ↓

Industrial front panel with oversized design featuring a 21.5-inch capacitive touch screen with 1920x1080 resolution and 250 nits brightness, suitable for industrial applications. Industrial automation and control systems including manufacturing, control room, power lines, and communication towers. Industrial automation and control systems including manufacturing, control room, power lines, and communication towers. Industrial automation and control systems including manufacturing, control room, power lines, and communication towers. Industrial automation and control systems including manufacturing, control room, power lines, and communication towers. Industrial automation and control systems including manufacturing, control room, power lines, and communication towers. Industrial automation and control systems including manufacturing, control room, power lines, and communication towers. Industrial automation and control systems including manufacturing, control room, power lines, and communication towers.

EM-P10J (Linux) / ACCESSORIES

Complete your industrial installation.

Choose the power, connectivity and mounting accessories listed for this model. Standard and optional items are shown separately to help you plan your installation.

Standard accessories

EM-P10J (Linux) 12V/4A adapter

Standard

12V/4A adapter

EM-P10J (Linux) Antenna

Standard

Antenna

EM-P10J (Linux) Panel mounting hook assembly

Standard

Panel mounting hook assembly

Build your accessory kit with our team.

Confirm connector type, power rating, mounting requirements and accessory availability for your selected configuration.

Discuss your EM-P10J (Linux) configuration →
