EM-D10R 10.1 Inch Android 12 Industrial Digital Signage
Emdoor IPC industrial computer with rugged design and multiple connectivity options for embedded applications.
Industrial embedded computer with multiple USB ports, Ethernet, and power input, designed for industrial automation and IoT applications.
Emdoor IPC industrial computer with rugged design and multiple ports for industrial applications.
Industrial wireless communication module for embedded systems and IoT applications by emdooripc.
Industrial-grade embedded computer module with rugged design for industrial automation and IoT applications.

EM-D10R 10.1 Inch Android 12 Industrial Digital Signage

4.5 / 150 Reviews

Category

Overview

10.1 Inch Android 12 Industrial Digital Signage
  • CPU: RK3568
  • GPU: Mali-G52-2EE
  • Operating system: Android 12
  • RAM: 4GB Onboard
  • Storage: 64 GB

Get a quoteContact Us
Facebook-f Youtube Linkedin-in X-twitter

Additional information

Dimensions

315mm*168mm*38mm

Machine weight

TBD

Machine color

Black (Optional: Silver)

Display

10.1-inch LCD 16:10, resolution 800×1280, 700nits

Touch screen

10-point capacitive touch

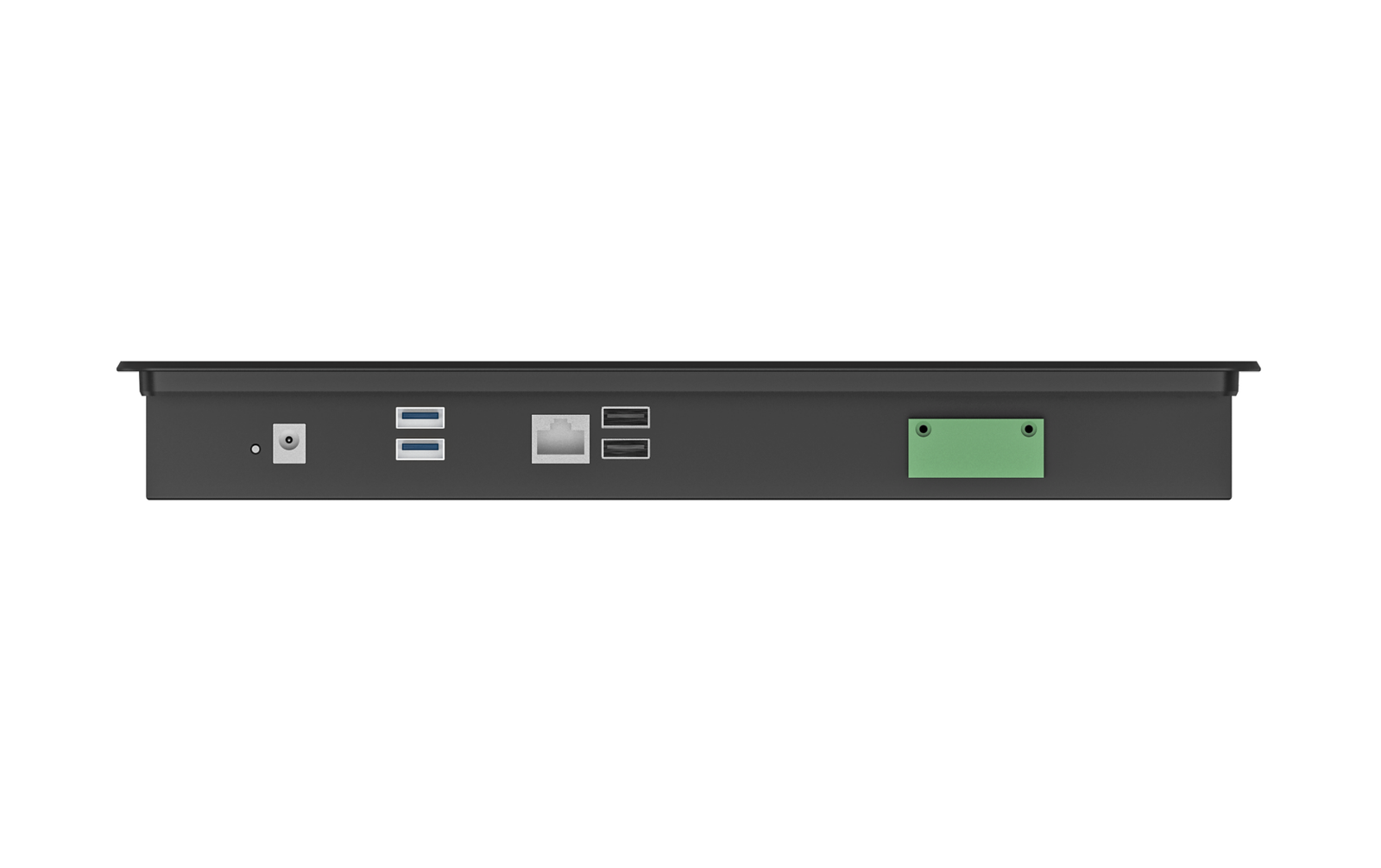

I/O Interface

SIM *1 TF*1 (Internal)
TypeA USB (External)
USB3.0*1+USB3.0*1OTG+USB2.0*2
Power Port
DC 12V *1+Phoenix Terminal
RJ45 *1 (10/100/1000M Adaptive)

Power adapter

6th-Level Desktop DC Adapter (Category 5/12V4A),
Input: 100~240V AC 50/60Hz
Output: 12VDC 4.0A, UL2464, 20AWG

WIFI

WIFI 802.11 (a/b/g/n/ac) 2.4G+5G

Bluetooth

BT5.0

2G/3G/4G/5G

4G（Optional）

CPU

RK3568

GPU

Mali-G52-2EE

Operating system

Android 12

Memory

4GB

Storage capacity

64GB

NFC

Yes

1D

Optional

2D

Optional

Fingerprint

No

Operating temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity

95%, no condensation

Protection level

IP65 of Front Panel

Description

Overview

The EM-V10J is a 10.1-inch rugged Windows 10 vehicle PC designed for in-vehicle applications. Powered by the Intel® Celeron® N5100, it delivers reliable performance, vibrant visuals, and robust connectivity for fleet management, logistics, and field operations.

Key Features

  • Powerful Processing: Intel® Celeron® N5100 (quad-core) with Intel® HD Graphics Gen 11 LP, 8GB RAM + 128GB storage for efficient in-vehicle computing.

  • Sunlight-Readable Display: 10.1″ IPS (800×1280, 1000 nits) with multi-point touch and custom shortcut buttons for enhanced productivity.

  • Rugged Design: IP65-rated, shock/vibration-resistant, operates from -20°C to 60°C for 24/7 reliability.

  • Robust Connectivity: 4G LTE, dual-band Wi-Fi, Bluetooth 5.1, GNSS (GPS/GLONASS/Beidou), NFC, with expandable I/O (USB, RS232, RS485, CAN, Ethernet).

  • Flexible Power & Mounting: 9-36V/20-80V wide voltage, aviation plug charging, optional 7.4V/1000mAh battery, VESA/RAM mounts for forklifts, trucks, and cranes.

  • Clear Audio: 2W rear speaker for noisy environments.

Applications

Ideal for fleet management, logistics, asset tracking, and vehicle-based operations in forklifts, cranes, and trucks.

Optimize your in-vehicle operations—request a demo or quote today!

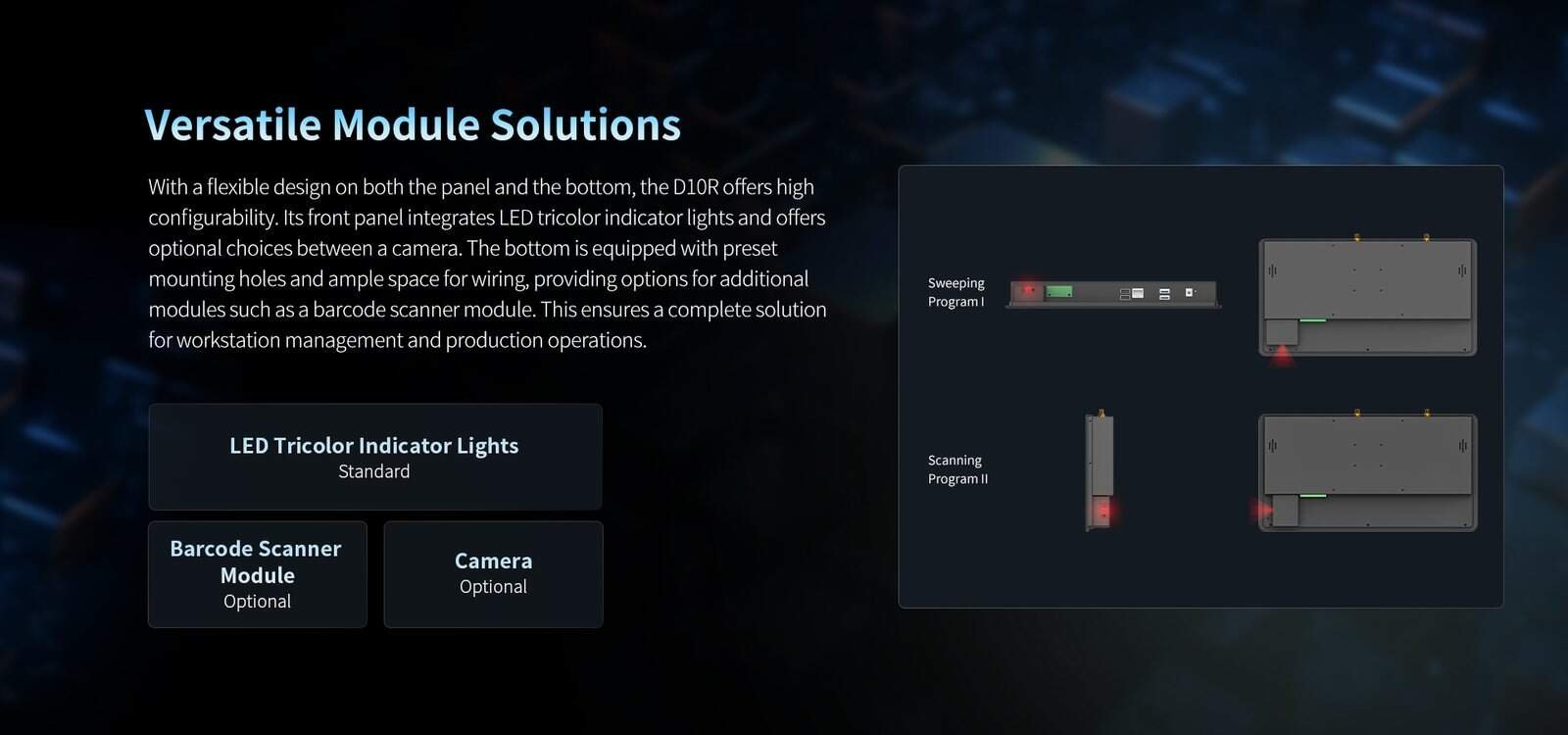

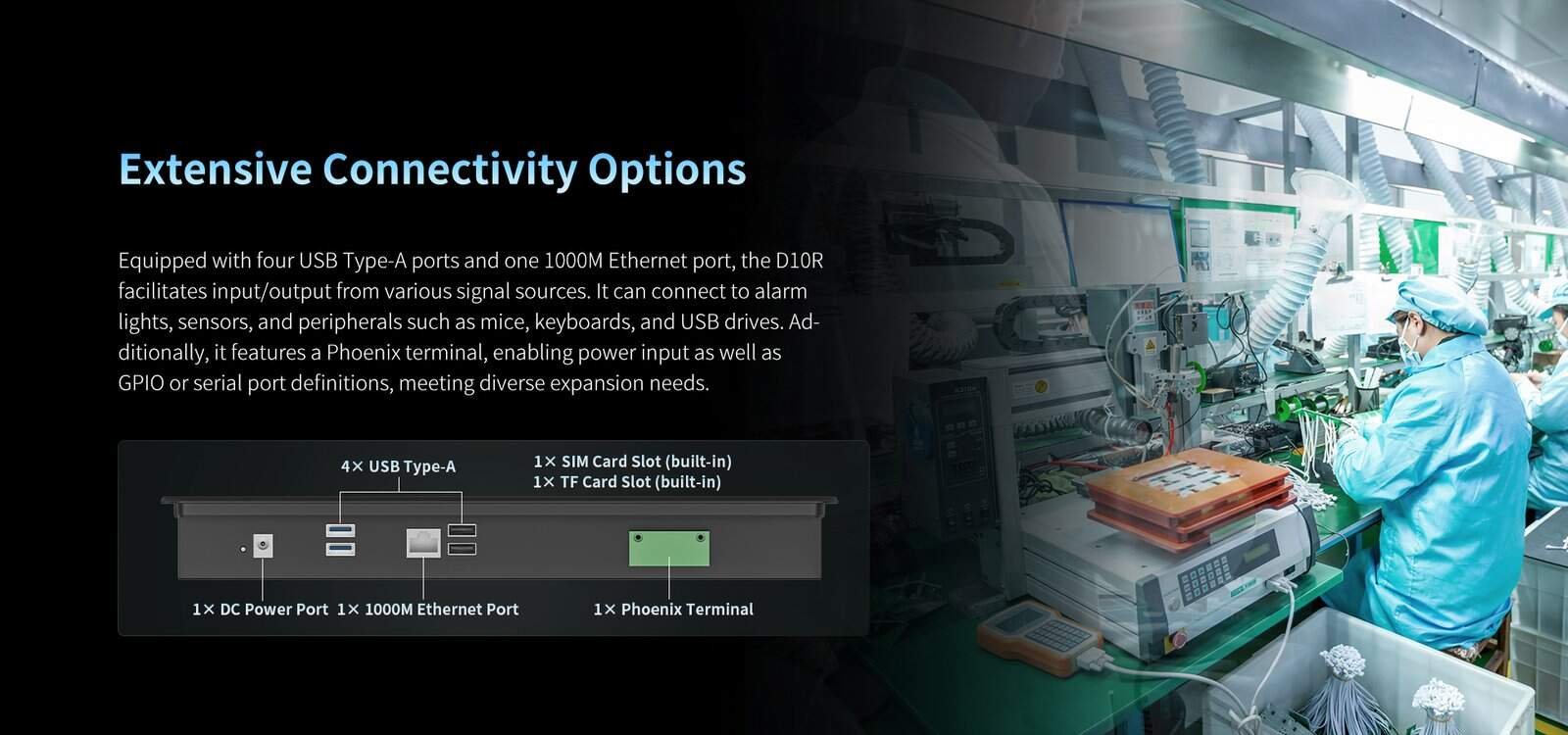

D1OR versatile digital signage for workstations in industrial environment, enhancing communication and operational efficiency with cost-effective solutions. Industrial touchscreen monitor for factory automation and equipment data collection with high integration and stability. IP65-rated front panel display with NFC technology, 10.1-inch screen, high brightness, suitable for industrial manufacturing and apparel applications. Robust industrial computer with multiple connectivity options, including USB Type-A ports, Ethernet, and a Phoenix terminal, designed for manufacturing and automation applications. Flexible configuration modules for digital signage, barcode scanners, and cameras, featuring LED indicator lights for efficient workstation management and production operations. AI high-performance computing device showcasing industrial-grade chip technology and advanced AI capabilities for demanding applications. Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0 connection capabilities for high-speed, reliable hybrid networking technology. High-quality industrial automation machinery in a modern factory environment, supporting 24/7 operation and wide voltage and temperature ranges for reliable performance.
