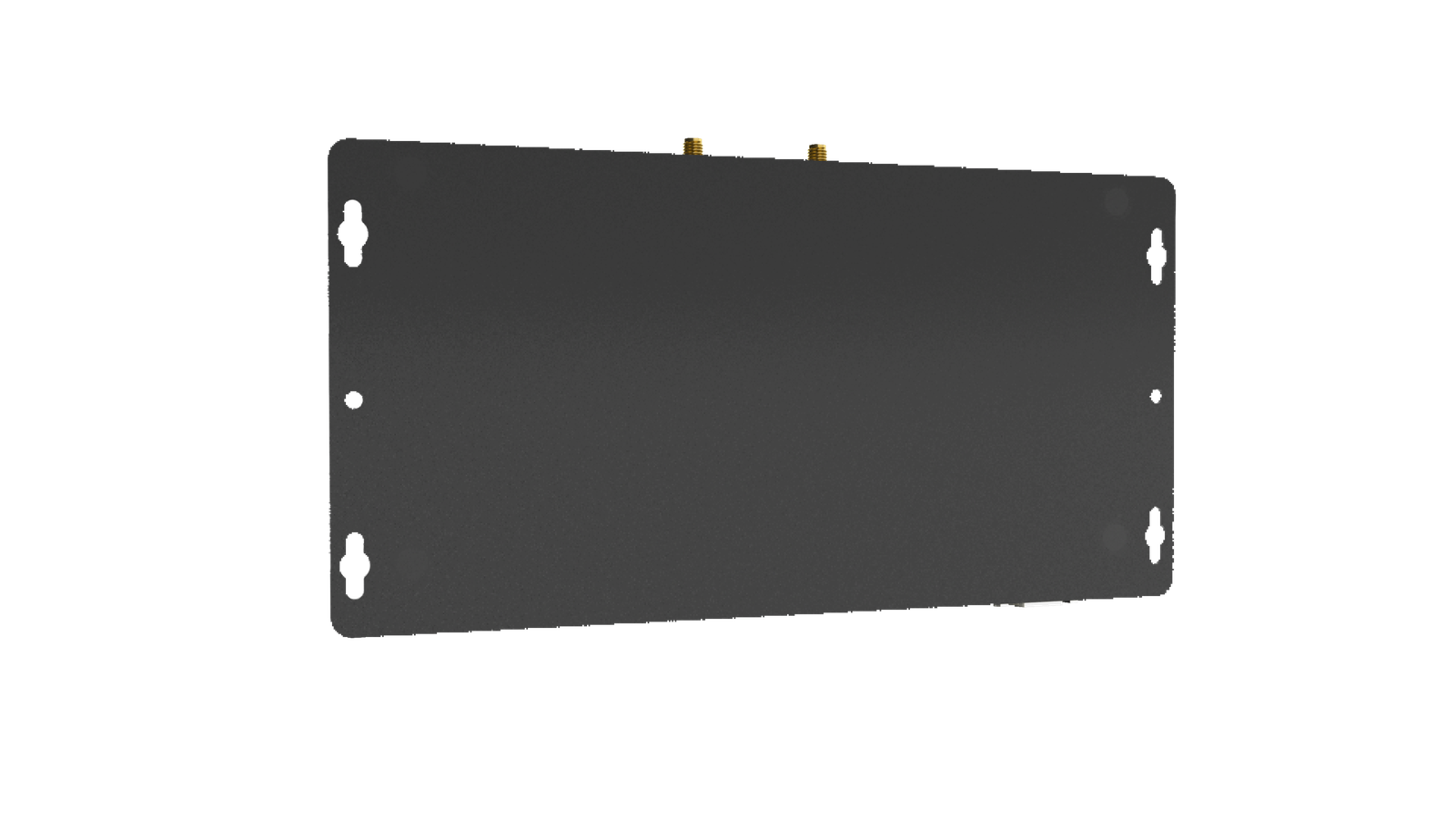

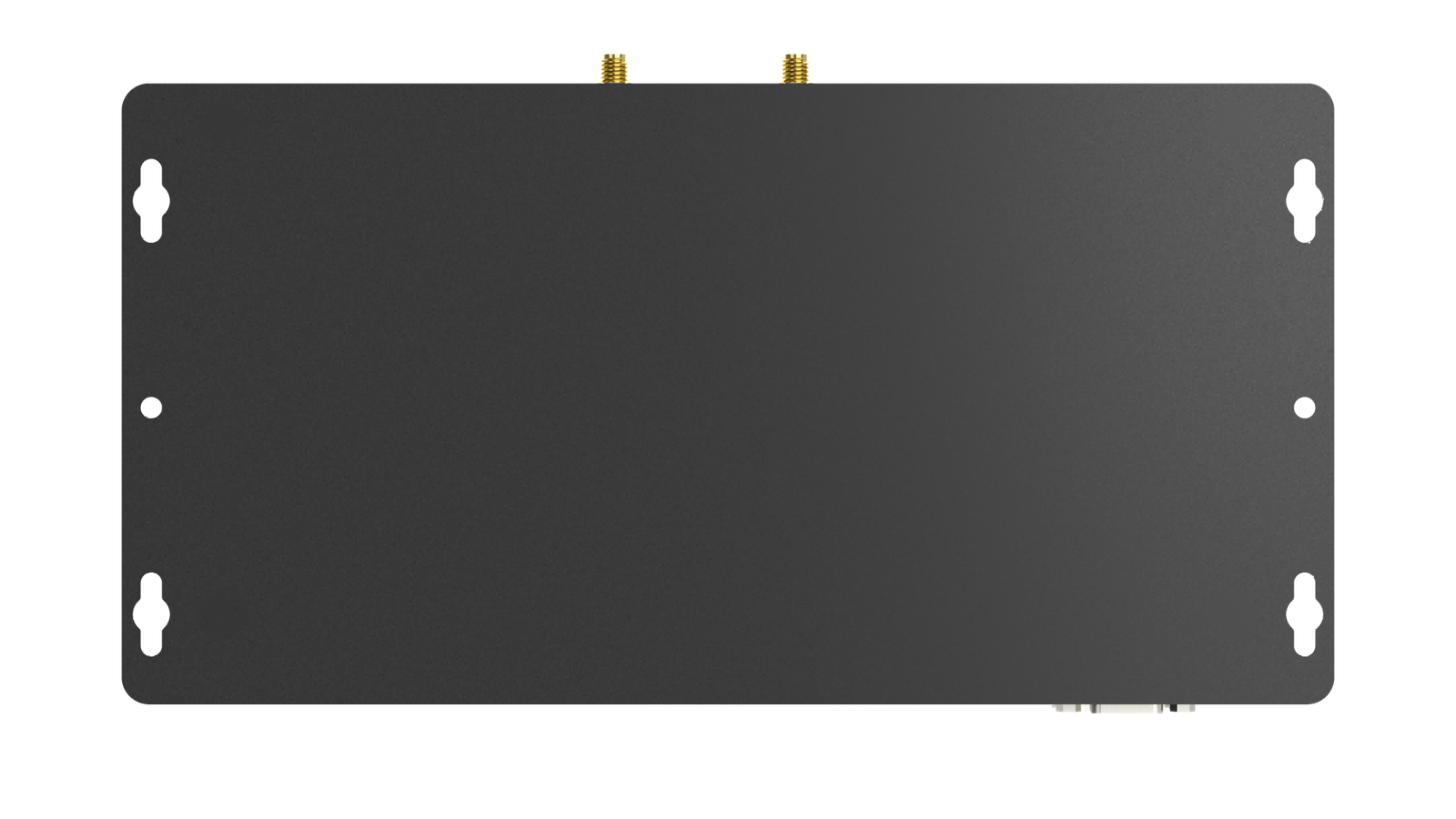

Black industrial panel with mounting holes and connectors, used in embedded systems or industrial automation.
Industrial embedded computer with multiple ports including VGA, USB, HDMI, LAN, and power input, designed for automation and control applications.

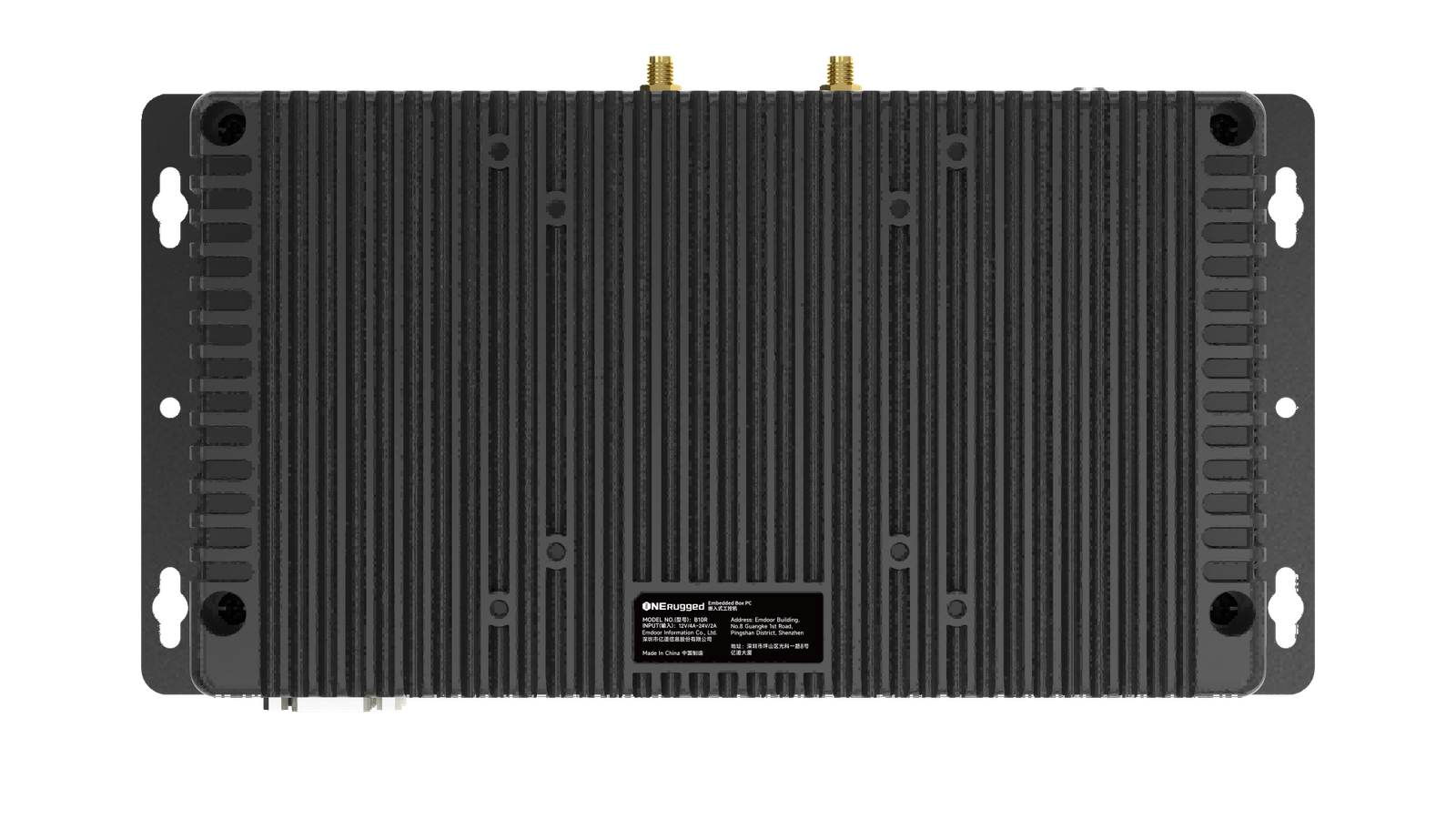

Industrial-grade embedded computer with rugged design and heat sink for reliable performance in harsh environments.
Black industrial computer with multiple ports and connectors, designed for embedded systems and automation applications.
Emdoor IPC industrial computer with multiple USB ports, HDMI, VGA, and Ethernet connections for embedded applications.
Emdoor IPC industrial computer with compact design and multiple connectivity ports for embedded applications.
Industrial-grade embedded computer with heat sink and multiple connection ports for industrial automation and IoT applications.
Industrial embedded computer with heat sink design, suitable for automation and IoT applications by emdooripc.
Close-up of industrial panel with multiple ports and connectors for embedded computing applications.

EM-B10R-Rockchip RK3568 Fanless Embedded BOX PC

4.5 / 150 Reviews

Categories ,

Overview

B10R Industrial Embedded PC: RK3568 and Android 12 drive rugged computing. Dual-band WiFi 5 & BT5.0 with 4G expansion. Modular chassis deploys wall/desktop/embedded setups across smart manufacturing, CNC, medical IoT nodes.
  • CPU: RK3568
  • GPU: Mali-G52-2EE
  • Operating system: Android 12
  • RAM: 4GB Onboard
  • Storage: 64 GB
Get a quoteContact Us
Facebook-f Youtube Linkedin-in X-twitter

Additional information

Dimensions

264 mm (L) × 135.2 mm (W) × 37.2mm (H)

Machine weight

671g

Machine color

Black

I/O Interface

· Micro SD card x1
· SIM card x1
· USB 3.0 (Type-A) x1
· USB 3.0 OTG (Type-A) x1
· USB 2.0 (Type-A) x2
· 3.5mm audio jack x2
· HDMI 2.0 (Type-A) x1
· 10/100/1000 Ethernet (RJ45) x1
· Serial port (RS232: D-sub, 9-pin) x2
Optional RS232 x1/RS485 x1
· 5.5mm DC-in jack x1 (support 12-24V)
· SMA x2 (optional SMA x3)

Power adapter

AC adapter: 100-240V, 50Hz-60Hz, 48W (12V/4A)

WIFI

Wi-Fi 5

Bluetooth

Bluetooth® 5.0

2G/3G/4G/5G

Optional 4G LTE

CPU

RK3568

GPU

Mali-G52-2EE

Operating system

Android 12

Memory

4GB

Storage capacity

64GB

NFC

No

1D

No

2D

No

Fingerprint

No

Operating temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity

95%, no condensation

Description

EMBEDDED BOX PC

B10R Embedded Box PC

Built Solid. Ready to Deploy.

A rugged, fanless embedded computing platform powered by Rockchip RK3568, designed for stable 24/7 operation, flexible industrial connectivity, and reliable edge deployment.

Rockchip RK3568Fanless Rugged DesignRich Industrial I/O24/7 Operation
B10R Embedded Box PC with Rockchip RK3568 for industrial embedded computing
B10R Embedded Box PC key highlights with Rockchip RK3568 processor and industrial I O

Key Highlights

Built for reliable industrial computing, the B10R combines Rockchip RK3568 processing, 4 GB memory, 64 GB storage, rich industrial I/O, stable wireless connectivity, and a rugged fanless design for continuous operation.

Rockchip RK3568Processor
4 GB RAMSystem Memory
64 GB ROMInternal Storage
24/7Continuous Operation
Rich Industrial I/OFanless Rugged DesignWi-Fi 5Bluetooth 5.0Optional 4G

High Efficiency, Low Power

Powered by the industrial-grade Rockchip RK3568 ARM processor, the B10R delivers strong computing performance with excellent power efficiency for demanding industrial and edge applications.

1 TOPSNPU Performance
Cortex-A55Quad-Core CPU
Up to 2.0 GHzMax CPU Frequency
Android 12Operating System
RK3568ARM ArchitectureLow-Power ComputingIndustrial Edge Computing
B10R Embedded Box PC high efficiency low power performance with Rockchip RK3568
B10R Embedded Box PC with 4 GB LPDDR4x memory and expandable eMMC storage

Balanced Storage, Flexible Expansion

The B10R comes standard with 4 GB LPDDR4x RAM and 64 GB eMMC storage, with a Micro SD slot supporting expansion up to 512 GB for flexible industrial deployment.

4 GB LPDDR4xSystem Memory
64 GB eMMCStandard Storage
Up to 512 GBMicro SD Storage Expansion
64 GB eMMCMicro SD ExpansionUp to 512 GBFlexible Storage

Comprehensive I/O, Plug & Play

Comprehensive industrial I/O—including Gigabit Ethernet, RS232, USB, HDMI, and audio interfaces—enables direct integration with industrial peripherals, sensors, displays, and network equipment without additional expansion cards.

2 × RS232Serial Communication
2 × USB 2.0Peripheral Connectivity
2 × USB 3.0High-Speed Data Transfer
1 × RJ45Gigabit Ethernet
HDMILine In / OutDC InputRich Industrial I/OPlug & Play
B10R Embedded Box PC industrial I O with RS232 USB Gigabit Ethernet and HDMI
B10R Embedded Box PC Wi Fi 5 Bluetooth 5.0 and optional 4G connectivity

Uninterrupted Connectivity

Standard Wi-Fi 5 and Bluetooth 5.0, with an optional 4G module and enhanced triple-antenna design, help maintain stable wireless connections even in complex industrial environments.

2.4 GHz / 5 GHzDual-Band Wireless Connectivity
867 MbpsMax Theoretical Speed
Wi-Fi 5Bluetooth 5.0Optional 4GTriple-Antenna DesignStable Industrial Connectivity

Built for Harsh Environments

Wide-temperature and wide-voltage operation, combined with strong EMI immunity and multi-layer electrical protection, enables the B10R to maintain reliable 24/7 operation in demanding industrial environments.

-4°F to 140°FOperating Temperature
12–24 V DCWide-Voltage Input
ESD ProtectionElectrostatic Protection
Surge ProtectionEOS Protection Supported
OVPOver-Voltage Protection
EMI ImmunityIndustrial Electrical Reliability
24/7 Continuous OperationDesigned for long-term industrial deployment
B10R Embedded Box PC built for harsh industrial environments
B10R Embedded Box PC flexible deployment with wall mounting and VESA mount

Compact, Flexible Deployment

The fully enclosed fanless chassis helps resist dust and vibration, while flexible mounting options support embedded, wall-mounted, and desktop deployment for fast integration into industrial environments.

Embedded MountingEasy integration into industrial equipment
Wall MountingFlexible installation in limited spaces
Desktop MountingCompact deployment for workstations and control systems
4 Hook AssembliesMounting accessories included
VESA 75 × 75 mm / 100 × 100 mmSupports standardized VESA mounting for flexible industrial installation

One Platform, Versatile Applications

From industrial edge gateways and self-service kiosks to digital signage, the B10R delivers the connectivity, computing performance, and deployment flexibility required across a wide range of industrial and commercial applications.

Industrial Edge GatewayConnect industrial equipment, sensors, and networks for reliable edge data processing and device control.
Self-Service KioskCompact fanless computing for terminals, information kiosks, access systems, and unattended service equipment.
Digital SignageStable multimedia and display control for retail, transportation, commercial spaces, and information systems.
B10R Embedded Box PC applications for industrial edge gateway self service kiosk and digital signage
