EMBEDDED BOX PC

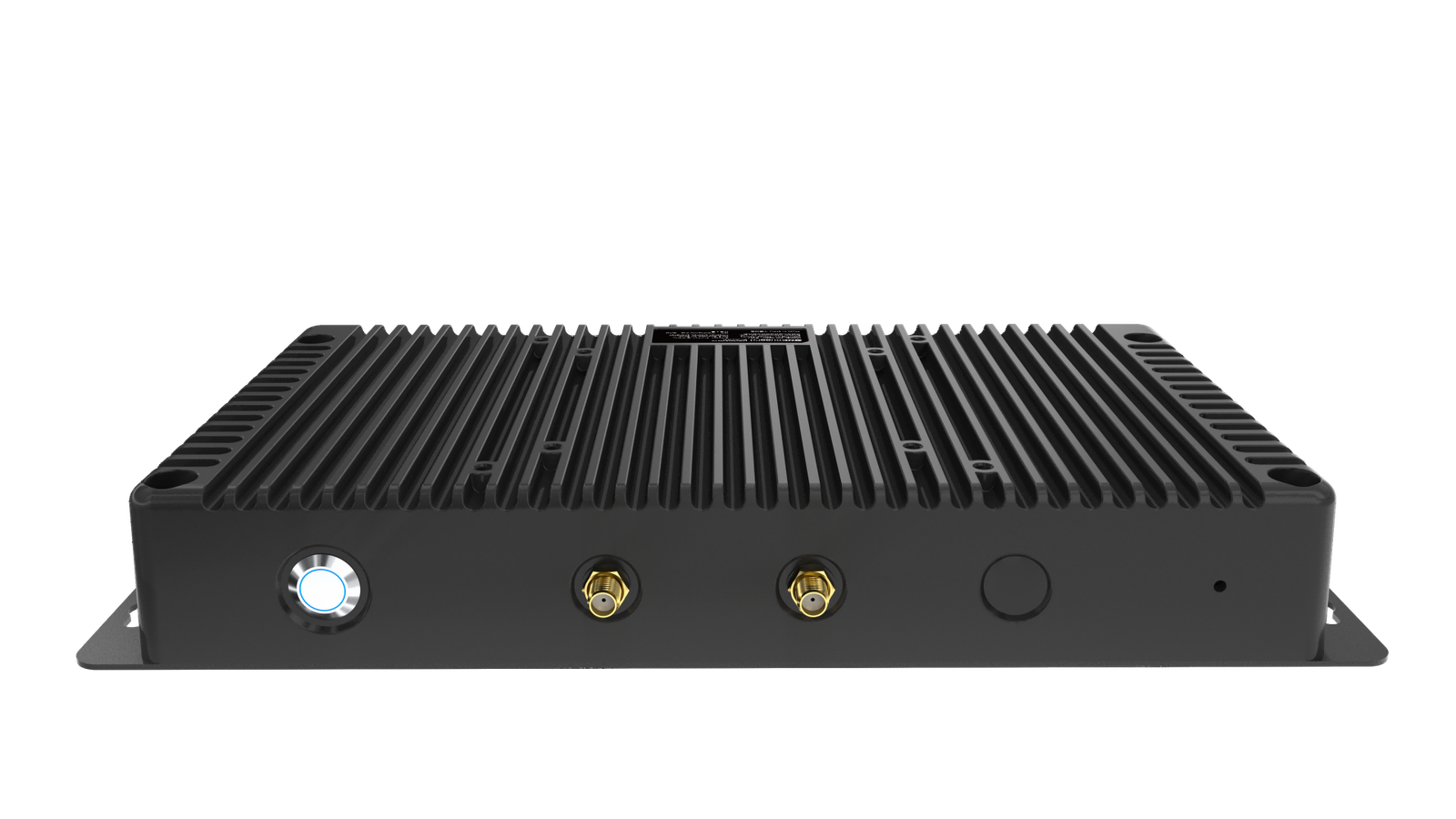

B10J Embedded Box PC
Balanced Power. Total Control.
A compact fanless embedded computing platform powered by Intel® Processor N5100, designed for reliable 24/7 operation, flexible connectivity, and stable industrial deployment.
Intel® Processor N5100Fanless DesignRich Industrial I/O24/7 Operation
Key Highlights
Built for reliable industrial computing, the B10J combines Intel® N5100 processing, 8 GB memory, 128 GB storage, rich industrial I/O, stable wireless connectivity, and a rugged fanless design for continuous operation.
Intel® N5100Processor
8 GB RAMSystem Memory
128 GBInternal Storage
24/7Continuous Operation
Rich Industrial I/OFanless Rugged DesignWi-Fi 5Bluetooth 5.1Optional 4G
Power-Efficient, Reliable Operation
Powered by the Intel® Processor N5100 with an onboard TPM 2.0 security chip, the B10J balances efficient computing performance with hardware-level data security for reliable light-industrial applications.
Intel® Jasper LakePlatform
4 Cores / 4 ThreadsEfficient Multi-Core Computing
Up to 2.8 GHzMax Turbo Frequency
TPM 2.0Hardware-Level Security
Windows 11Ubuntu OptionalLow-Power ComputingIndustrial Reliability
Flexible Expansion, Future-Ready
The B10J comes standard with 8 GB LPDDR4x RAM and a 128 GB SSD, with an M.2 SATA/PCIe slot supporting storage expansion up to 512 GB for flexible industrial deployment.
8 GB LPDDR4xSystem Memory
128 GB SSDStandard Storage
Up to 512 GB SSDM.2 SATA / PCIe Storage Expansion
128 GB SSD256 GB Optional512 GB OptionalM.2 SATA / PCIe

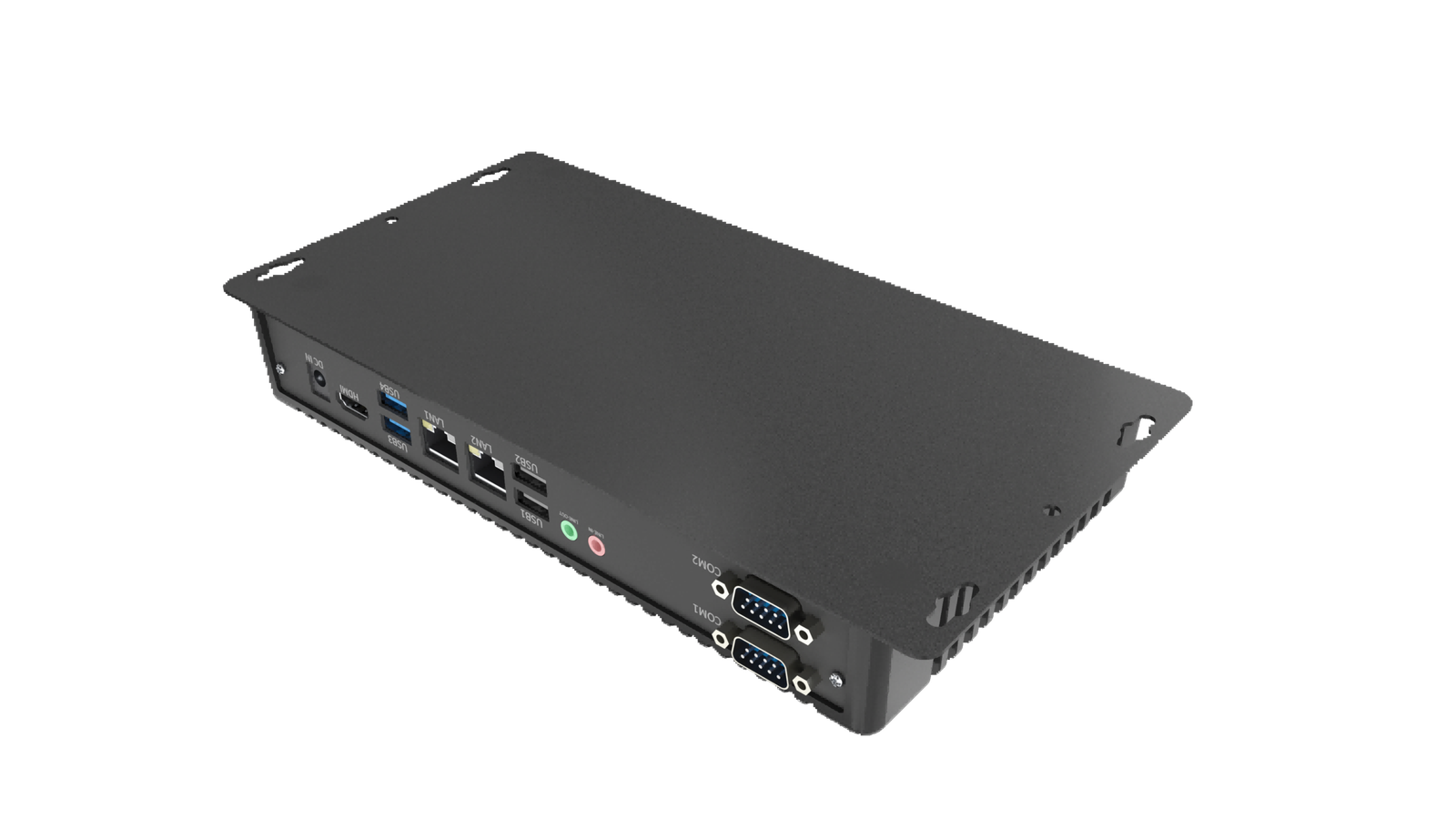

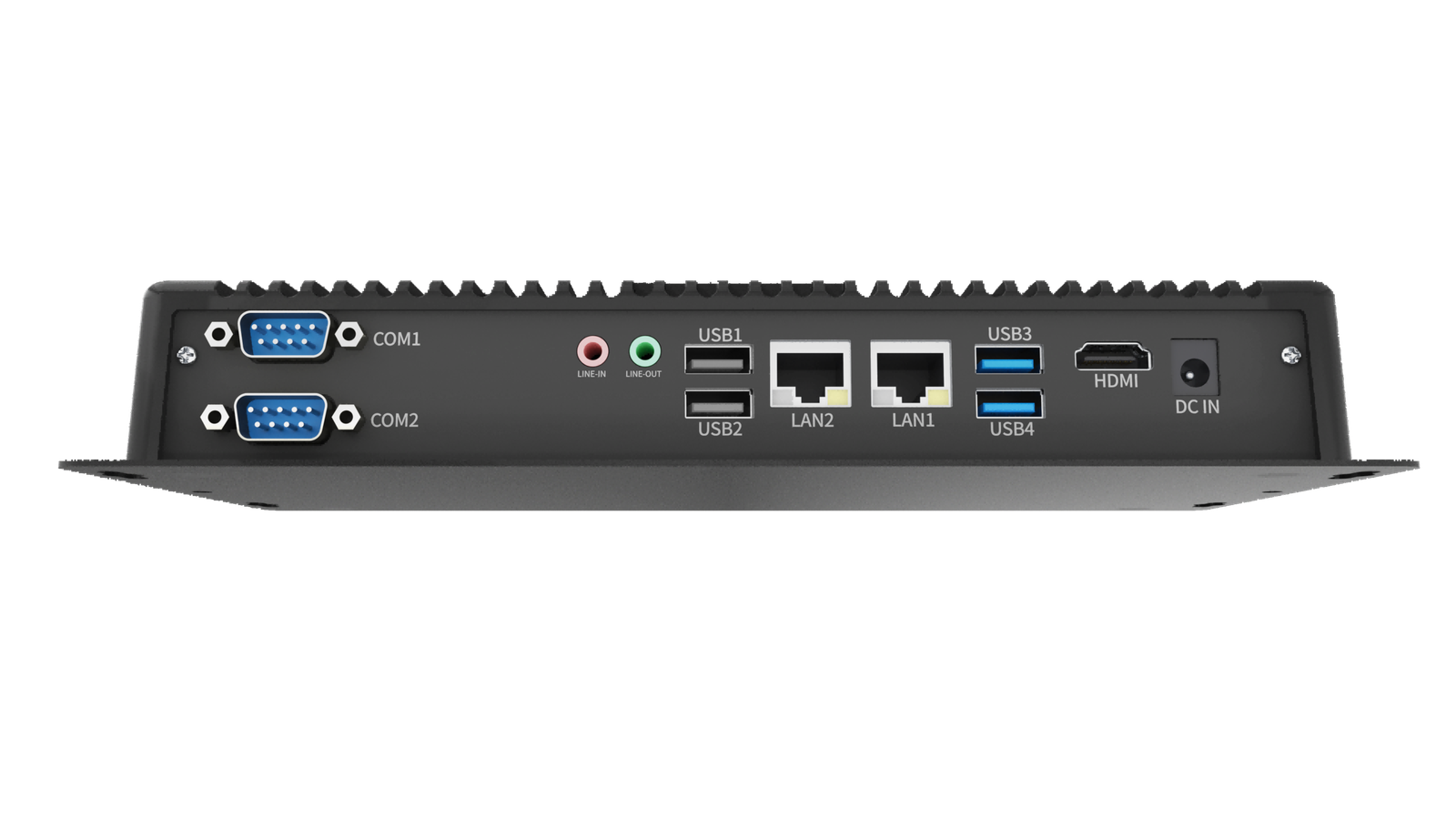

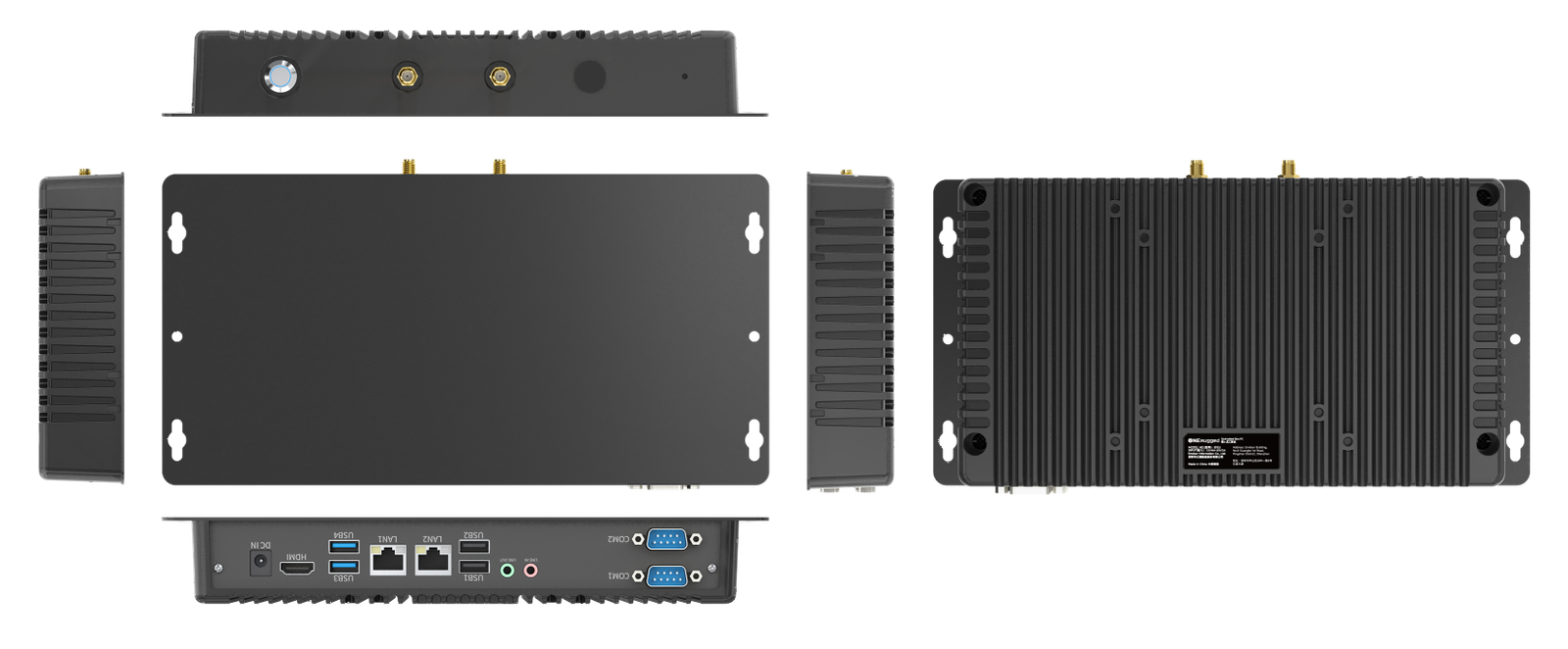

Comprehensive I/O, Plug & Play
Comprehensive industrial I/O enables direct integration with industrial peripherals, sensors, displays, and network equipment without additional expansion cards.
2 × RS232Serial Communication
2 × RJ45Gigabit Ethernet
2 × USB 2.0Peripheral Connectivity
2 × USB 3.0High-Speed Data Transfer
HDMILine In / OutDC InputDual LANPlug & Play
Uninterrupted Connectivity

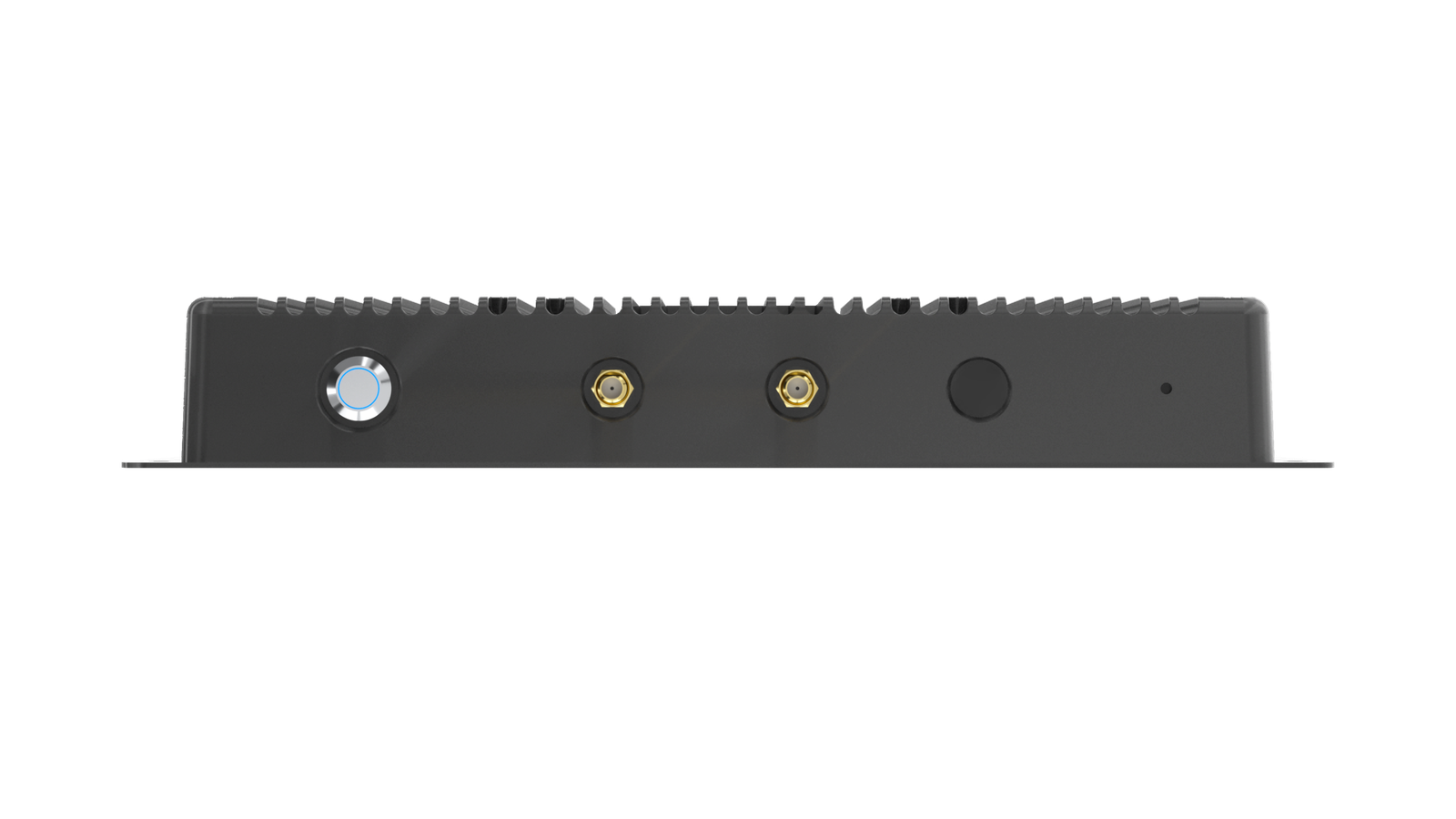

Standard Wi-Fi 5 and Bluetooth 5.1, with an optional 4G module and enhanced triple-antenna design, help maintain stable wireless connections even in complex industrial environments.
2.4 GHz / 5 GHzDual-Band Wireless Connectivity
433 MbpsMax Theoretical Speed
Wi-Fi 5Bluetooth 5.1Optional 4GTriple-Antenna DesignStable Industrial Connectivity
Built for Harsh Environments
Wide-temperature and wide-voltage operation, combined with strong EMI immunity and multi-layer electrical protection, enables the B10J to maintain reliable 24/7 operation in demanding industrial environments.
-4°F to 140°FOperating Temperature
12–24 V DCWide-Voltage Input
ESD ProtectionElectrostatic Protection
Surge ProtectionEOS Protection Supported
OVPOver-Voltage Protection
EMI ImmunityIndustrial Electrical Reliability
24/7 Continuous OperationDesigned for long-term industrial deployment

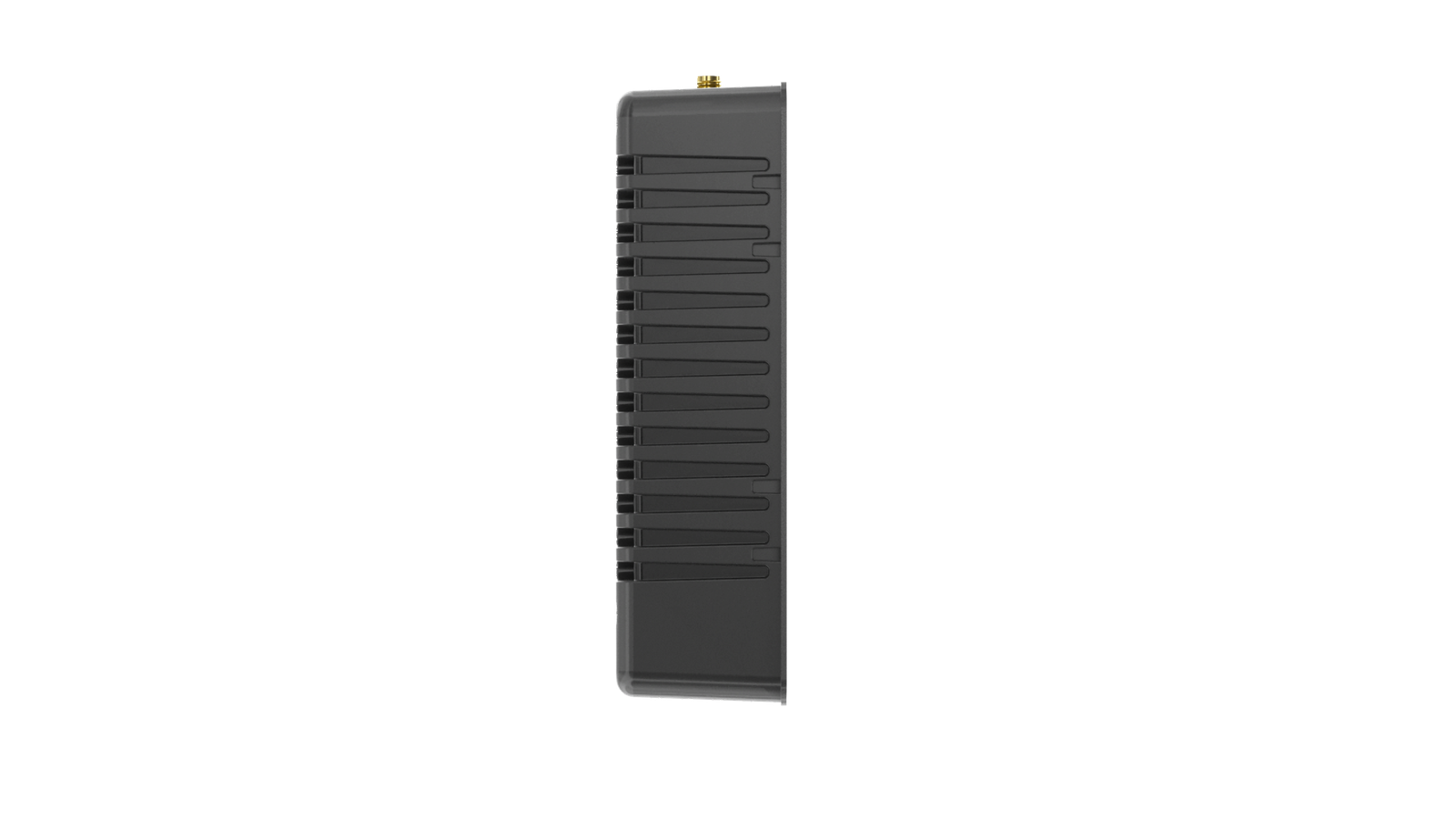

Compact, Flexible Deployment

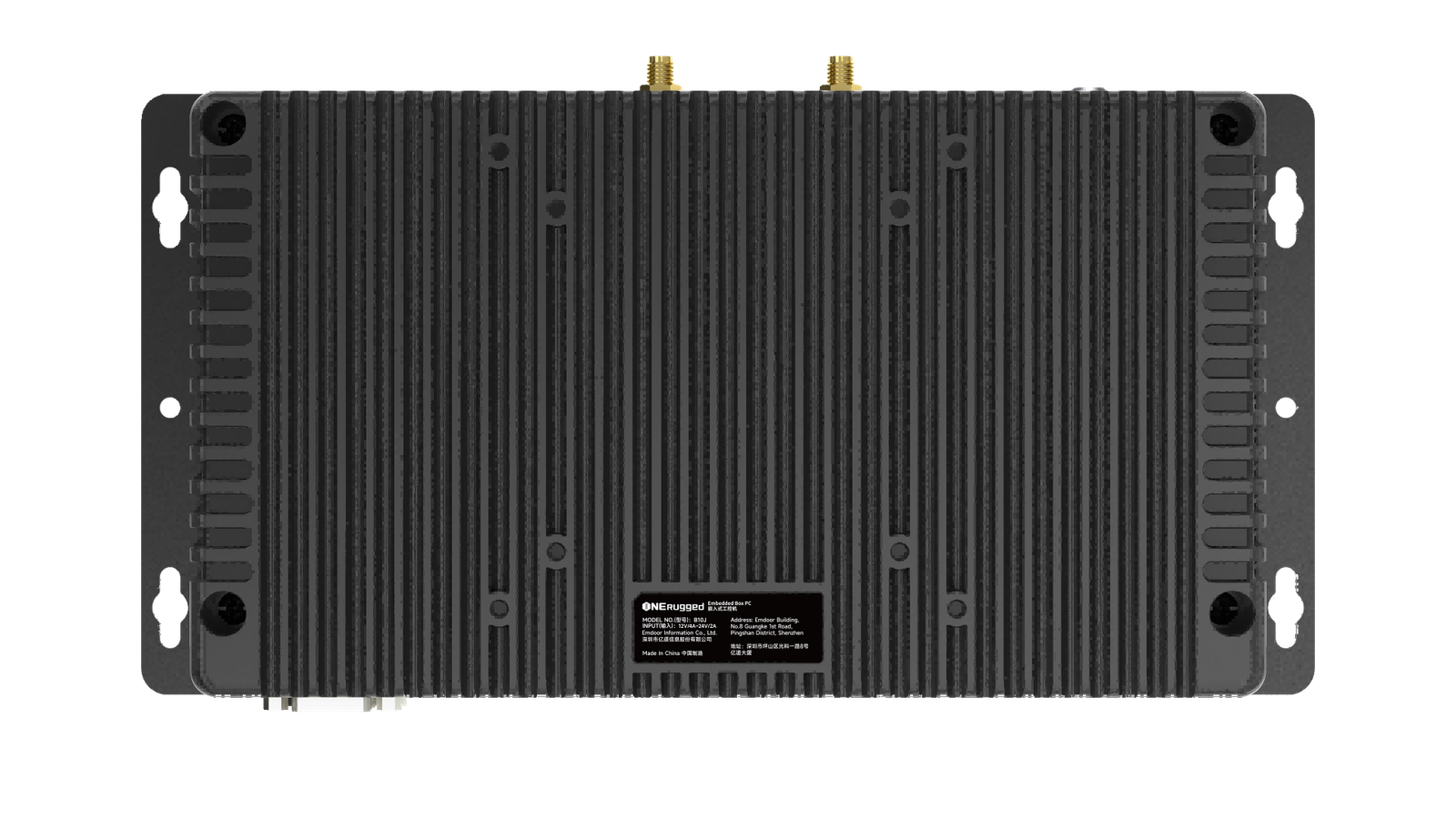

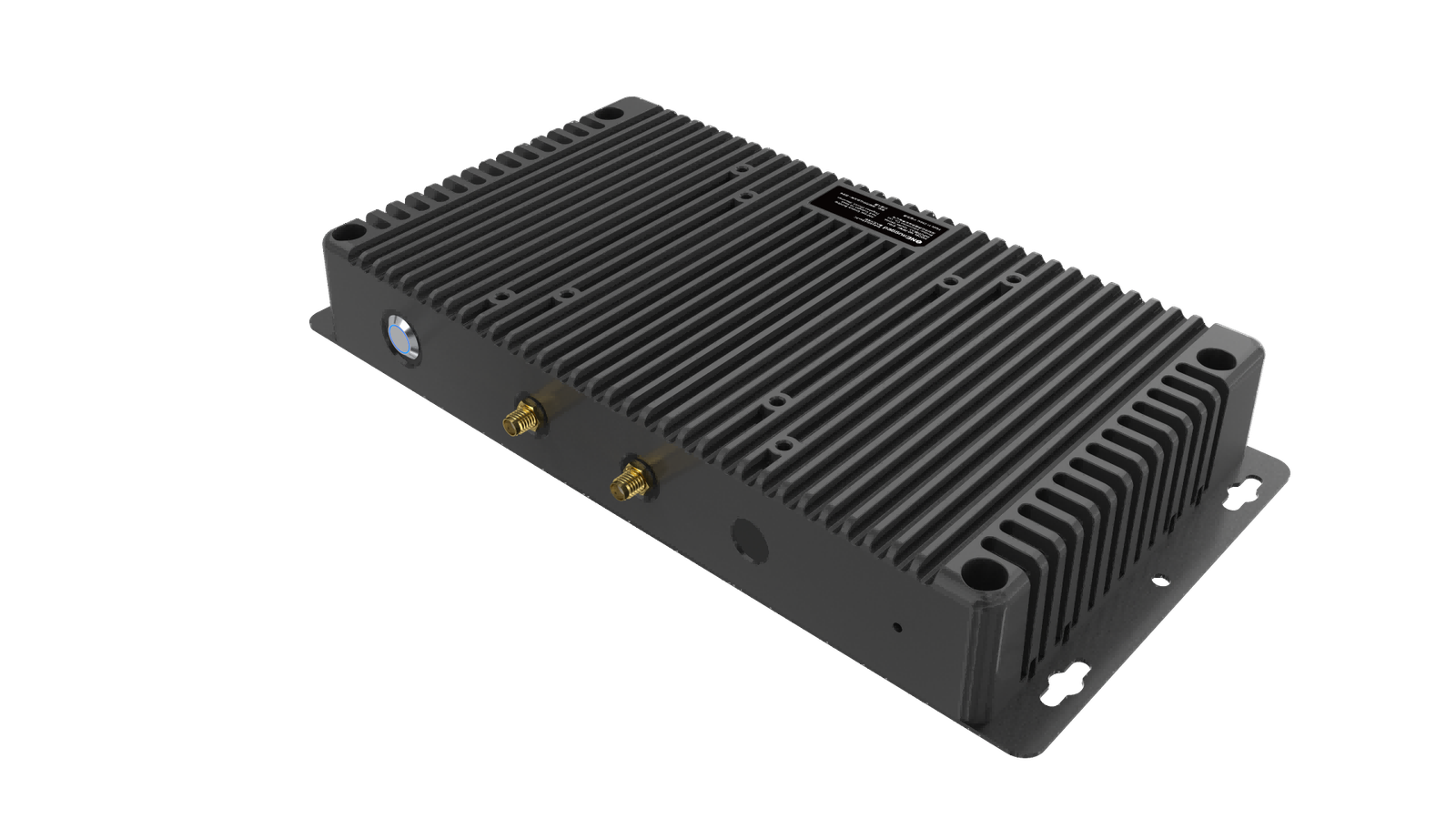

The fully enclosed fanless chassis helps resist dust and vibration, while flexible mounting options support embedded, wall-mounted, and desktop deployment for fast integration into industrial environments.
Embedded MountingEasy integration into industrial equipment

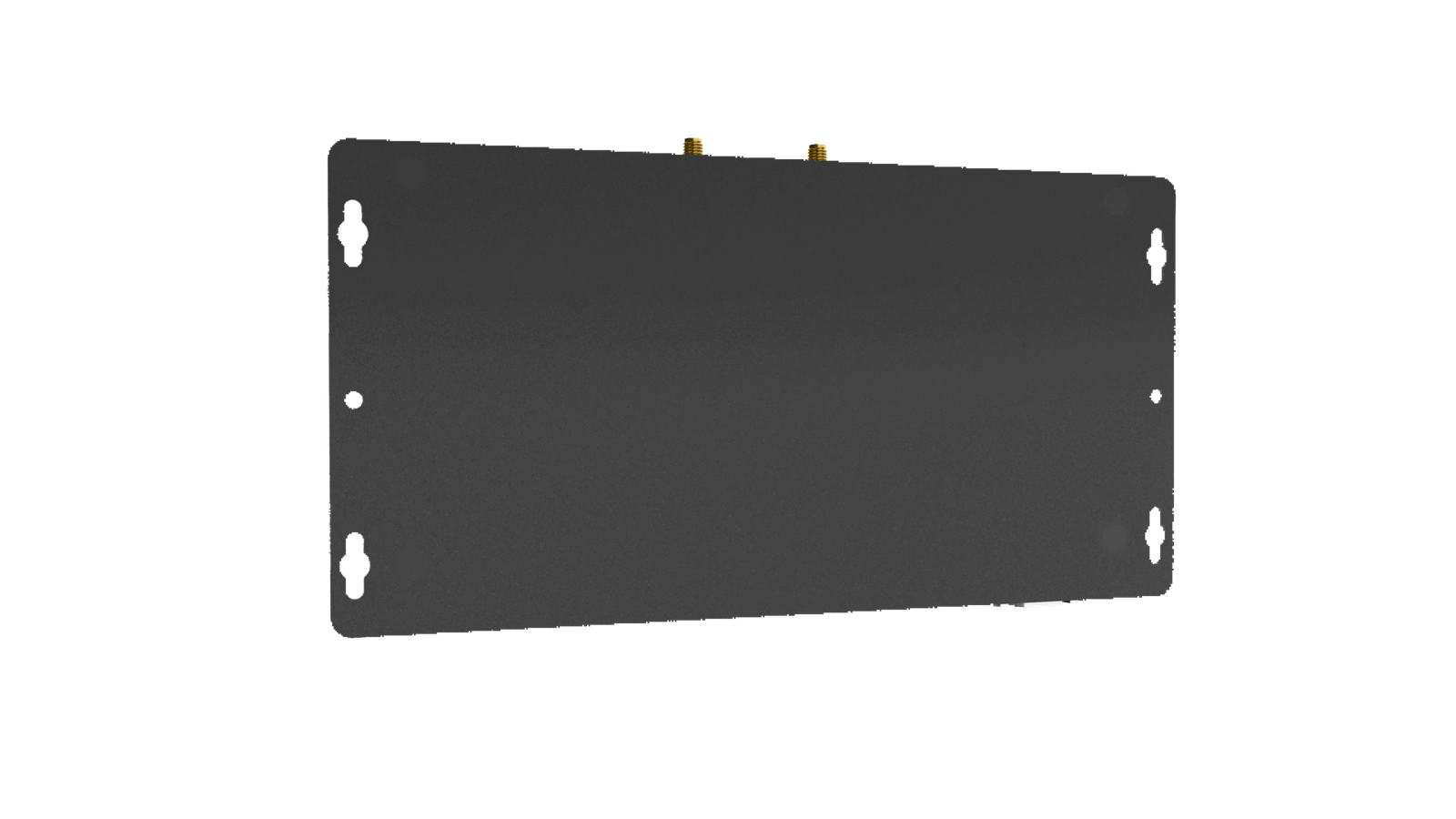

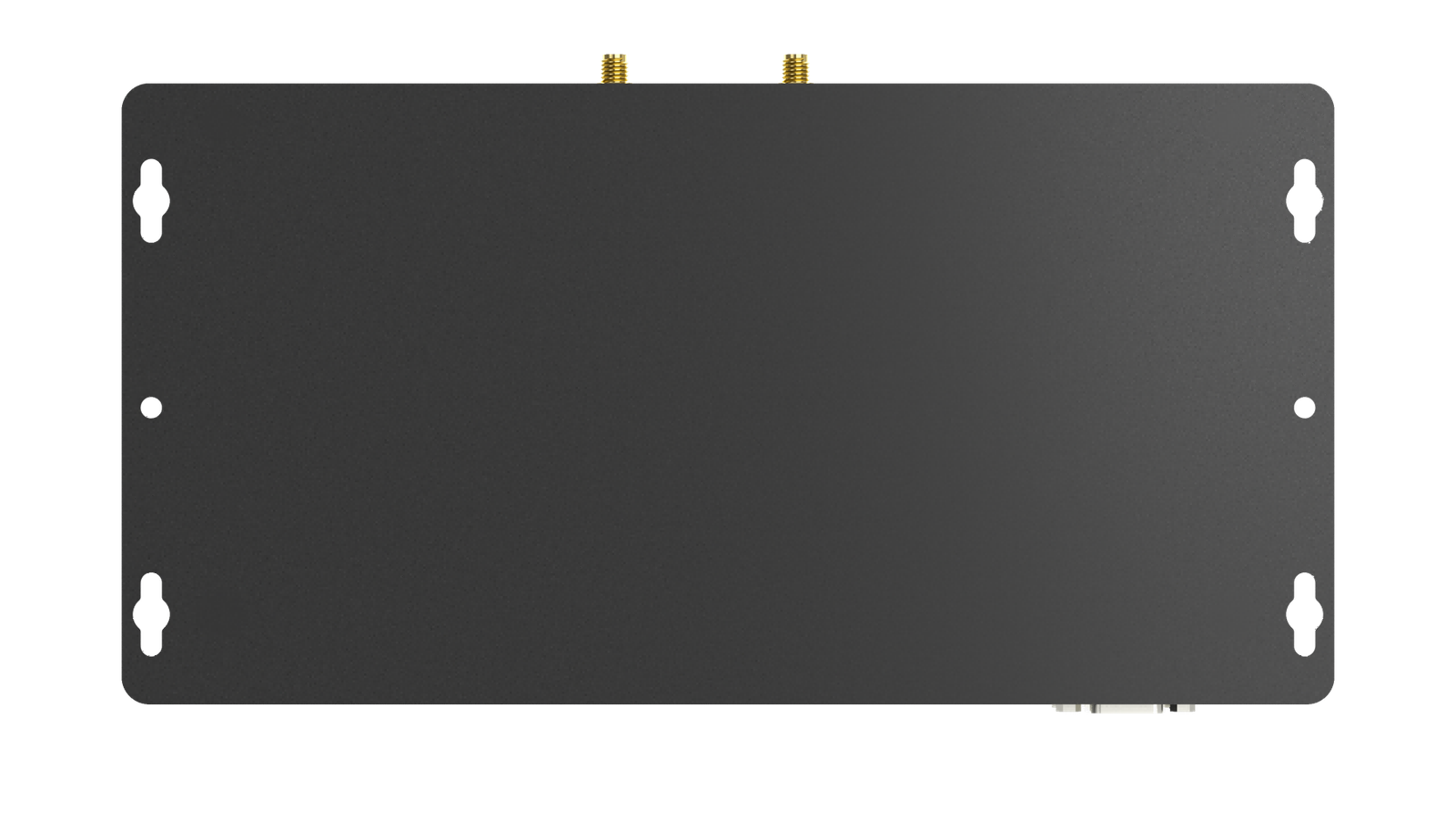

Wall MountingFlexible installation in limited spaces
Desktop MountingCompact deployment for workstations and control systems
4 Hook AssembliesMounting accessories included
VESA 75 × 75 mm / 100 × 100 mmSupports standardized VESA mounting for flexible industrial installation
One Platform, Versatile Applications
From production data collection and fleet management to self-service kiosks, the B10J delivers reliable computing, connectivity, and control capabilities for a wide range of industrial and commercial applications.
Production Data CollectionConnect equipment and production systems for real-time data acquisition, monitoring, and industrial process management.
Fleet ManagementSupport vehicle terminals, logistics equipment, and connected fleet systems with reliable computing and wireless communication.
Self-Service KioskA compact fanless computing platform for kiosks, terminals, access systems, and unattended service equipment.
EM-B10J / ACCESSORIES
Complete your industrial installation.
Choose the power, connectivity and mounting accessories listed for this model. Standard and optional items are shown separately to help you plan your installation.
Standard accessories
Optional accessories
Build your accessory kit with our team.Confirm connector type, power rating, mounting requirements and accessory availability for your selected configuration.
Discuss your EM-B10J configuration →
