Description

EMBEDDED BOX PC

B10A Embedded Box PC

Core Power. Always On.

A compact embedded computing platform engineered for stable industrial operation, flexible system integration, and reliable deployment across demanding embedded applications.

Intel® Core™ i5-1235UFanless DesignRich Industrial I/O24/7 Operation

B10A Embedded Box PC for industrial embedded computing

Key Highlights

Built for demanding industrial computing, the B10A combines Intel® Core™ i5-1235U performance, 16 GB memory, rich industrial I/O, advanced wireless connectivity, and a rugged fanless design for reliable 24/7 operation.

Intel® Core™ i5-1235UProcessor

16 GB RAMSystem Memory

128 GBInternal Storage

24/7Continuous Operation

Rich Industrial I/OFanless Rugged DesignWi-Fi 6Bluetooth 5.1Optional 4G

Core Computing, Secured Stability

Powered by the Intel® Core™ i5-1235U processor with an onboard TPM 2.0 security chip, the B10A delivers reliable performance for demanding industrial workloads while ensuring hardware-level data protection.

Intel® Alder LakePlatform

10 / 12Cores / Threads

Up to 4.4 GHzMax Turbo Frequency

TPM 2.0Hardware-Level Security

Windows 11Ubuntu OptionalIndustrial WorkloadsSecured Stability

B10A Embedded Box PC with Intel Core i5-1235U processor for secured industrial computing

B10A Embedded Box PC with 16 GB LPDDR4x memory and expandable SSD storage

Flexible Expansion, Future-Ready

The B10A comes standard with 16 GB LPDDR4x RAM and a 128 GB SSD, plus an M.2 SATA/PCIe slot supporting storage expansion up to 512 GB to grow with your application.

16 GB LPDDR4xSystem Memory

128 GB SSDStandard Storage

Up to 512 GB SSDM.2 SATA / PCIe Storage Expansion

128 GB SSD256 GB Optional512 GB OptionalM.2 SATA / PCIe

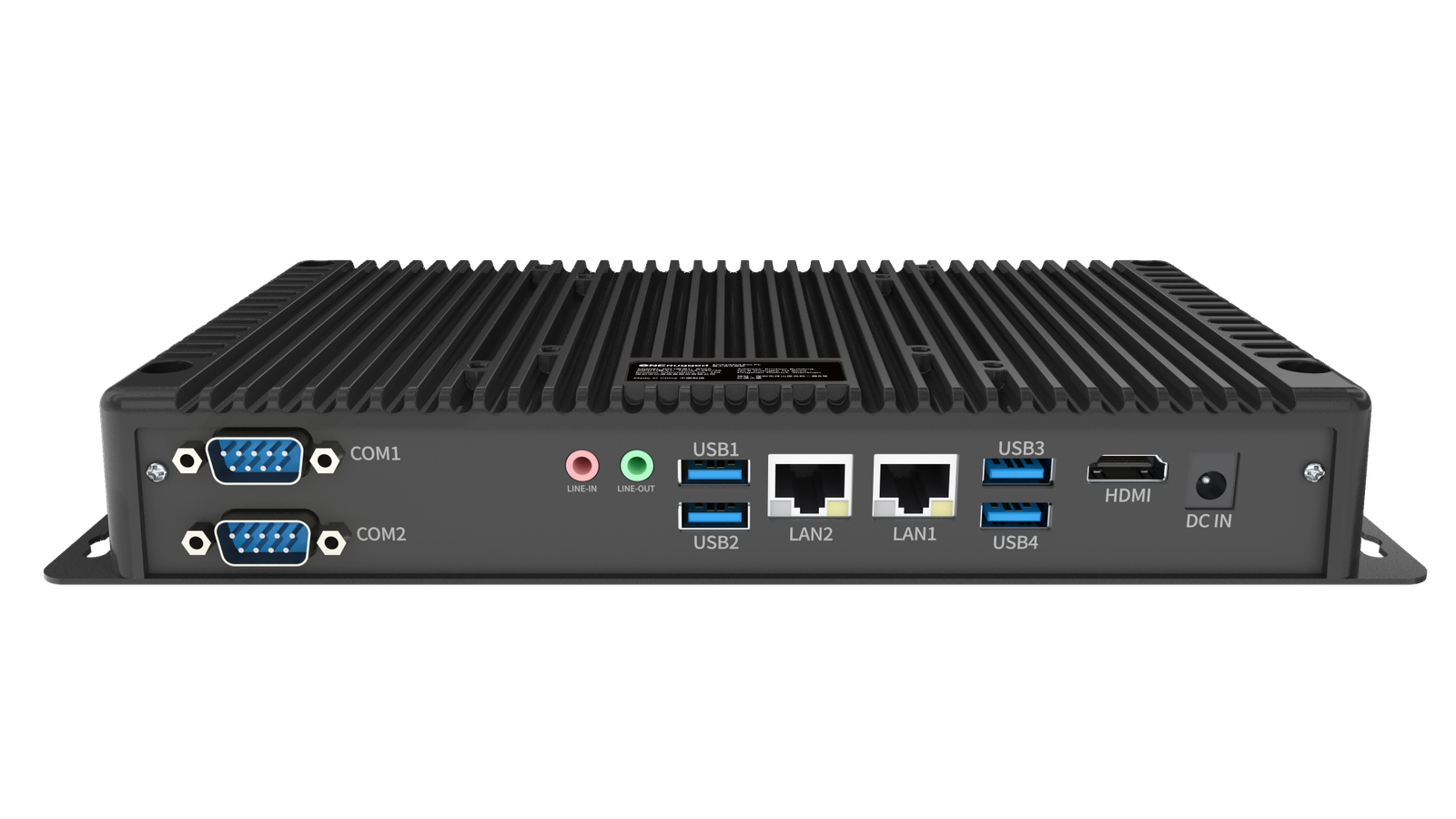

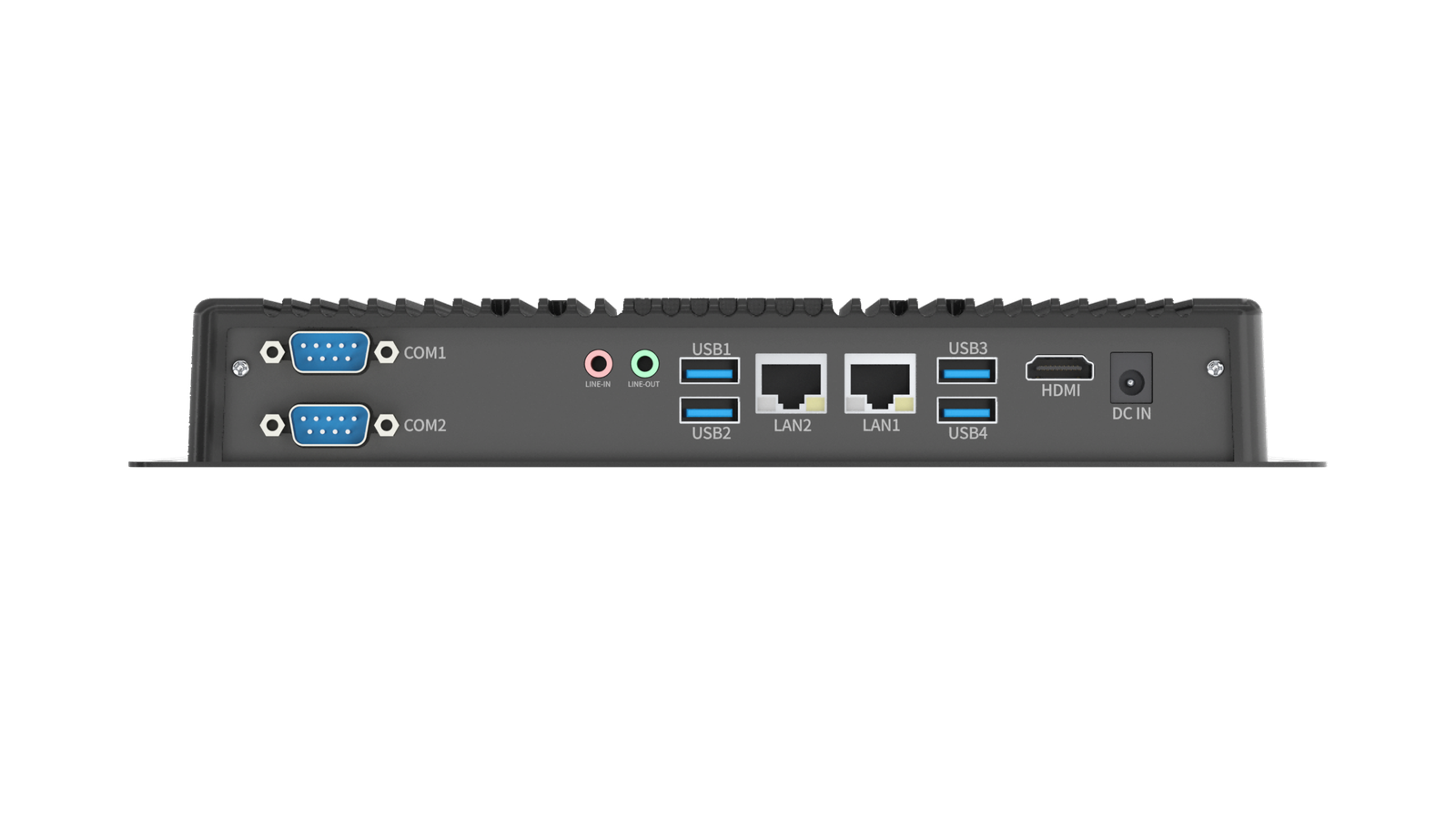

Comprehensive I/O, Plug & Play

Rich industrial interfaces enable the B10A to connect directly with controllers, sensors, displays, network equipment, and other industrial peripherals, simplifying system integration without additional expansion cards.

2 × RS232Serial Communication

4 × USB 3.0High-Speed Data Transfer

2 × RJ45Gigabit Ethernet

HDMIDisplay Output

Line In / OutDC InputDual LANRich Industrial I/OPlug & Play

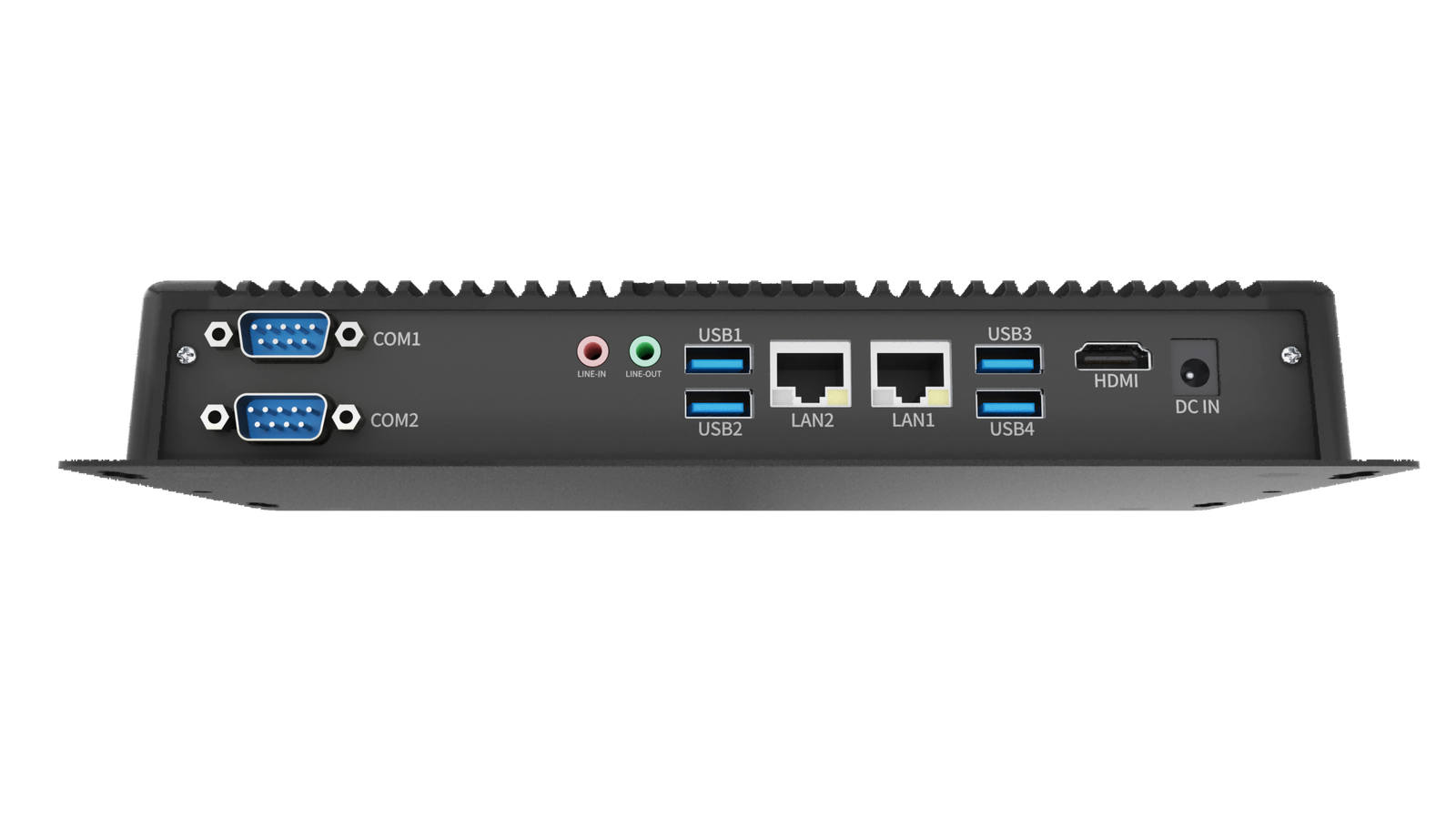

B10A Embedded Box PC industrial I O with RS232 USB 3.0 dual RJ45 and HDMI

B10A Embedded Box PC with Wi-Fi 6 Bluetooth 5.1 and optional 4G connectivity

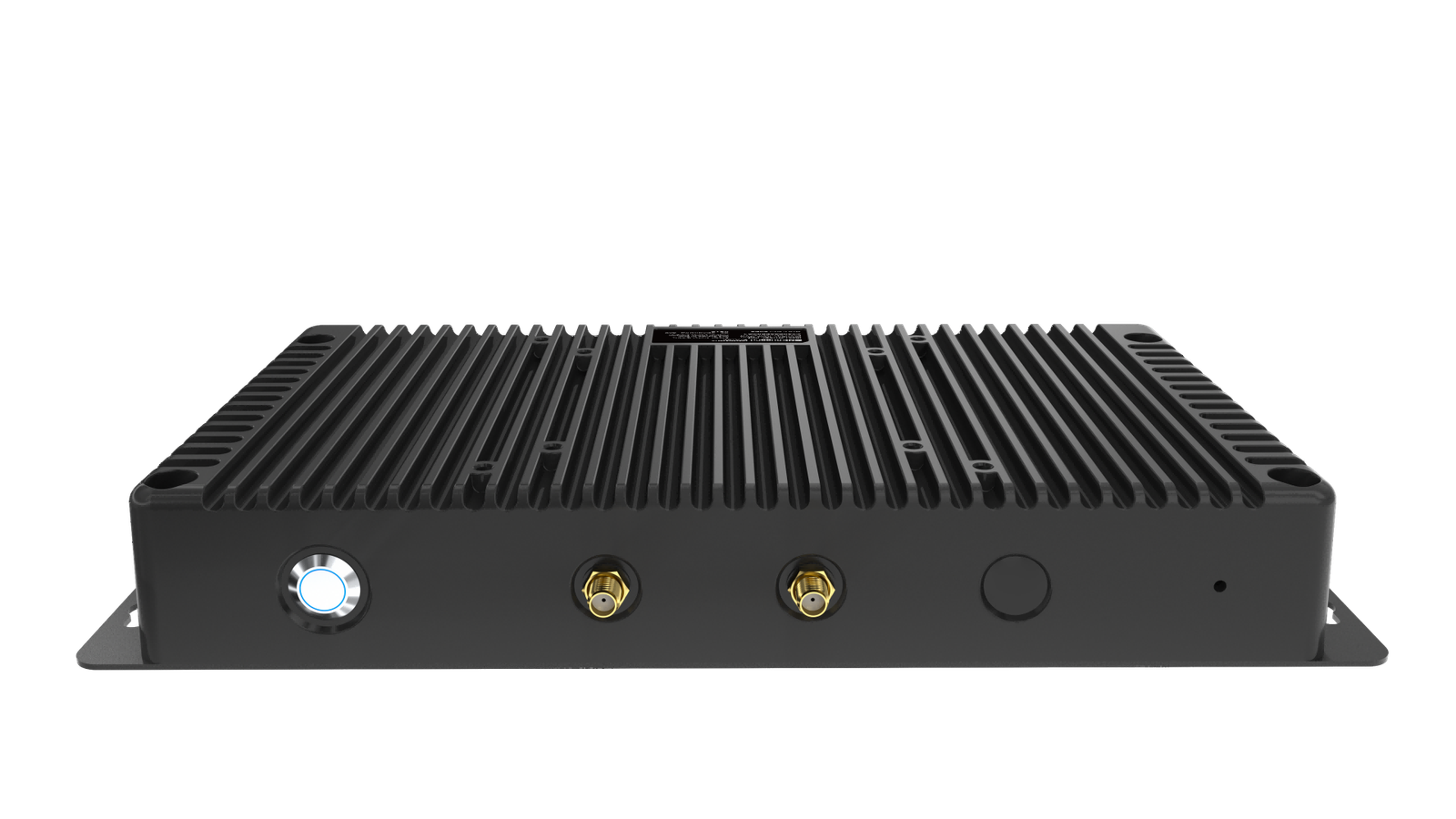

Uninterrupted Connectivity

Standard Wi-Fi 6 and Bluetooth 5.1, combined with optional 4G and an enhanced triple-antenna design, deliver fast, stable, and low-latency wireless connectivity for demanding industrial environments.

2.4 GbpsMax Theoretical Speed

+40%Throughput vs. Wi-Fi 5

-75%Latency vs. Wi-Fi 5

Wi-Fi 6Bluetooth 5.1Optional 4GTriple-Antenna DesignLow-Latency Connectivity

Built for Harsh Environments

Wide-temperature and wide-voltage operation, combined with strong EMI immunity and multi-layer electrical protection, enables the B10A to maintain reliable 24/7 operation in demanding industrial environments.

-4°F to 140°FOperating Temperature

12–24 V DCWide-Voltage Input

ESD ProtectionElectrostatic Protection

Surge ProtectionEOS Protection Supported

OVPOver-Voltage Protection

EMI ImmunityIndustrial Electrical Reliability

24/7 Continuous OperationDesigned for stable long-term industrial deployment

B10A Embedded Box PC built for harsh industrial environments with wide temperature and voltage operation

B10A Embedded Box PC flexible deployment with wall mounting and VESA mount

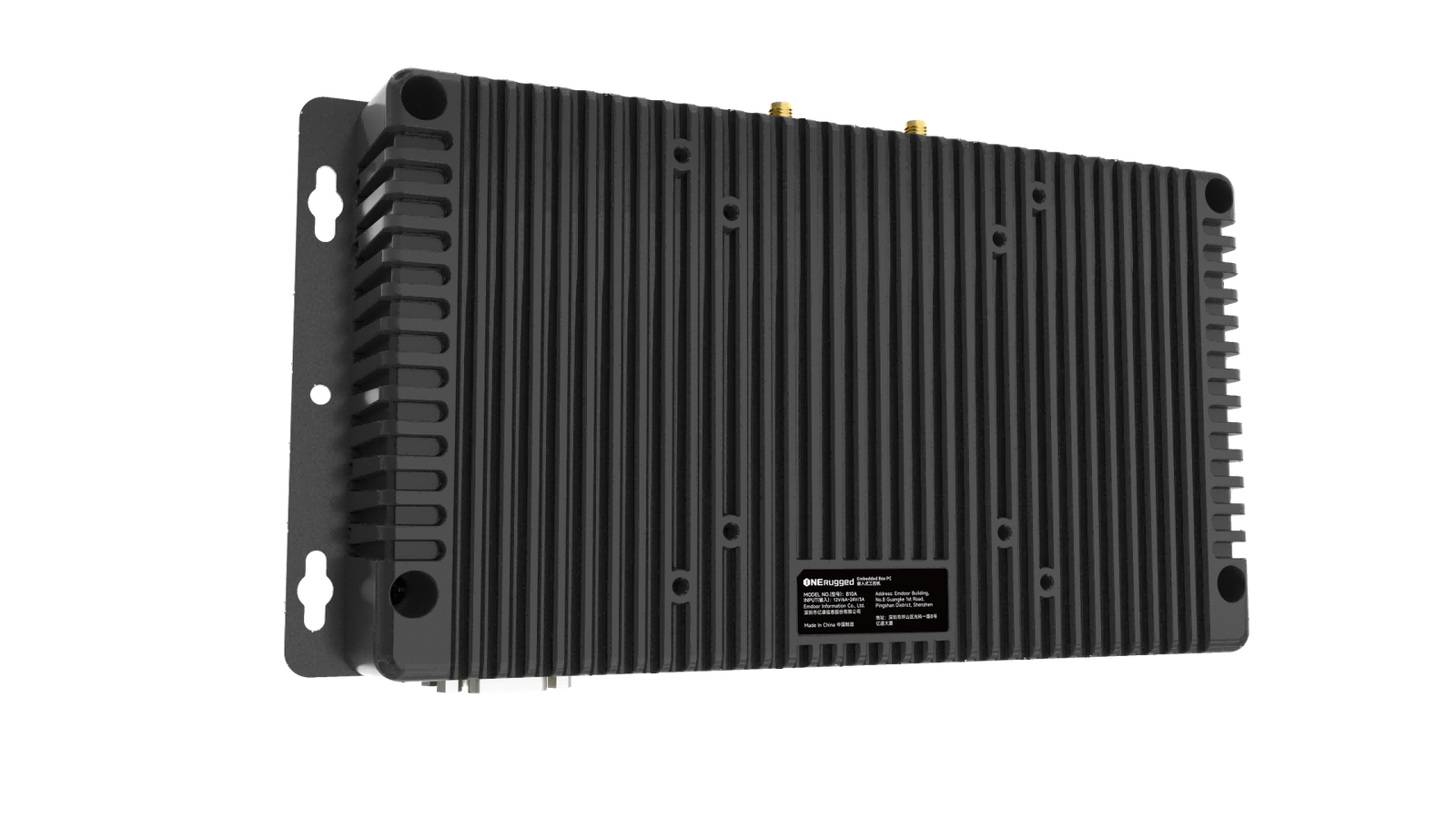

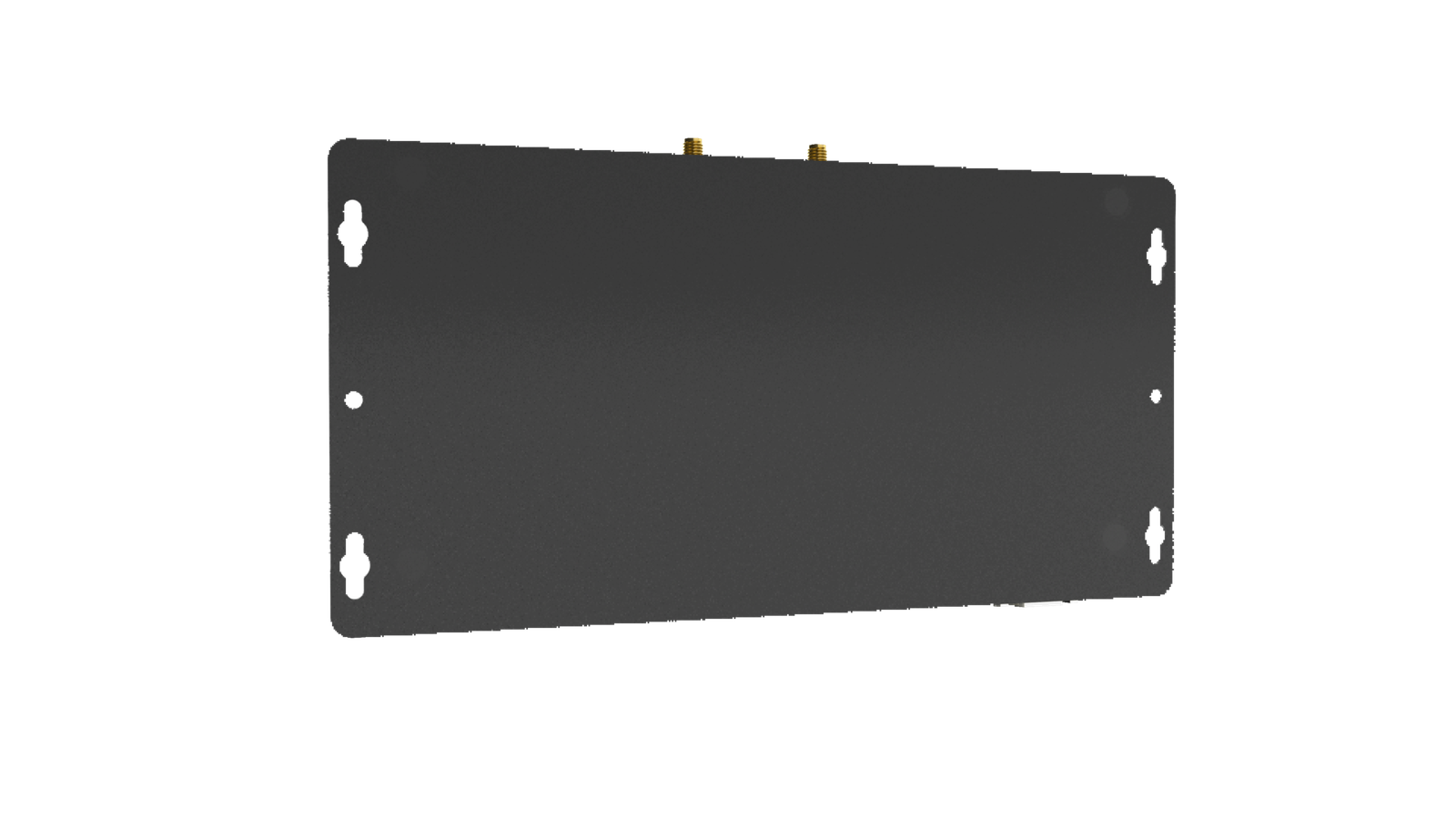

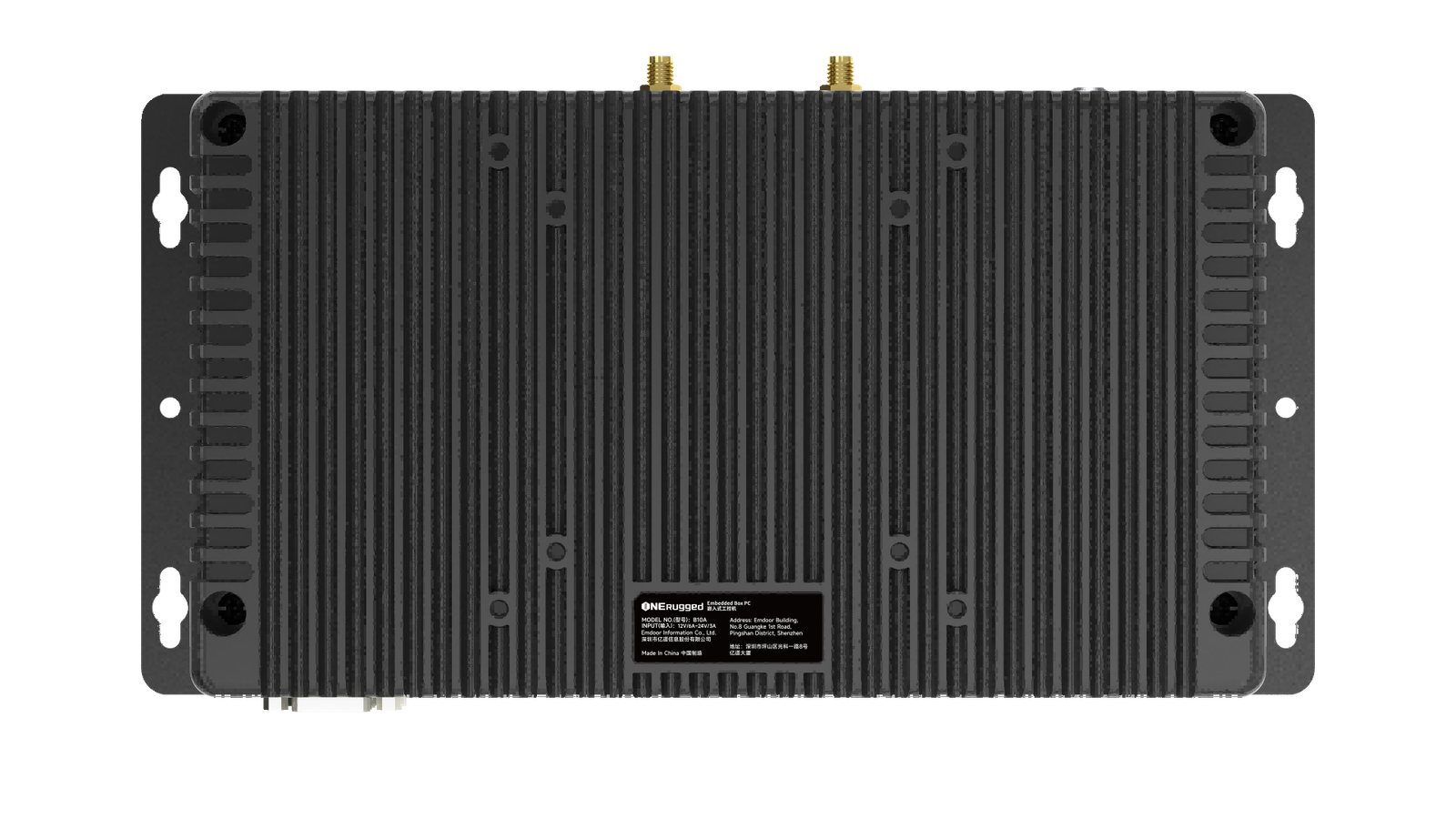

Compact, Flexible Deployment

The fully enclosed fanless chassis helps resist dust and vibration, while flexible mounting options support embedded, wall-mounted, and desktop deployment for fast integration into industrial environments.

Embedded MountingEasy integration into industrial equipment

Wall MountingFlexible installation in limited spaces

Desktop MountingCompact deployment for workstations and control systems

4 Hook AssembliesMounting accessories included

VESA 75 × 75 mm / 100 × 100 mmSupports standardized VESA mounting for flexible industrial installation

One Platform, Versatile Applications

From production-line automation and industrial equipment control to intelligent security systems, the B10A delivers the computing performance, connectivity, and reliability required across demanding industrial applications.

Factory AutomationSupports production-line monitoring, machine control, data acquisition, and automated manufacturing systems.

Intelligent Security HubProvides stable computing for surveillance, access control, monitoring platforms, and intelligent security applications.

Industrial Equipment ControlIntegrates with industrial machinery and control systems for reliable equipment management and continuous operation.

B10A Embedded Box PC applications for factory automation intelligent security and industrial equipment control

Additional information

Model	B10A
Product type	Embedded Box PC
Dimensions	264 mm (L) × 135.2 mm (W) × 37.2 mm (H)
Machine weight	1200 g
Protection level	Front panel IP65 compliant
ESD protection	±8 kV contact discharge, ±15 kV air discharge
Audio	Optional 2 W speaker
Keyboard & Input	Power key ×1
Mounting method	Panel, wall, and desktop mounting
Power adapter	AC 100–240 V, 50/60 Hz, 64.98 W (19 V/3.42 A)
RTC battery	Separated 3 V/220 mAh RTC
2G/3G/4G/5G	Optional 4G LTE
WIFI	Intel® Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth® 5.1
4G bands	LTE-FDD: B1/3/5/7/8/20; LTE-TDD: B40; WCDMA: B1/5/8; GSM: 900/1800
4G coverage	China (China Unicom, China Telecom, China Mobile), Europe, Middle East, Africa, Taiwan, Japan
Antenna	SMA ×2; optional SMA ×3
CPU	Intel® Core™ i5-1235U (12 MB cache, up to 4.4 GHz, 10 cores, 12 threads, TDP 15 W)
GPU	Intel® Iris® Xe Graphics eligible
Operating system	Windows 11 Pro; optional Windows 11 Home/IoT
Memory	16 GB LPDDR4x on board
Storage capacity	128 GB SATA SSD; optional 256 GB/512 GB PCIe SSD
Security	Integrated TPM 2.0
SIM card	SIM card ×1
USB	USB 3.0 (Type-A) ×4
Audio interface	3.5 mm audio jack ×2
