EM-V12R 10.1 Inch Android+Linux Vehicle PC

4.5 / 150 Reviews

Category

Overview

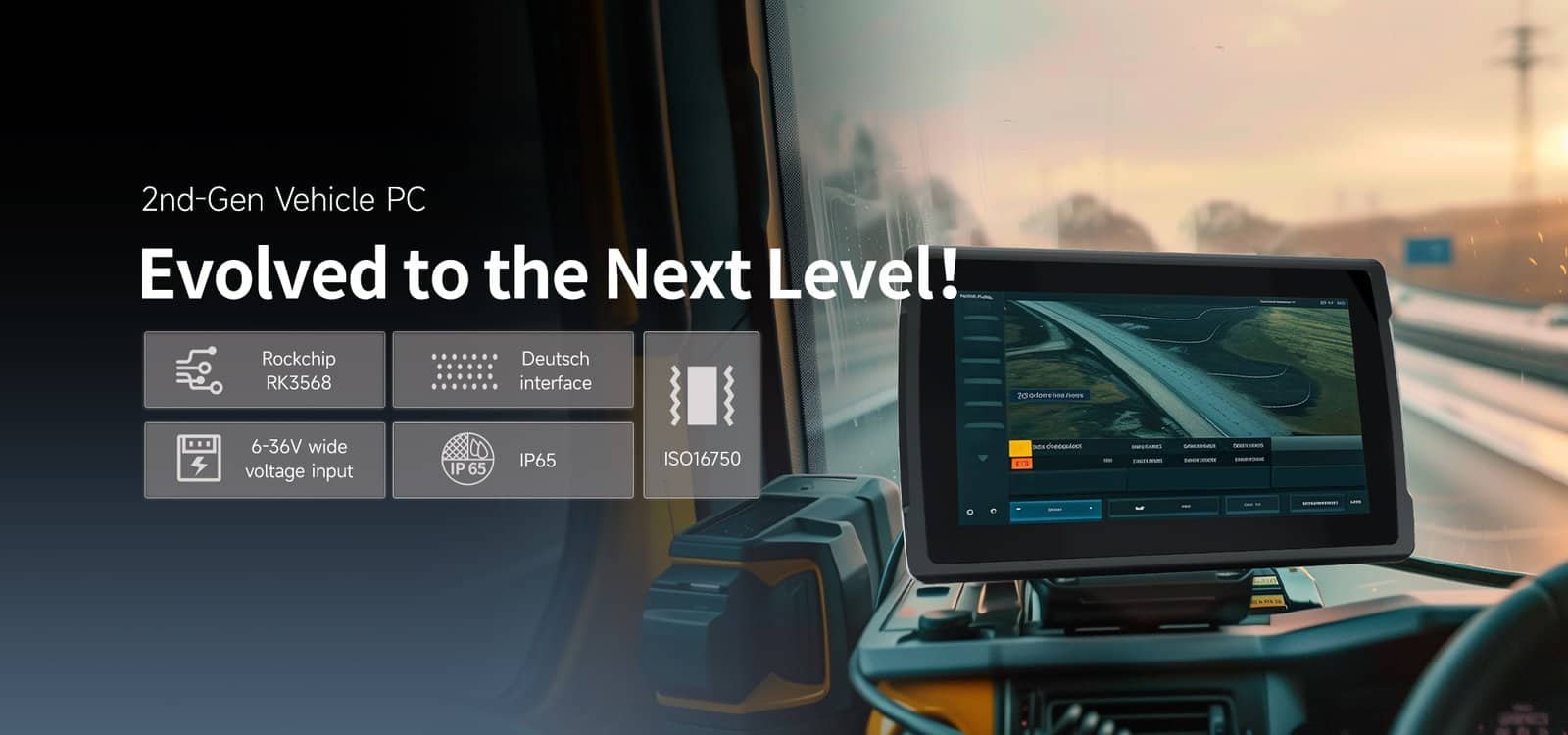

Emdoor Vehicle PC V12R features a RK3568 Processor, Android 12+Linux Dual-System, WiFi 5, BT 5.0, optional 4G, GPS/GLONASS/Beidou, various interfaces, 6V-36V input, and IP67 rating.
  • CPU: RK3568
  • GPU: Mali-G52-2EE
  • Operating system: Android 12 + Linux Dual-System
  • Resolution: 800*1280
  • Screen size: 10.1 inches

Description

Advanced Performance and Flexibility

The Emdoor Vehicle PC V12R is engineered to provide top-notch functionality for modern automotive or industrial applications. Powered by a RK3568 Processor and integrated GPU Mali-G52-2EE, this 10.1-inch Android Linux Vehicle PC ensures seamless multitasking and graphic performance. Its dual-system compatibility with Android 12 and Linux promises unparalleled versatility, making it a standout device for diverse IoT or connected-car environments.

Enhanced Connectivity and Navigation

Stay connected wherever your journey takes you with WiFi 5, Bluetooth 5.0, and optional 4G LTE for high-speed internet access. The V12R also supports GPS/GLONASS/Beidou navigation systems, providing reliable and precise location guidance. These robust features ensure you’re always in touch with the world around you, whether you’re on the road or managing fleet and logistics operations.

Durability and Tailored Interface Options

Built to endure tough conditions, Emdoor V12R comes with an IP67 rating, offering complete protection against dust and water immersion. Its wide 6V-36V input voltage range and range of interfaces cater to various industrial requirements, while the screen resolution of 800×1280 provides clear visuals for professional tasks. If adaptability, durability, and reliability are your priorities, this vehicle PC delivers on every front.



Additional information

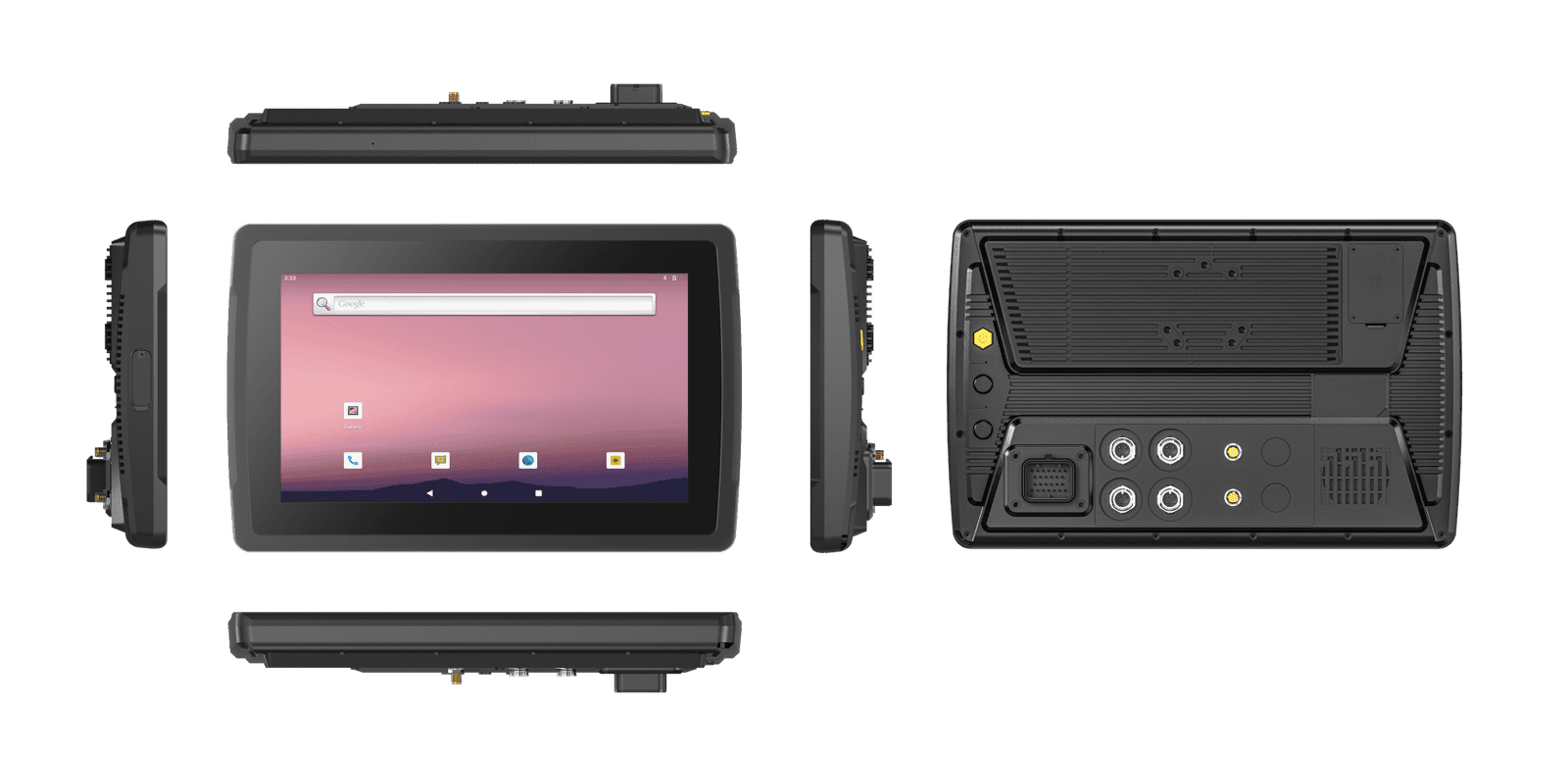

Dimensions

282*181*31mm

Machine weight

1150g

Machine color

Black

Display

10.1-inch MIPI HD 16:10, resolution 1280*800,700nits

Touch screen

5-Point Capacitive Screen

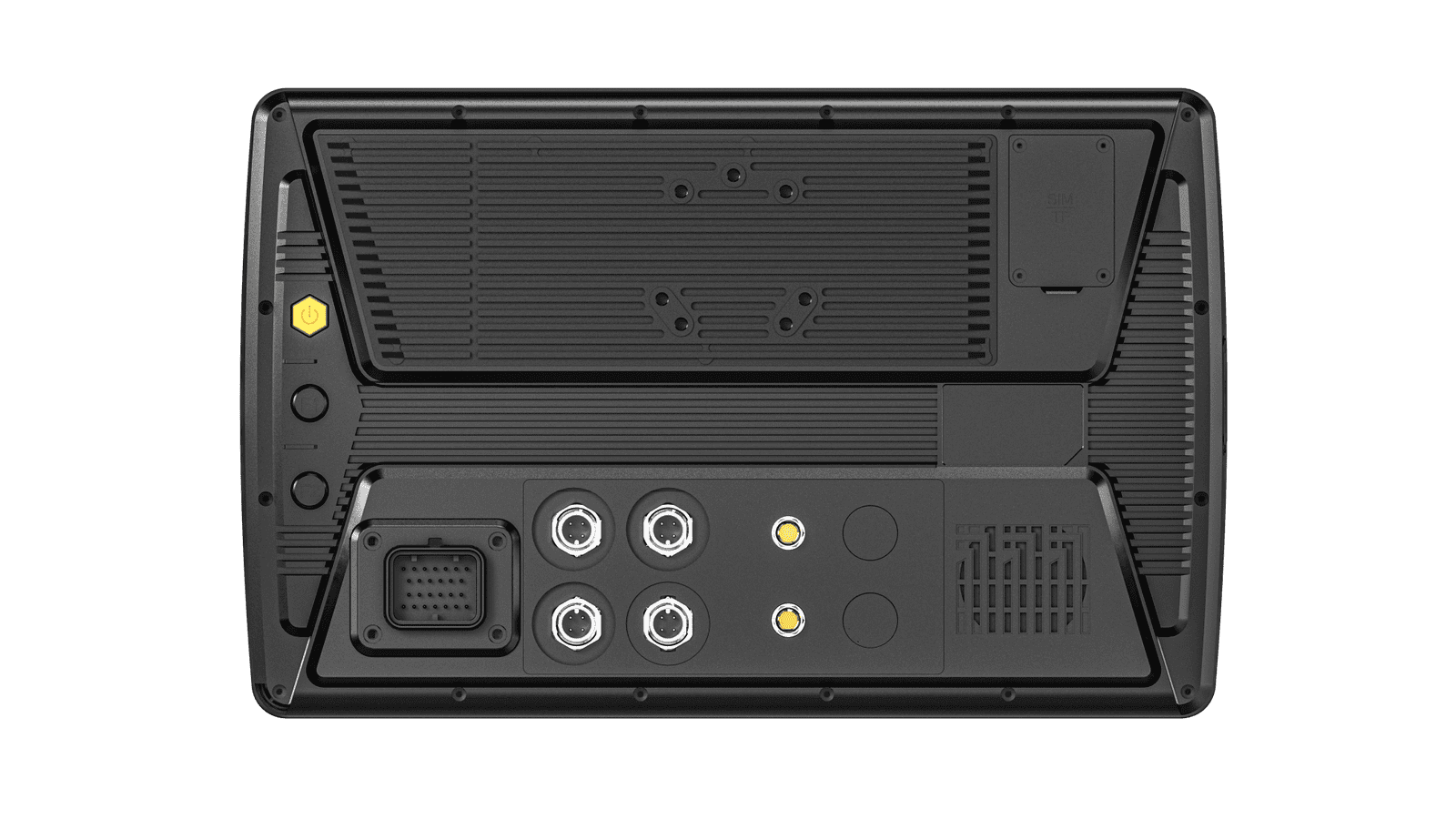

I/O Interface

SIM Card Slot: MICRO-SIM *1
TF Card Slot: MICRO-SD*1
Standard USB-A Port /Data Transfer:USB 2.0 *1, USB A Port,HOST Data Transfer
Video Input: AHD*4, GX12 4-Pin Connector*4
Antenna Interfaces(Optional): TNC*2, SMA*2

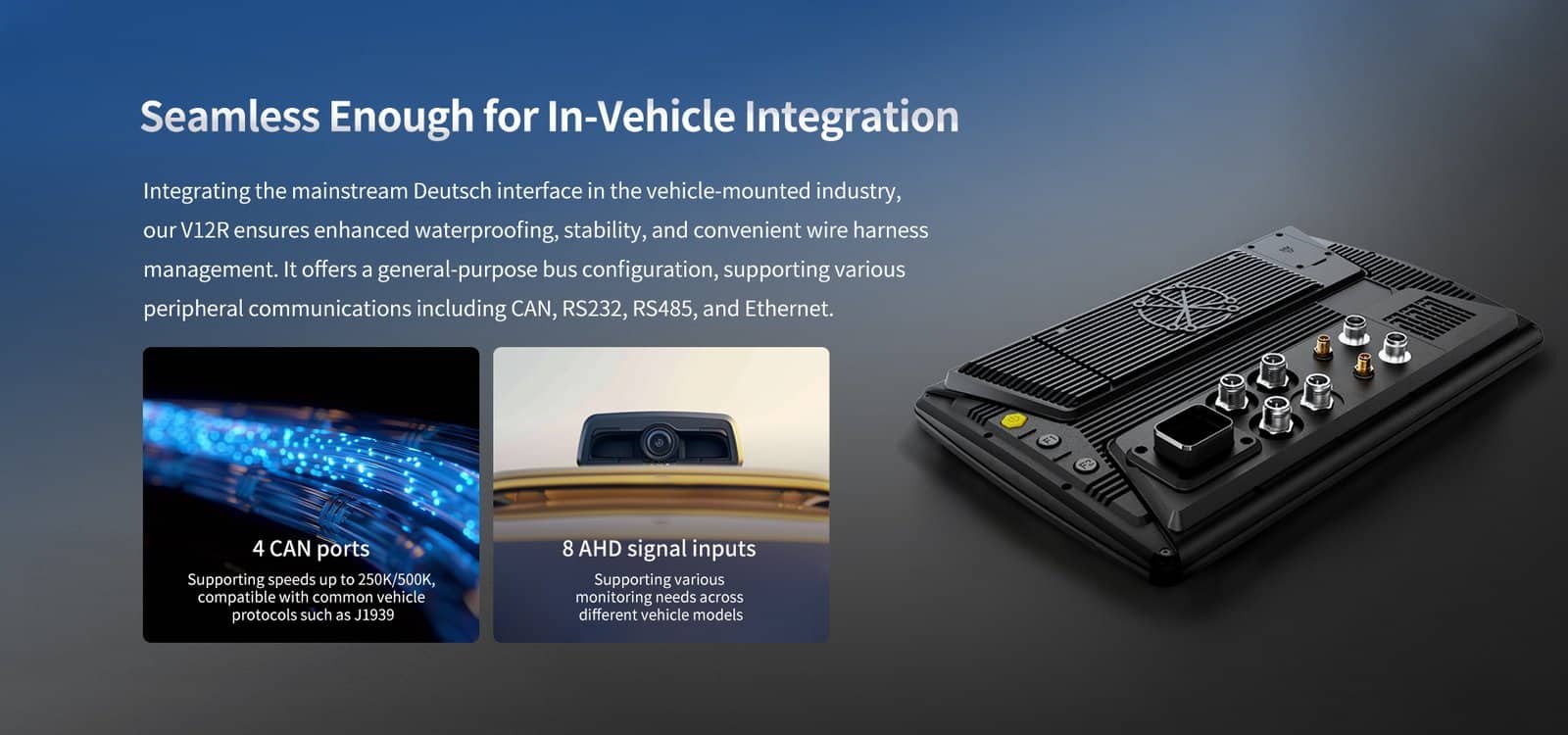

26-PIN Deutsch Interfaces (Optional inthe Solution)

WIFI

WIFI 802.11(aac)2.4G+5.0G(5.1/b/g/n/G+5.8G)
Dual-band WIFI

Bluetooth

BT 5.0

2G/3G/4G/5G

4G

GNSS

GPS,GLONASS,Beidou

CPU

RK3568

GPU

Mali-G52-2EE

Operating system

Android 12 + Linux Dual-System

Memory

4GB

Storage capacity

64GB

Battery

Built in 2032 RTC dry battery

NFC

No

1D

No

2D

No

Fingerprint

No

Operating temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity

95%, no condensation

Protection level

IP65 certified, MIL-STD-810H certified

Drop height

1.2m drop resistance
